Vt P

Previous Model No: UP

The VtP is a coverplate-type wall expansion joint system. It is designed to be integrated with finishes such as plasterboard, render, aluminium-panel, and others. VtP can be installed in walls or ceilings internally or externally. Where structural movement joints are designed into corners, obtuse or acute angles can be accommodated. The system has adequate seismic function. It has an optional PVC gland for external applications. VtP can be powder-coated to a colour option, or supplied in a stainless-steel finish.

Multi-directional Fire Rating Water Proof

Performance

  • Concealed fixings
  • Seismic movement
  • Colour range available

Standard Finish

Anodised

Length

3.6m

Cover Plates

Clear Anodised

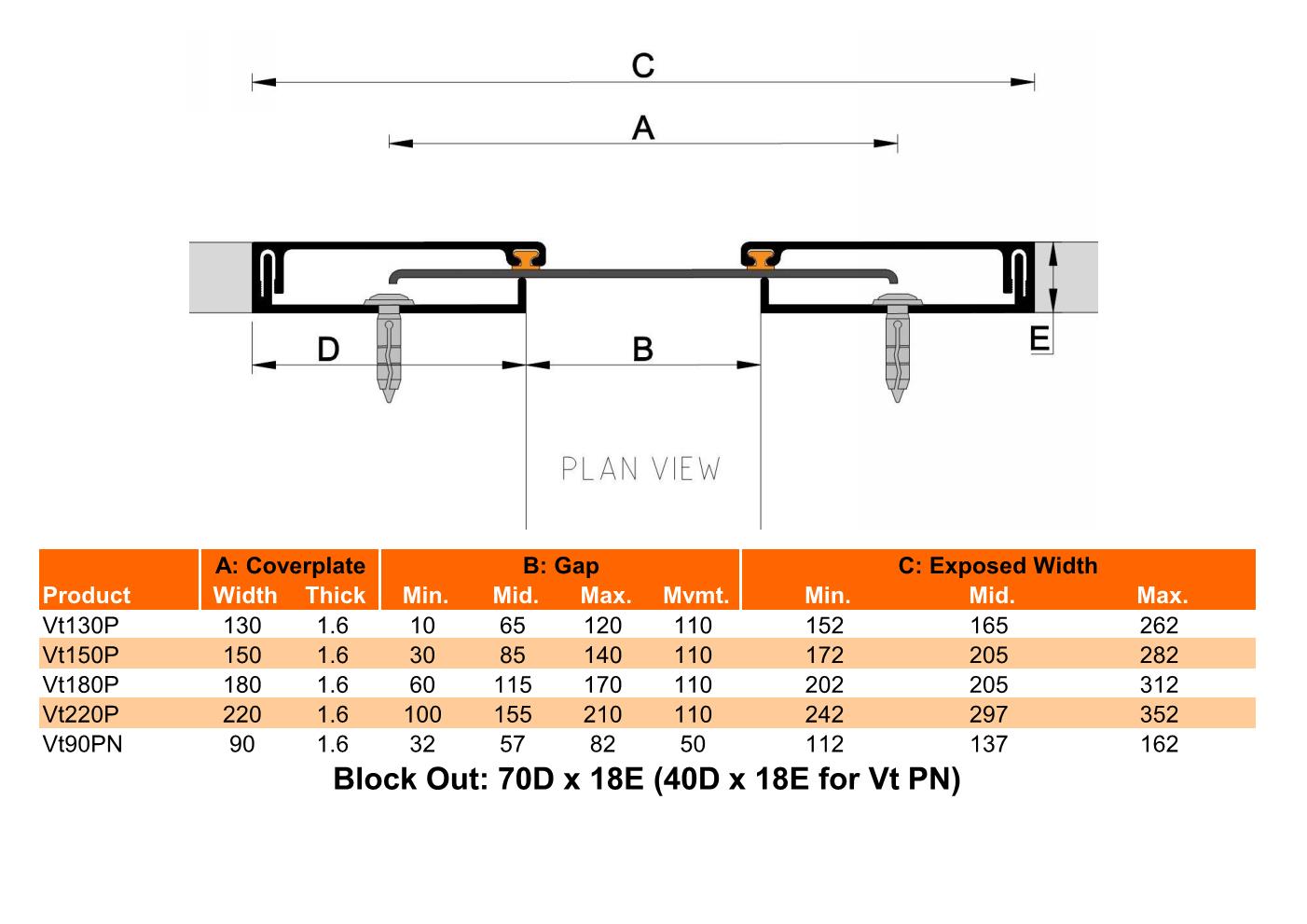

Cover Plate Options

Short Base System

Wide Base System

Vt90PN Vt130P
Vt110PN Vt150P
Vt130PN Vt180P
Vt150PN Vt220P
Vt300P

Wall to Corner System

Stainless Steel Short Base System

Vt65PC Vt90PNS
