Concealed Cover Dual Gasket Floor Expansion Joint
Si D
Concealed Cover Dual Gasket Seals. An architectural floor expansion joint system with a combination of recessed cover plate and thermoplastic seals. This seismic system is designed to house a range of floor-finishes. The seals and floor-finish provide a flush transition. Seals are purpose-designed with smooth ripples to accommodate more movement than other inferior designs. They are made from dual-durometer santoprene for use in areas where hygiene is imperative. SiD floor joint systems are prominently used in hospitals…but this type of system can be used for many applications such as apartments, public buildings (museums), retail centres, airport terminals and other commercial buildings.

Indoor and Outdoor

Trolley Safe

Multi Directional

Seismic

Anti-Pathogenic
Illustrations

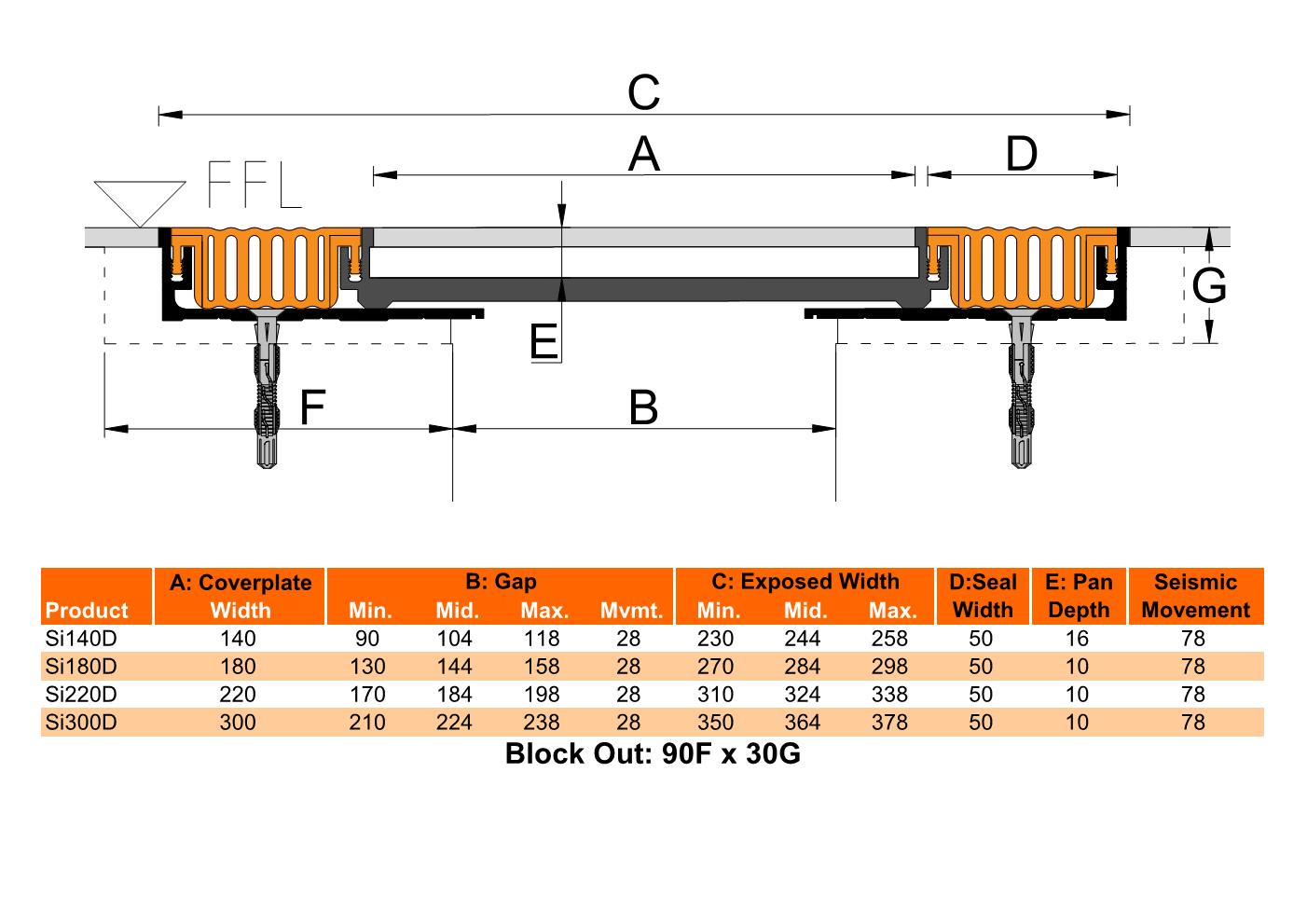

Typical Dimensions
Performance


Material Options

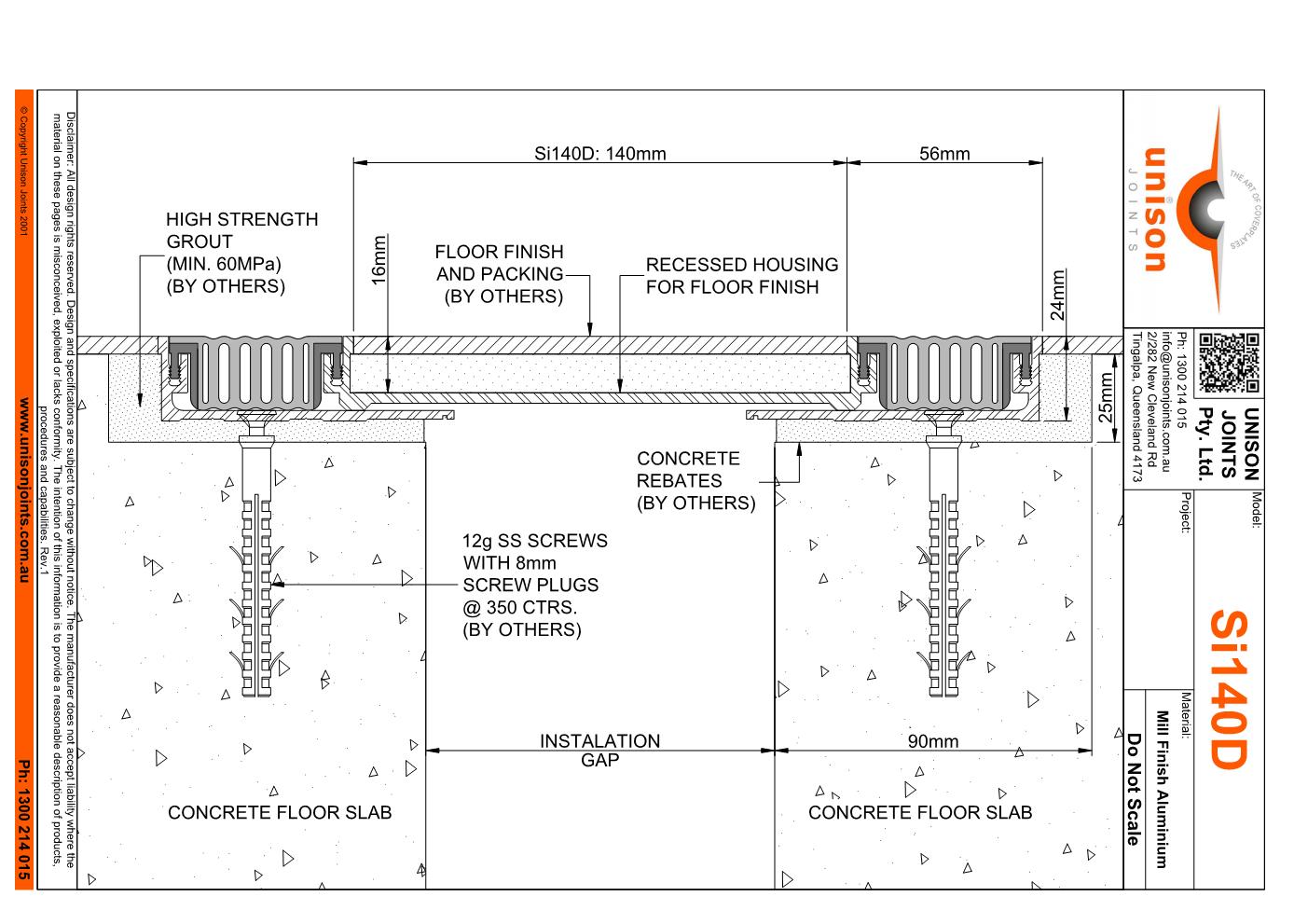

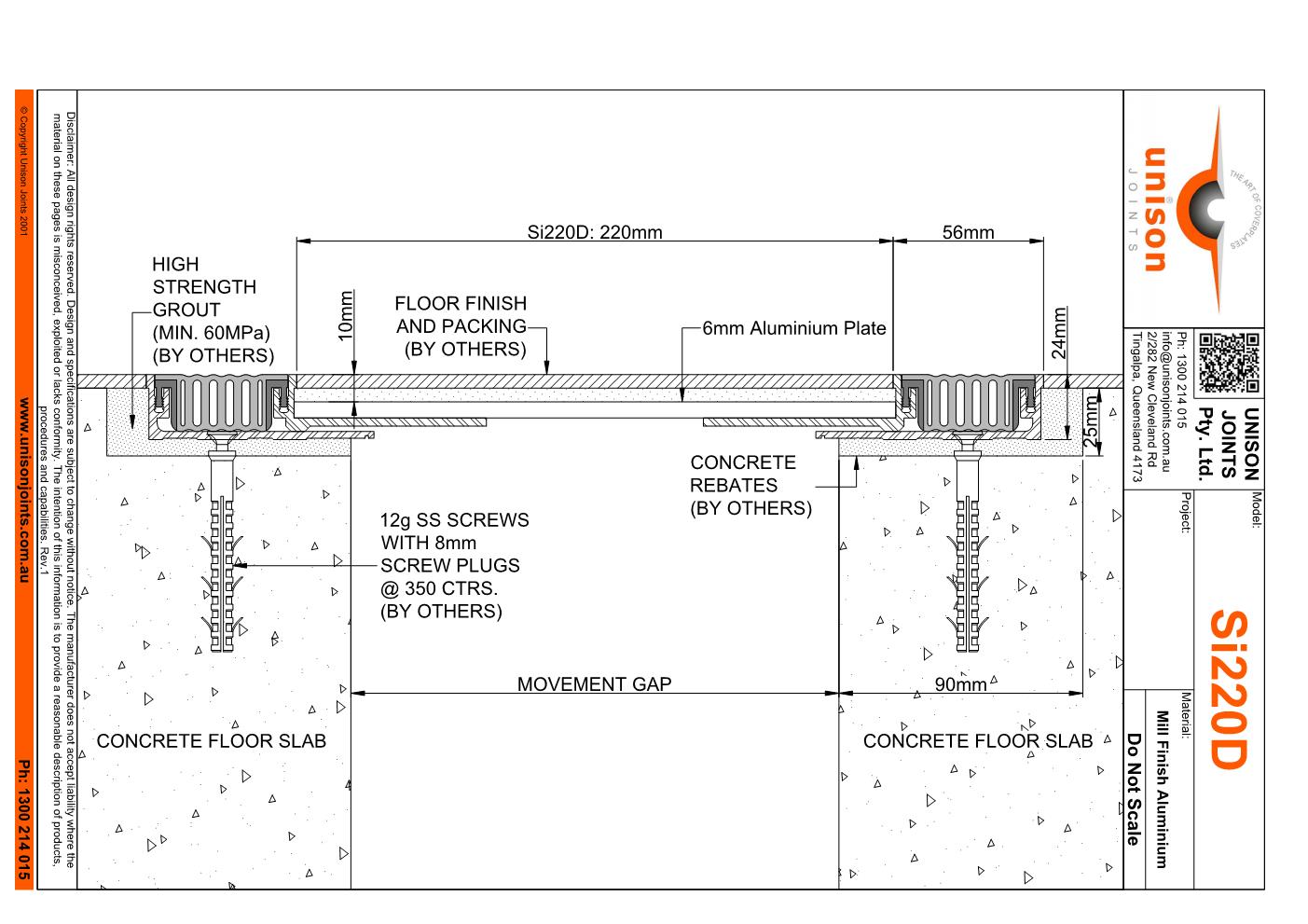

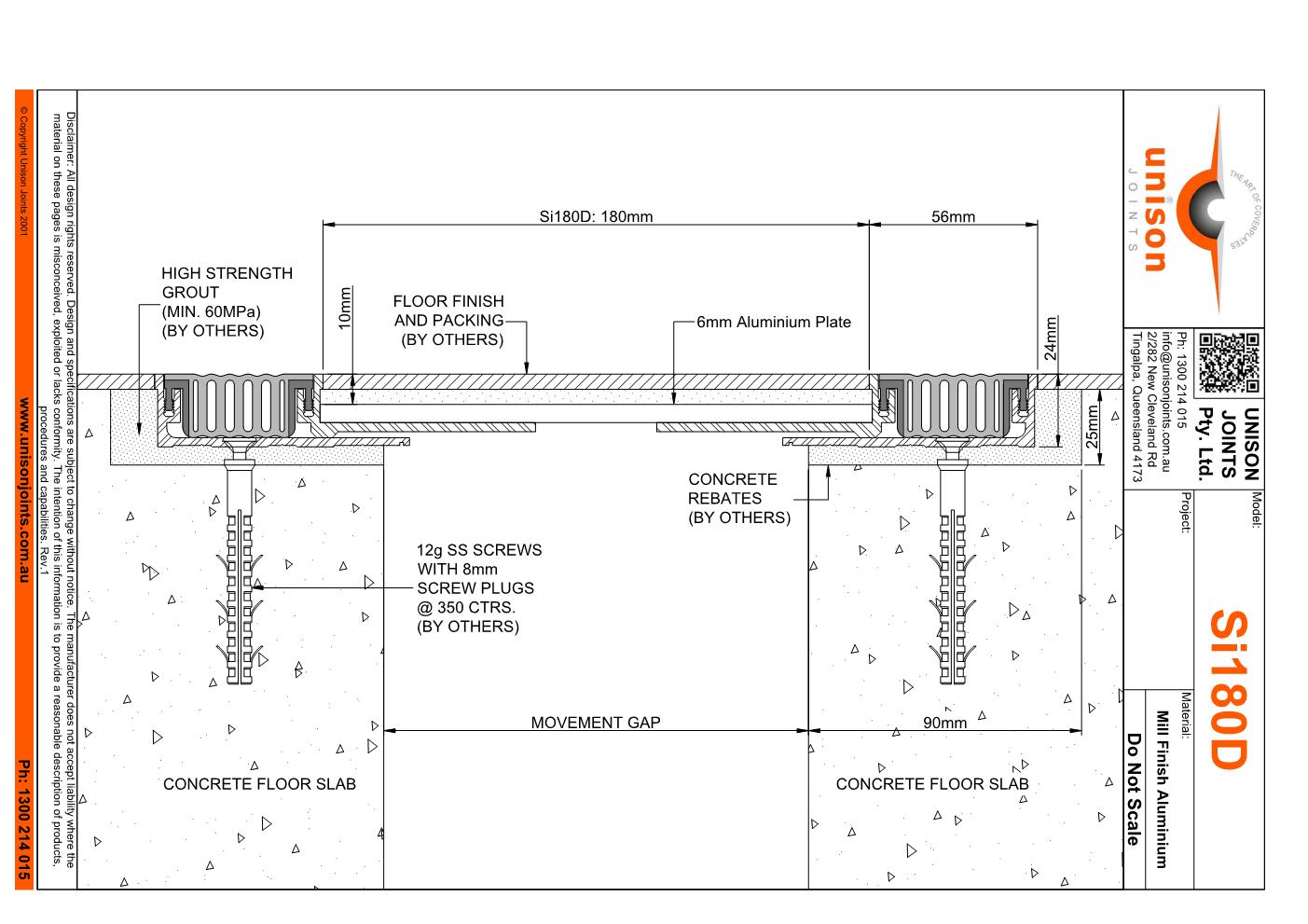

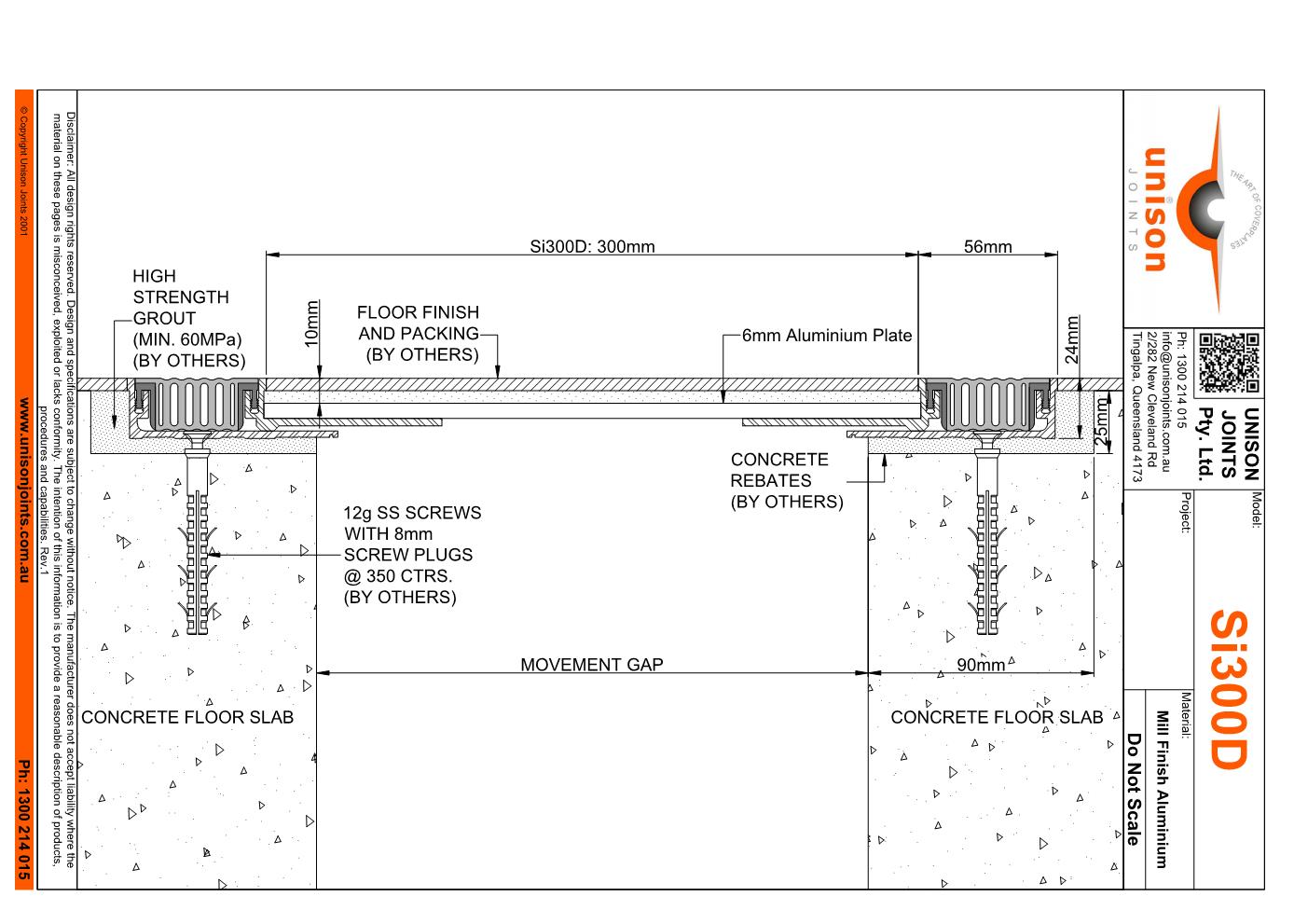

Detail Drawings

Multi Directional

Seismic

Anti-Pathogenic
Performance
- No bump transition
- Weather & Anti-pathogenic seal
- Concealed fixings
- Thermal and seismic movement
- Multi directional movement
Compatible Finishes
- Tiles
- Vinyl
- Epoxy
- Exposed Concrete
Standard Finish
Mill Finish
Length
4.8m
Cover Plates

Mill Finish Aluminium
