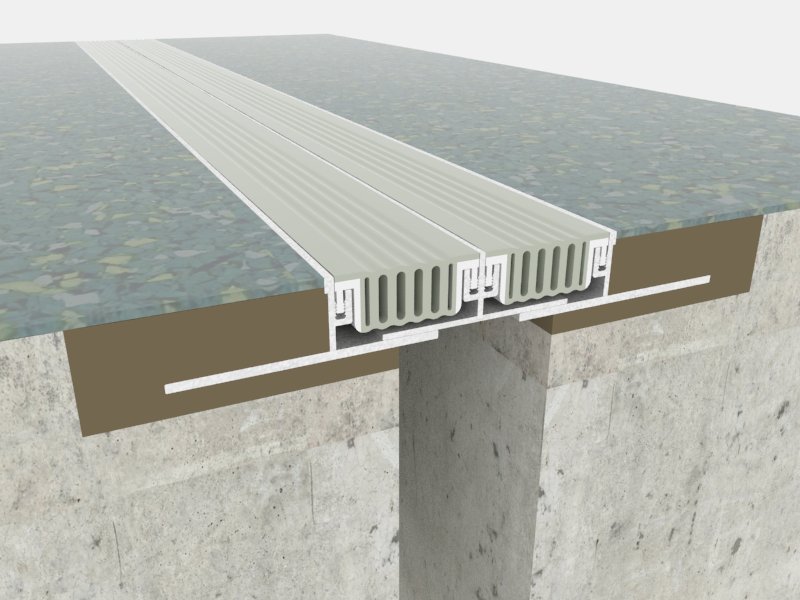

Thermoplastic Gasket Dual Seal Floor Expansion Joint Cover

Mo DL

Medical Grade Hygenic Gasket Seal expansion joint cover.      This Low Profile Dual seal expansion joint is designed for hospitals, aged care facilities, bathrooms, and food service areas. It prevents water and contaminants from entering the joint gap while allowing easy cleaning. Its sealed design ensures a hygienic environment with minimal maintenance.  The seal is purposely designed with smooth ripples to allow the seal to open, rather than stretch & break. Made from dual-compound thermoplastic with UV inhibitors. Colour options are available.





Indoor and Outdoor
Trolley Safe
Multi Directional
Water Resistant
Anti-Pathogenic
Illustrations

Typical Dimensions

Performance
Multi Directional
Water Resistant
Anti-Pathogenic

Performance

  • Architectural floor seal
  • Santoprene primary seal
  • Weather / pathogenic seal
  • UV stable
  • No bump transition

Compatible Finishes

  • Tiles
  • Vinyl
  • Carpet
Material Options

Standard Finish

Anodised

Length

4.8m

Cover Plates

Clear Anodised
Detail Drawings

Standard

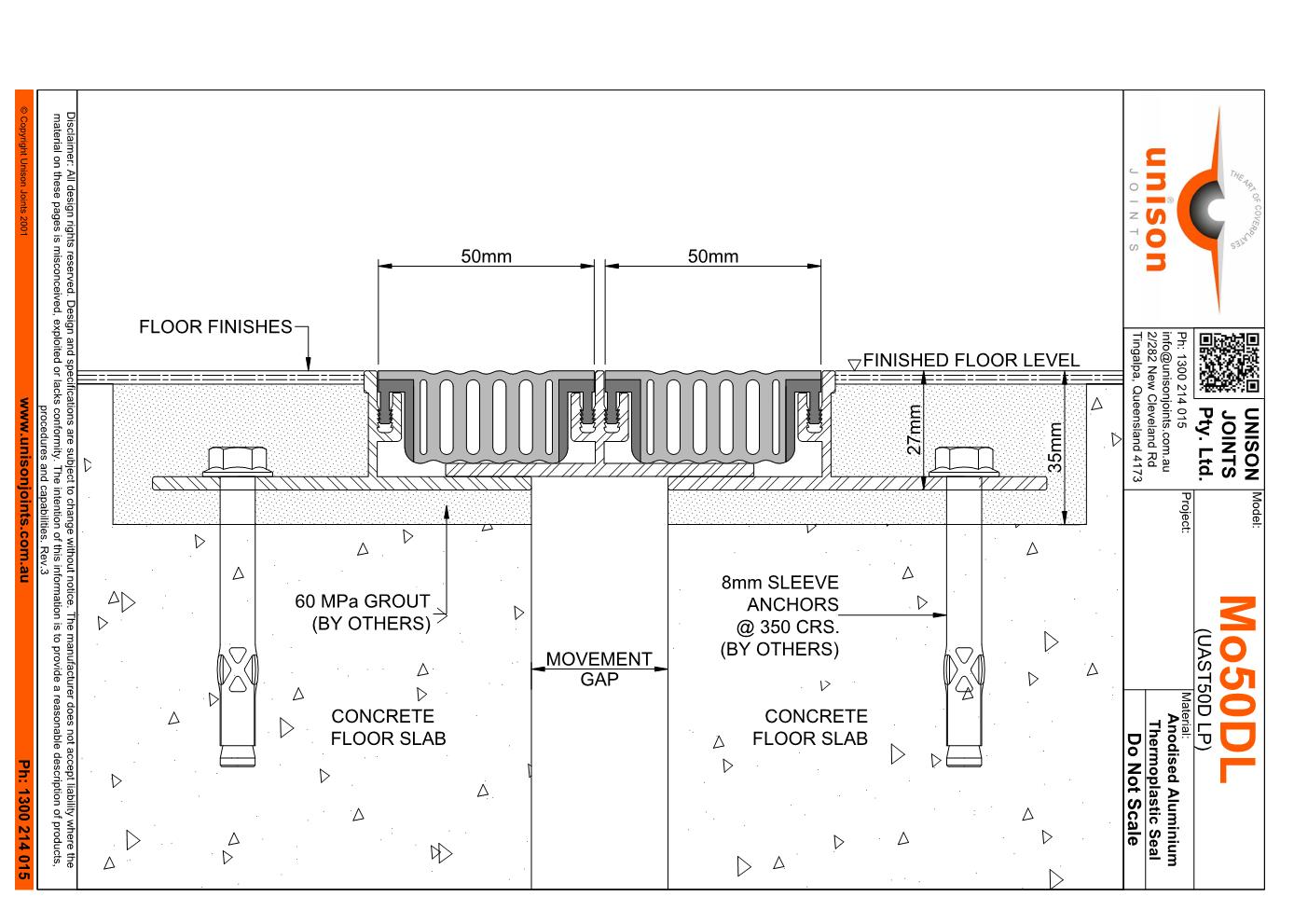

Mo50DL

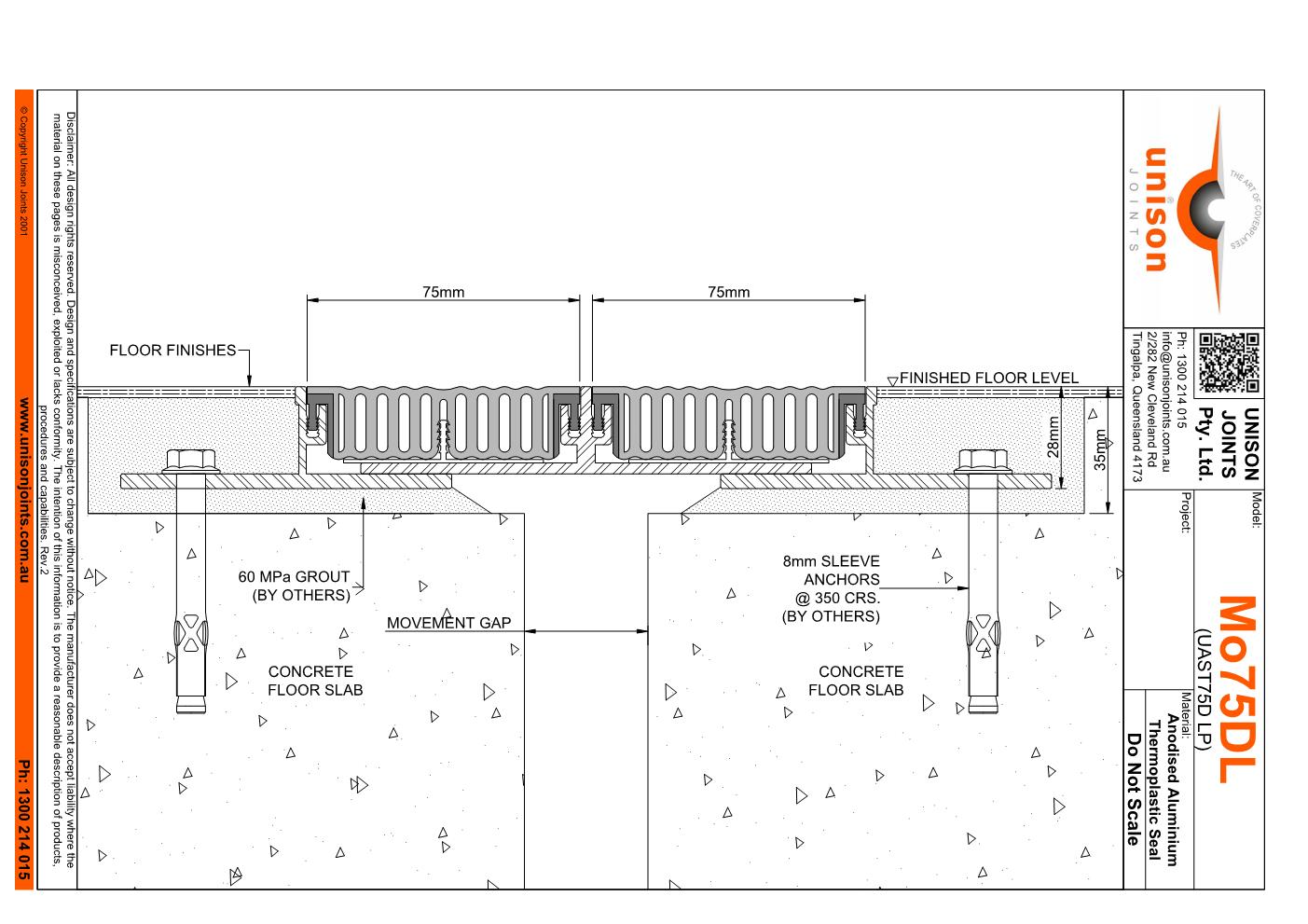

Mo75DL

Floor to Wall System

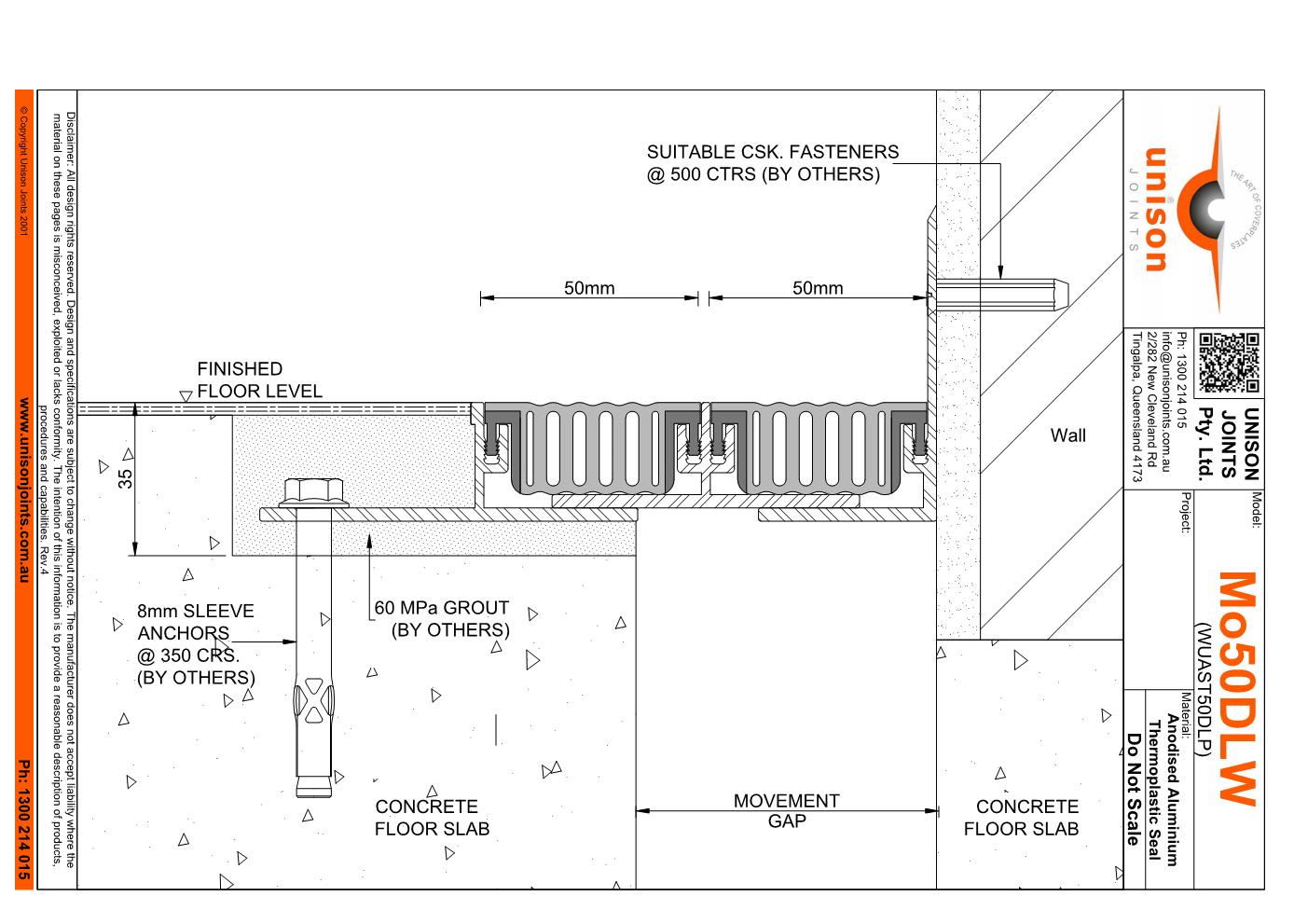

Mo50DLW

Modified

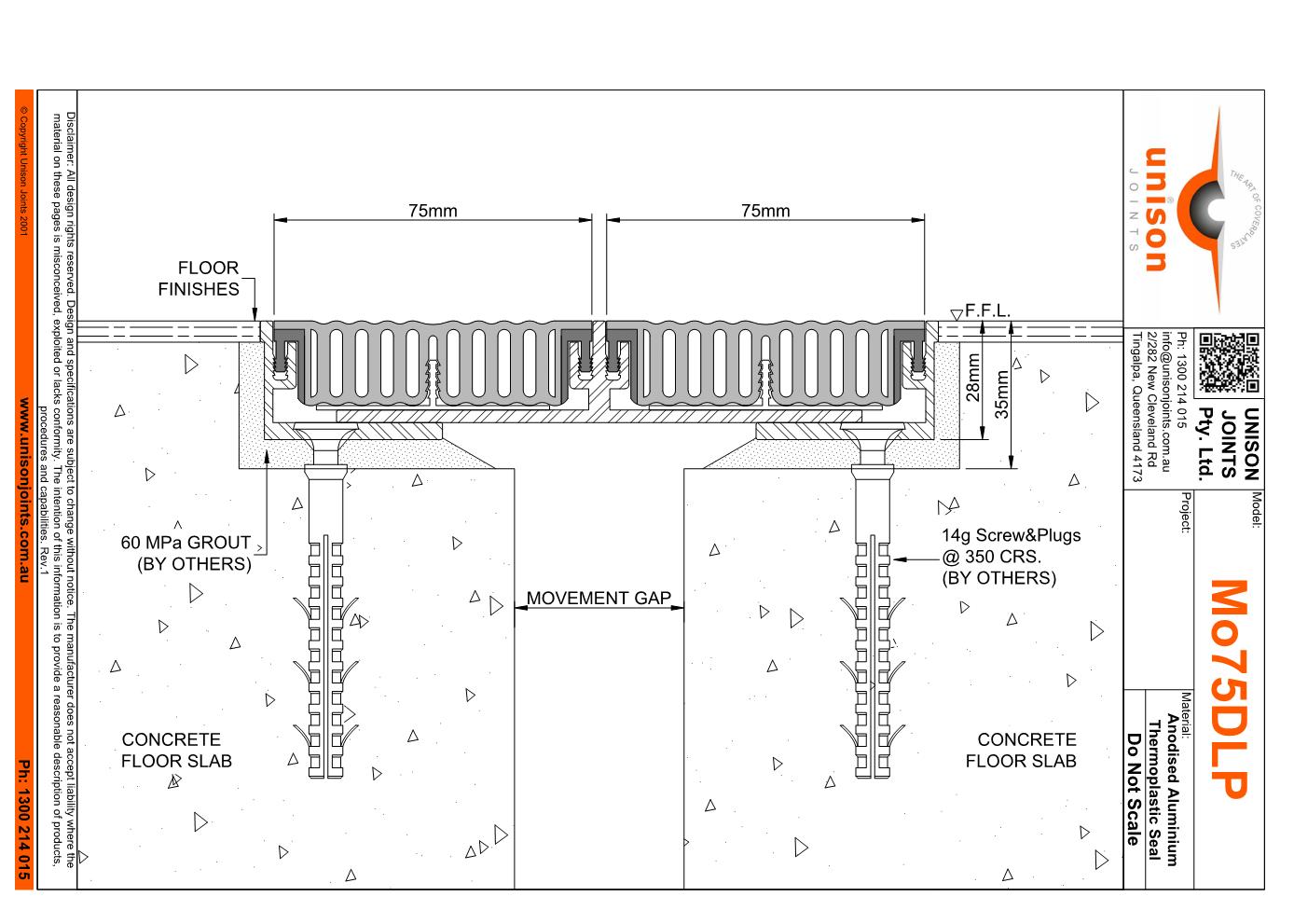

Mo75DLP
