Low-Profile Retrofit Floor Expansion Joint Cover

Fx D

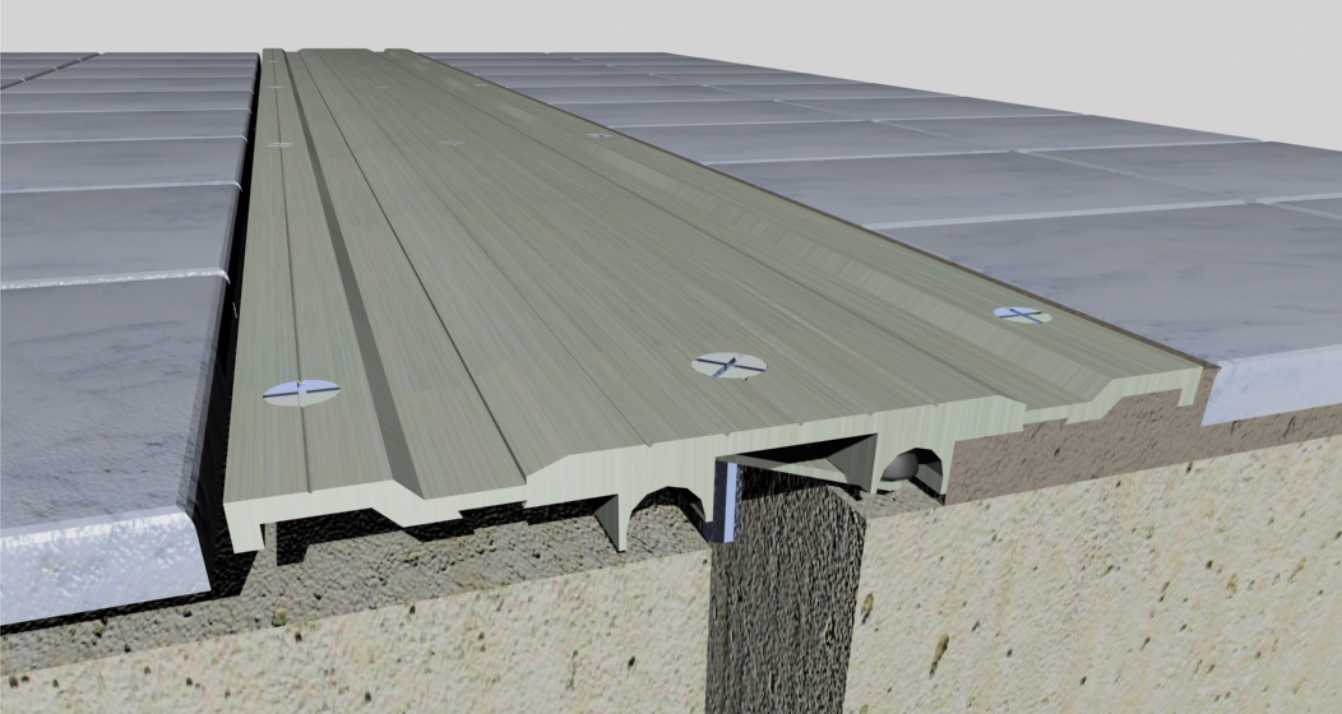

Low profile expansion joint cover system.  The FxD is a versatile movement joint system designed for applications or situations where minimal substrate rebating is required. This adaptable solution is ideal for refurbishments, new-to-old slab jointing, and projects where substrate rebate specifications are uncertain.

Widely used in retail buildings, supermarkets, department stores, mixed-use developments, and public facilities, the FxD system offers flexibility and reliability. Cover plates can be customized with finishes including stainless steel, natural anodized aluminum, color-anodized aluminum, or bead-blasted options, ensuring a tailored solution for any architectural requirement.





Indoor and Outdoor
Trolley Safe
Multi Directional
P3 Slip Resistance Rating
Illustrations

Typical Dimensions

Performance
Multi Directional
P3 Slip Resistance Rating

Performance

  • Concealed Fixings
  • Low profile / Retrofit
  • High Capacity
  • Low Maintenance
  • Bead blasted cover plate
  • Slip resistance Class V Tested to AS4586 2013
  • Multi directional

Compatible Finishes

  • Tiles
  • Vinyl
  • Carpet
  • Epoxy
  • Exposed Concrete
Material Options

Standard Finish

Anodised

Length

4.8m

Cover Plates

Clear Anodised
Stainless Steel

Cover Plate Options

No Bump
Bead Blasted
Detail Drawings

Aluminium Coverplate

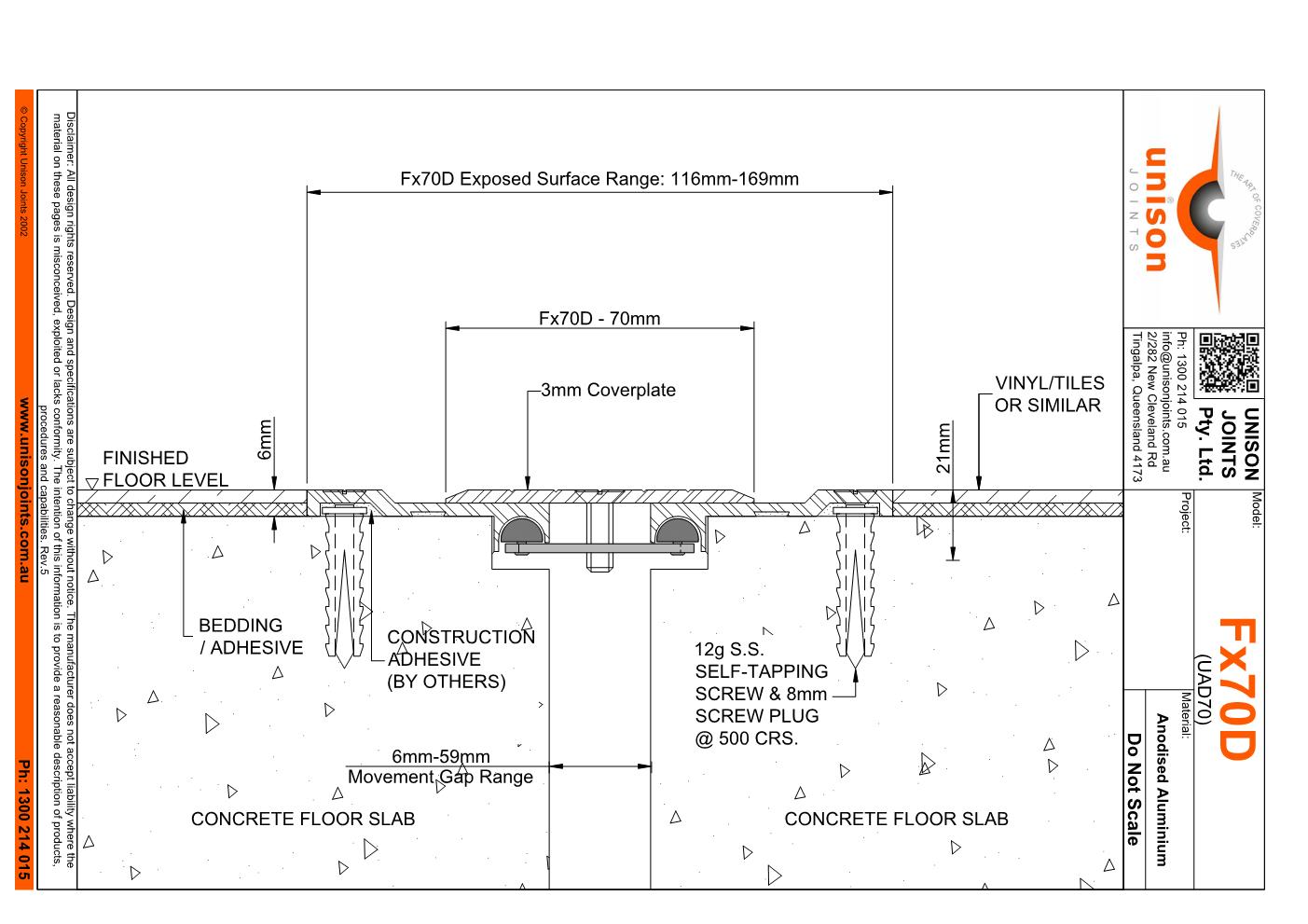

Fx70D

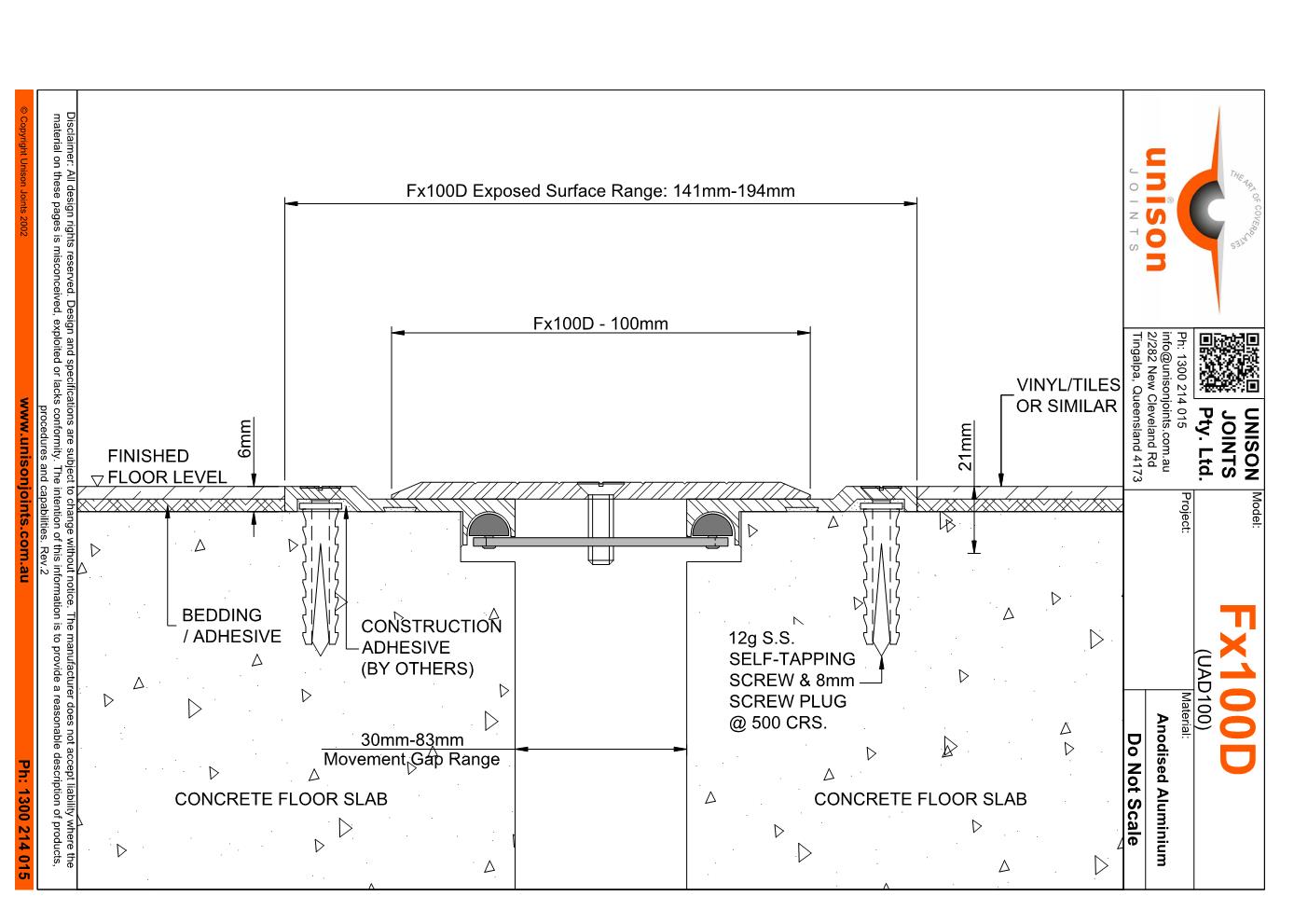

Fx100D

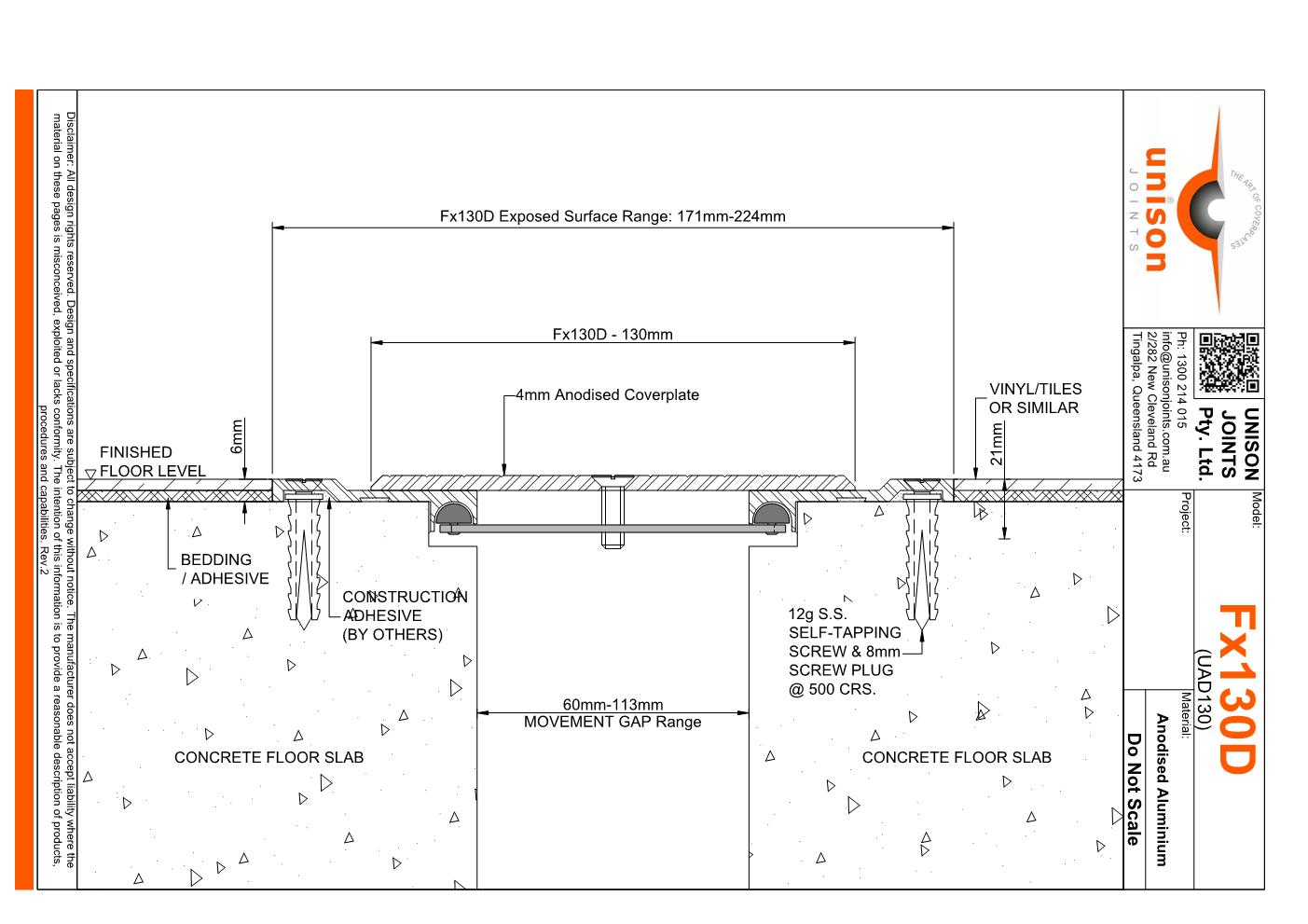

Fx130D

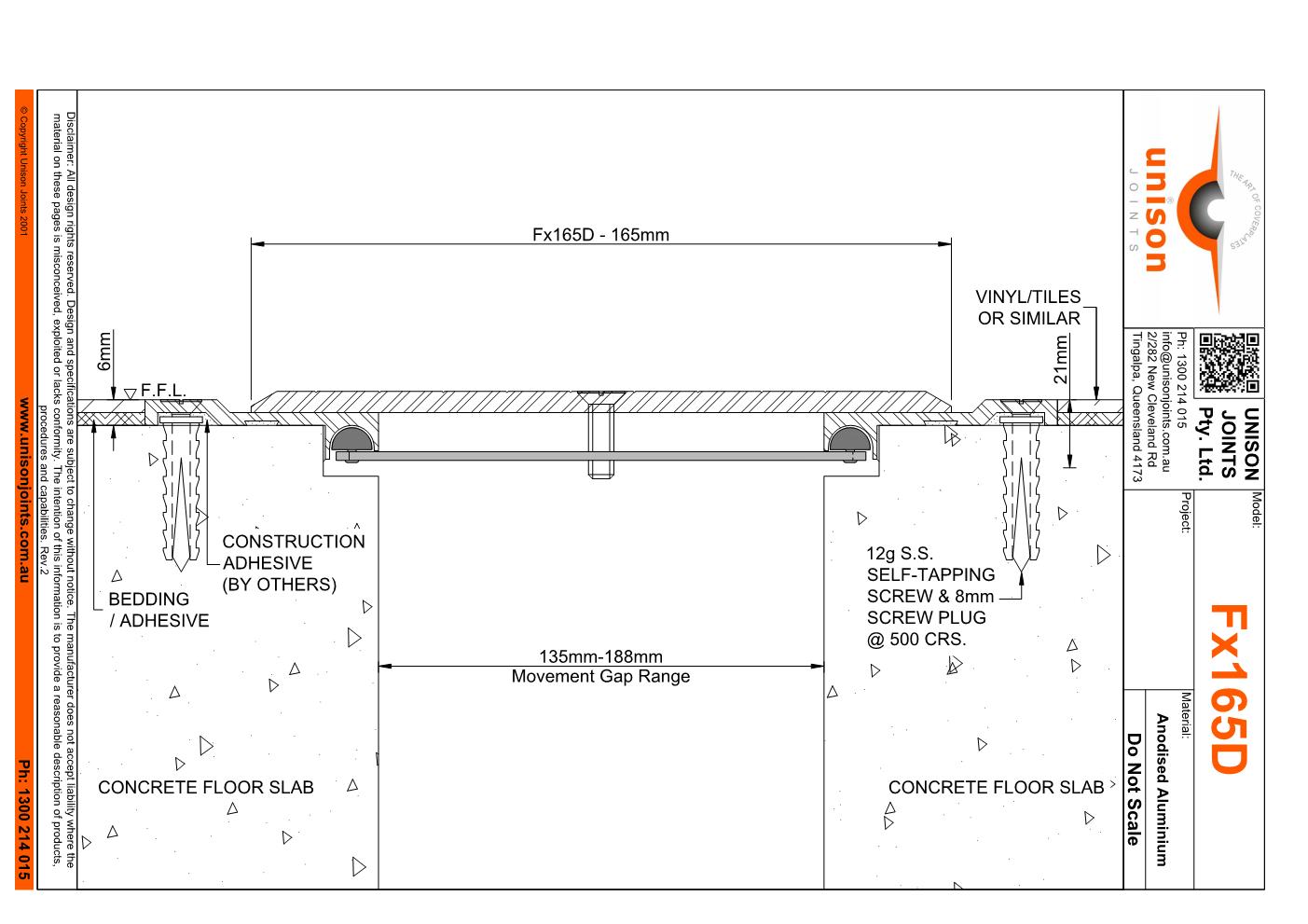

Fx165D

Stainless Steel Coverplate

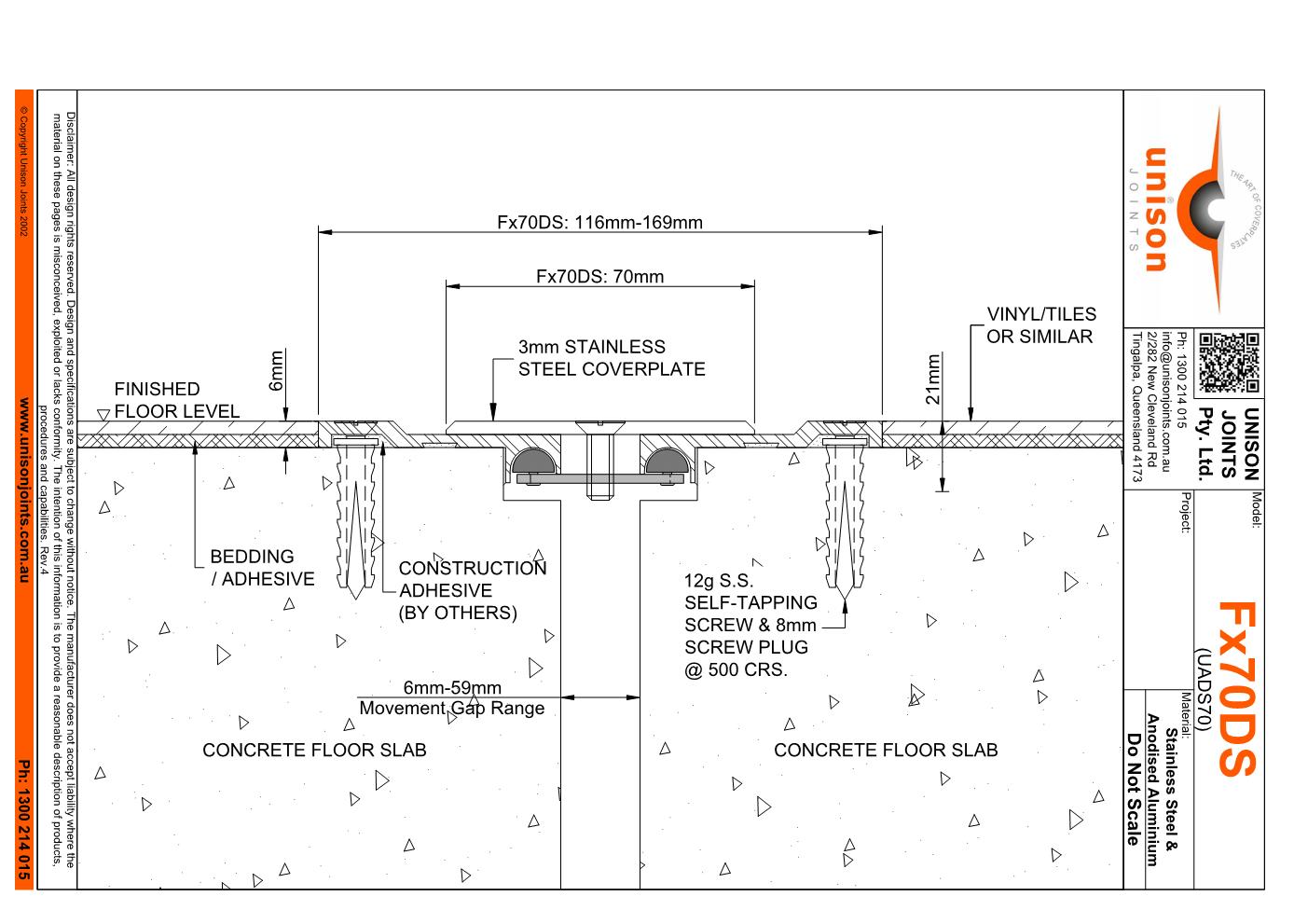

Fx70DS

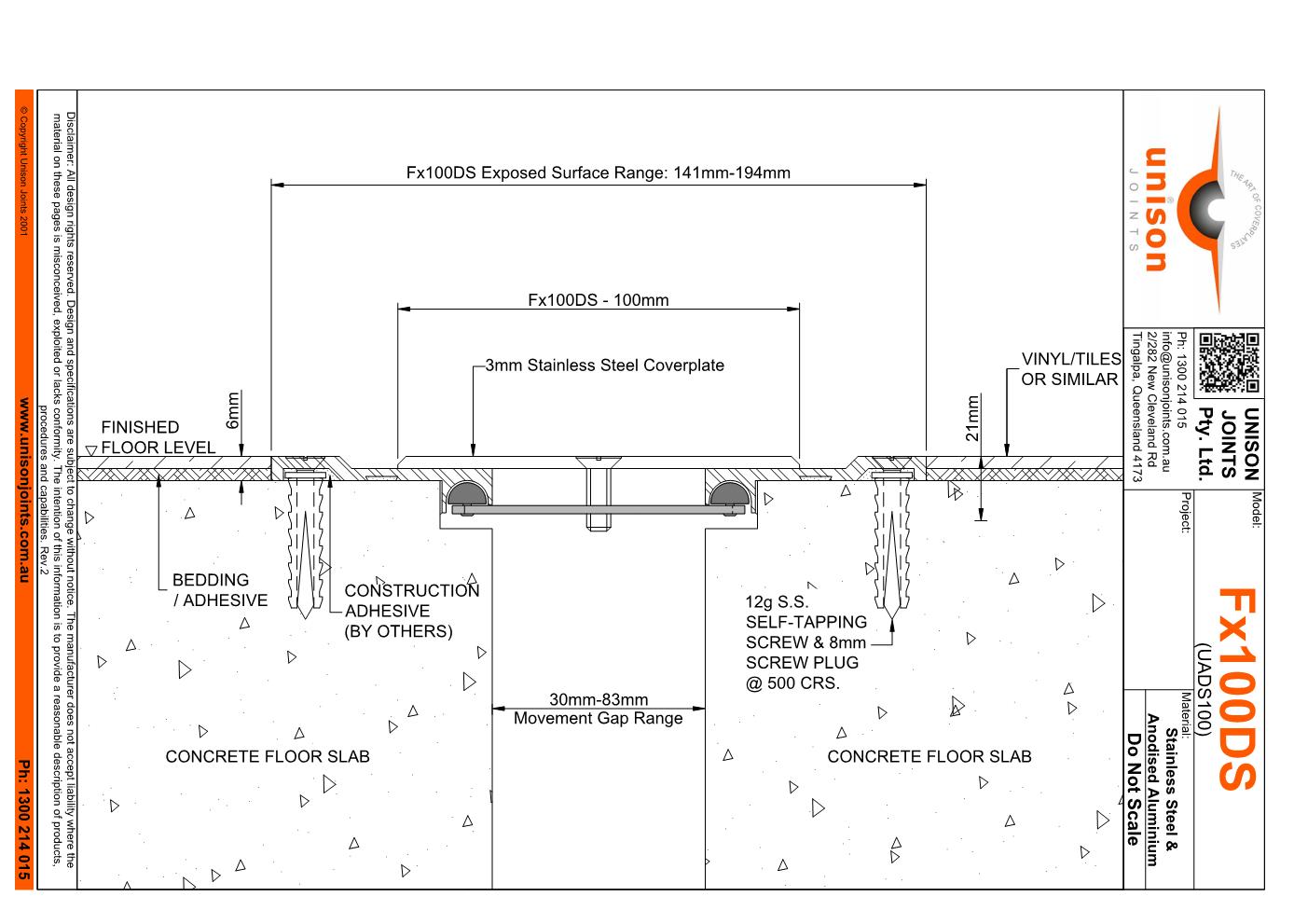

Fx100DS

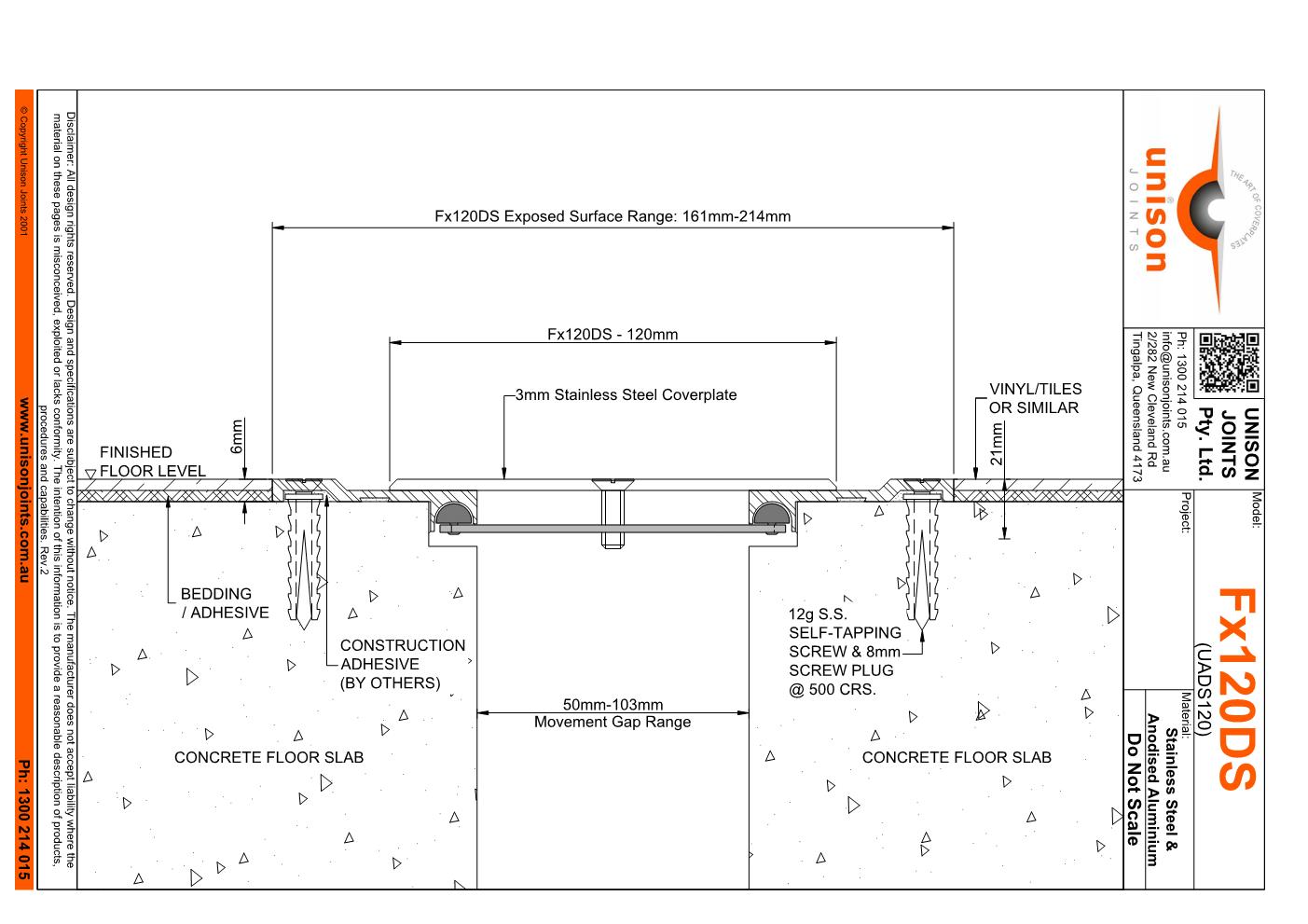

Fx120DS

No Bump Coverplate

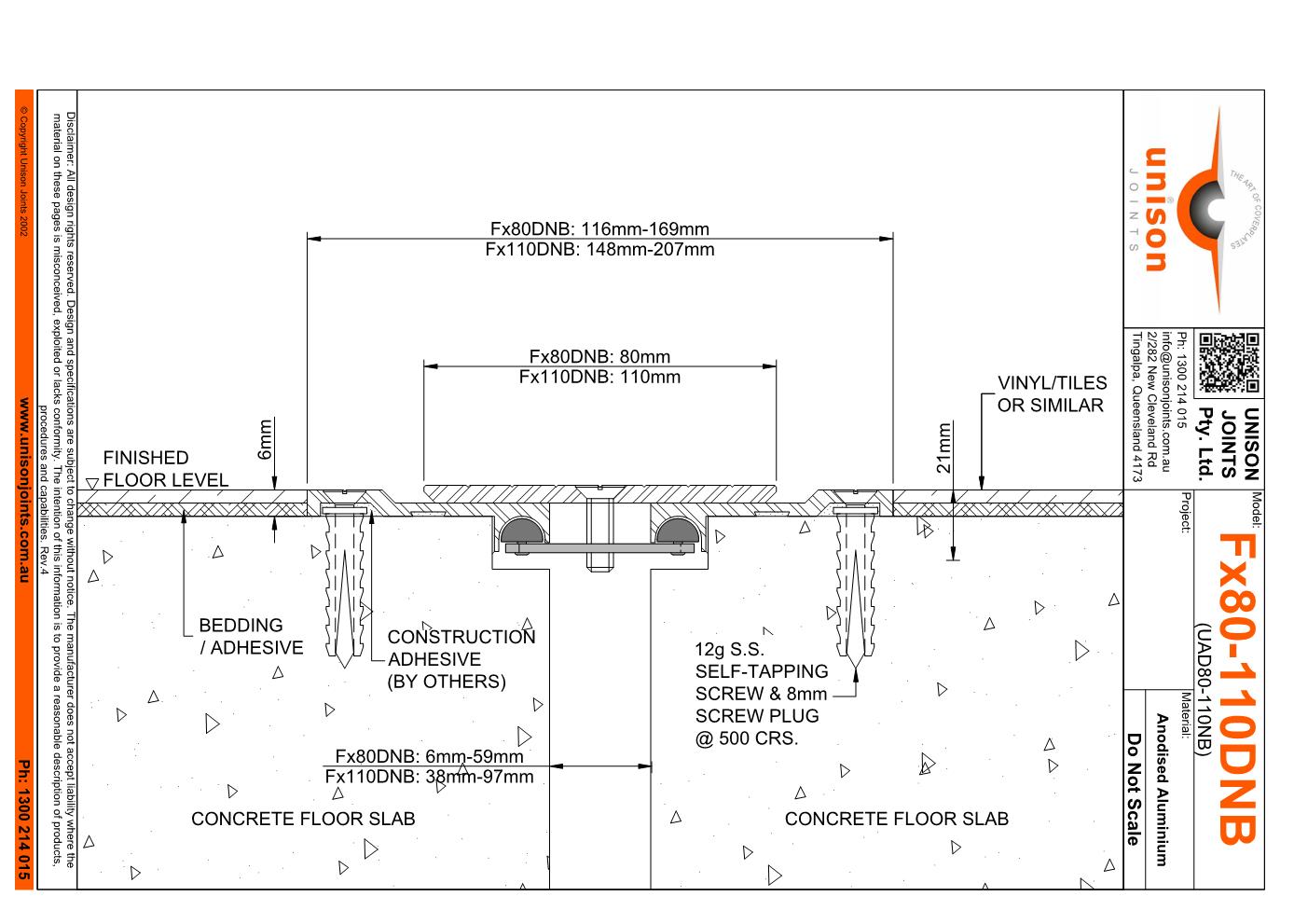

Fx80-110DNB

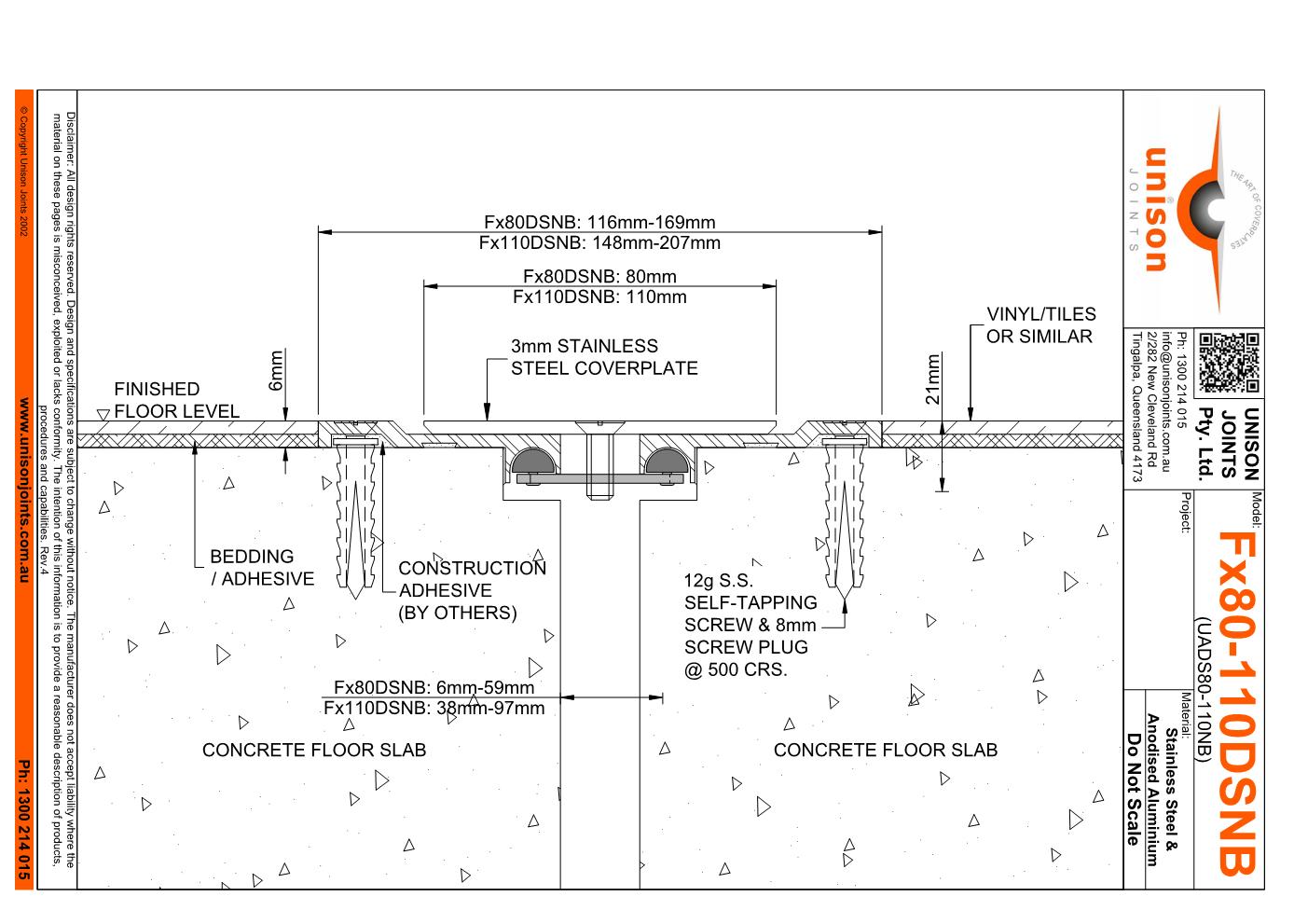

Fx80-110DSNB

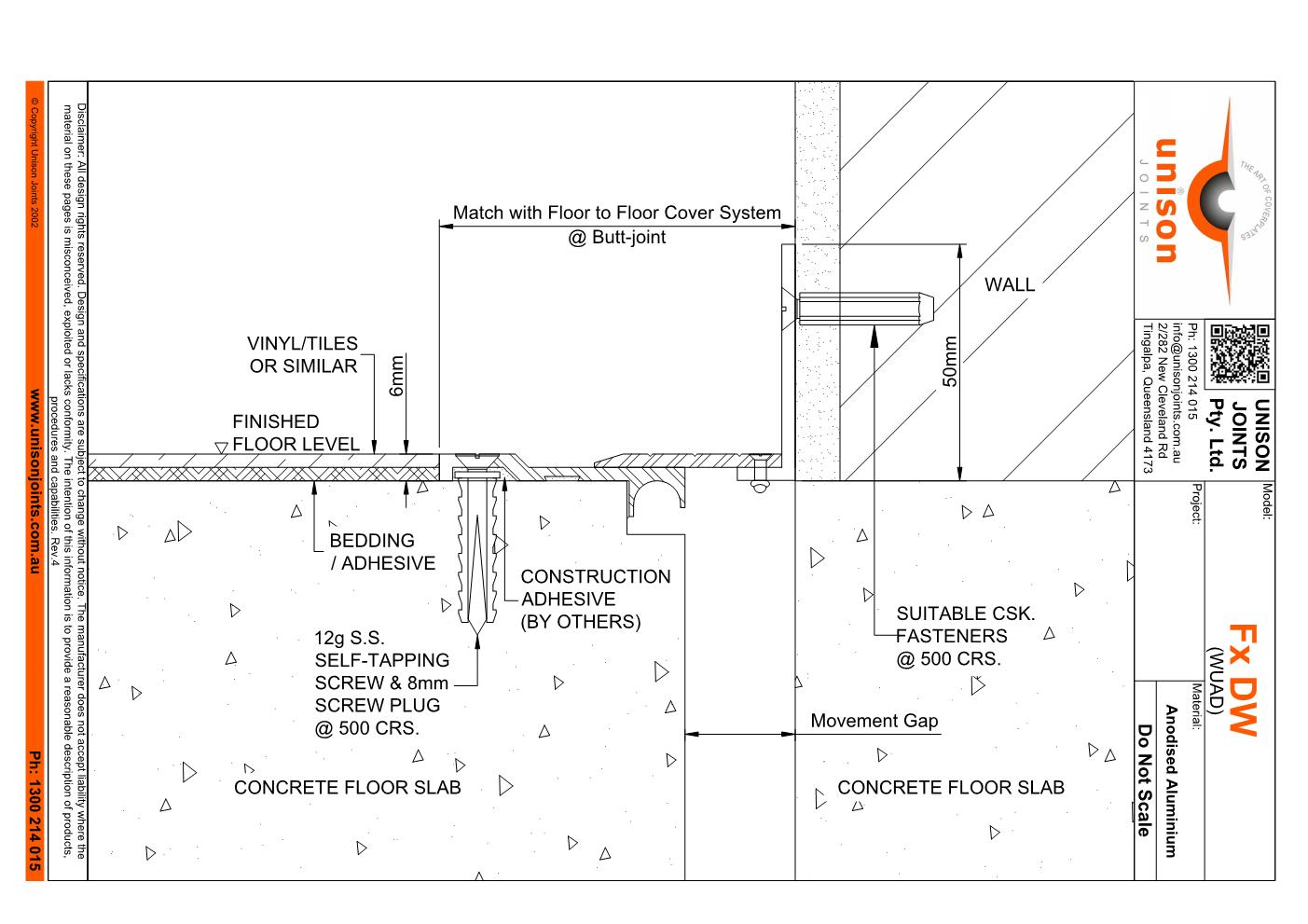

Floor to Wall System

Fx DW
