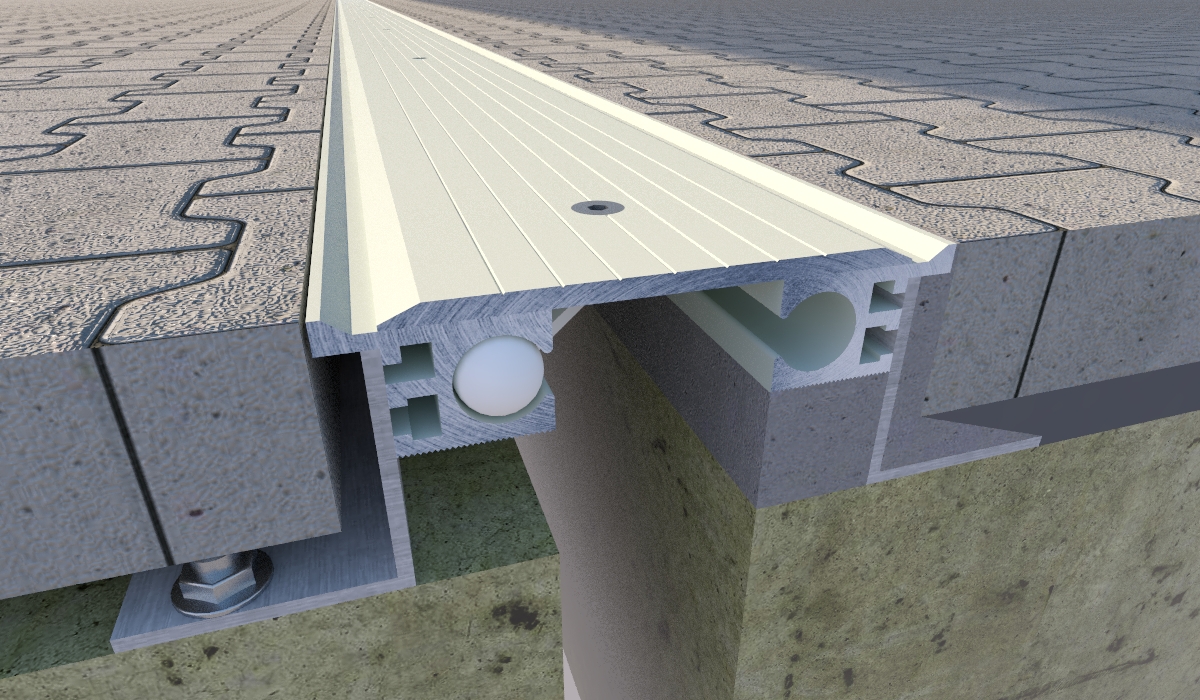

High profile Aluminum Floor Expansion Joint Cover

Fx CT

Most widely used

Most Popular Floor Joint cover. The FxCT expansion joint system is an evolution of the widely utilized FxC range.   It is known as the leading floor cover plate solution. Designed for compatibility with deep floor finishes such as terrazzo, pavers, marble, granite, and other stone tiles.  FxCT offers versatility and aesthetic appeal. Cover plates are available in a variety of finishes, including stainless steel, natural and color-anodized aluminum, or bead-blasted options. This system is ideal for applications in retail centers, airport terminals, apartment complexes, public buildings, and more.

Indoor and Outdoor
Trolley Safe
Multi Directional
P3 Slip Resistance Rating
Illustrations

Typical Dimensions

Performance
Multi Directional
P3 Slip Resistance Rating

Performance

  • Concealed Fixings
  • Thermally Dynamic
  • High Capacity
  • Low Maintenance
  • Bead blasted cover plate Slip resistance Class V Tested to AS4586 2013

Compatible Finishes

  • Tiles
  • Paver
  • Terrazzo
  • Exposed Aggregate
  • Stone
  • Granite
Material Options

Standard Finish

Anodised

Length

4.8m

Cover Plates

Clear Anodised

Cover Plate Options

No Bump
Bead Blasted

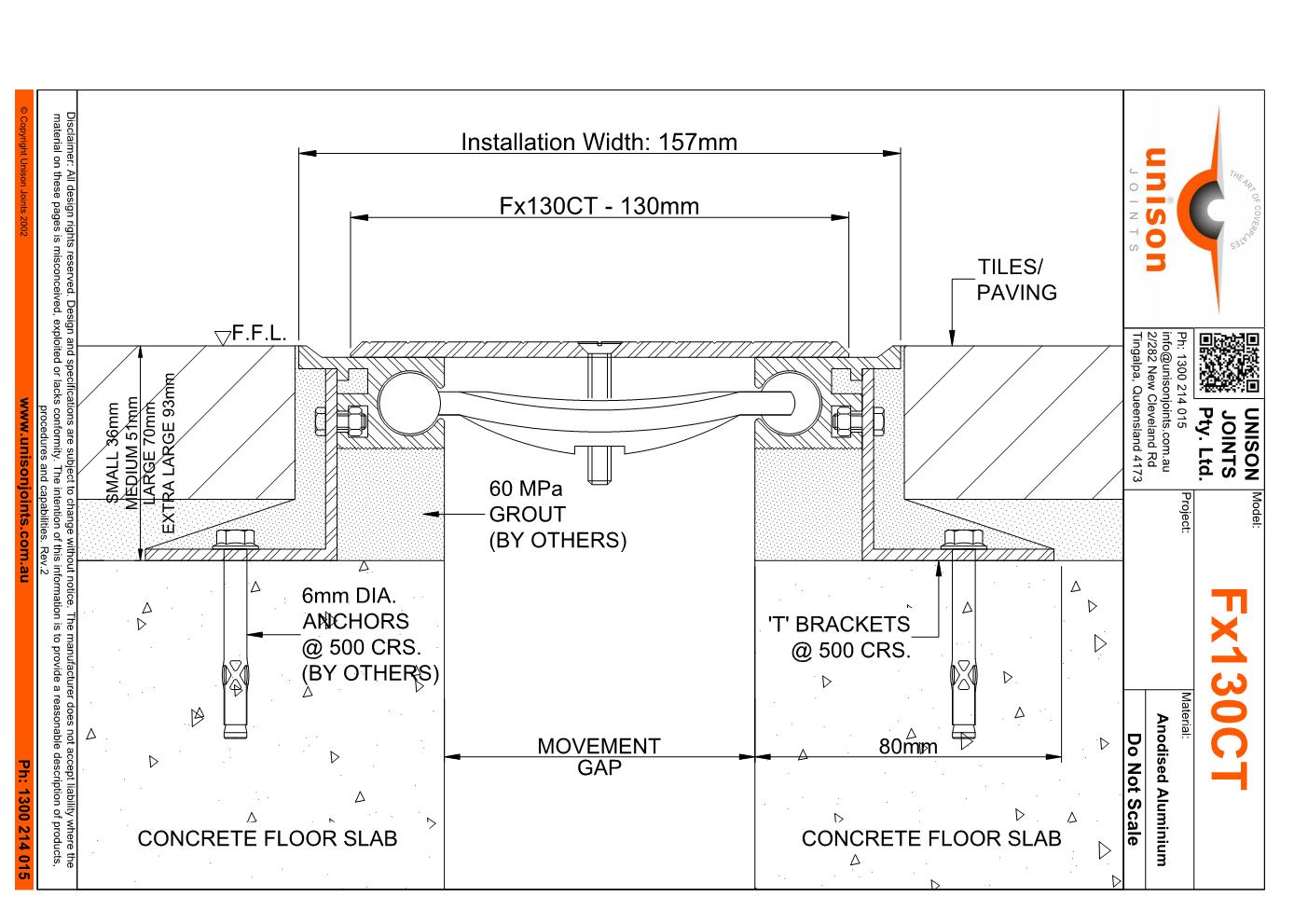

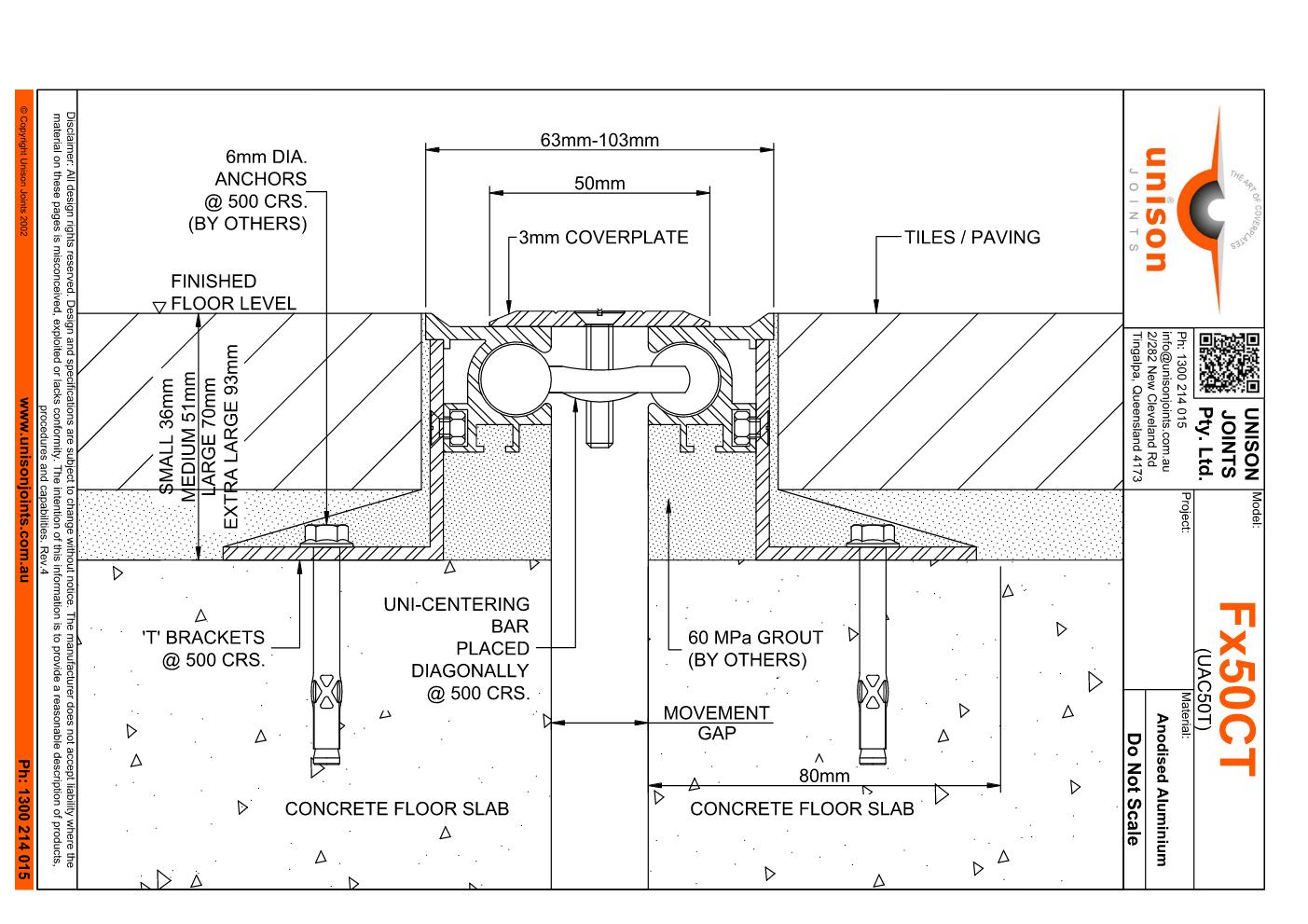

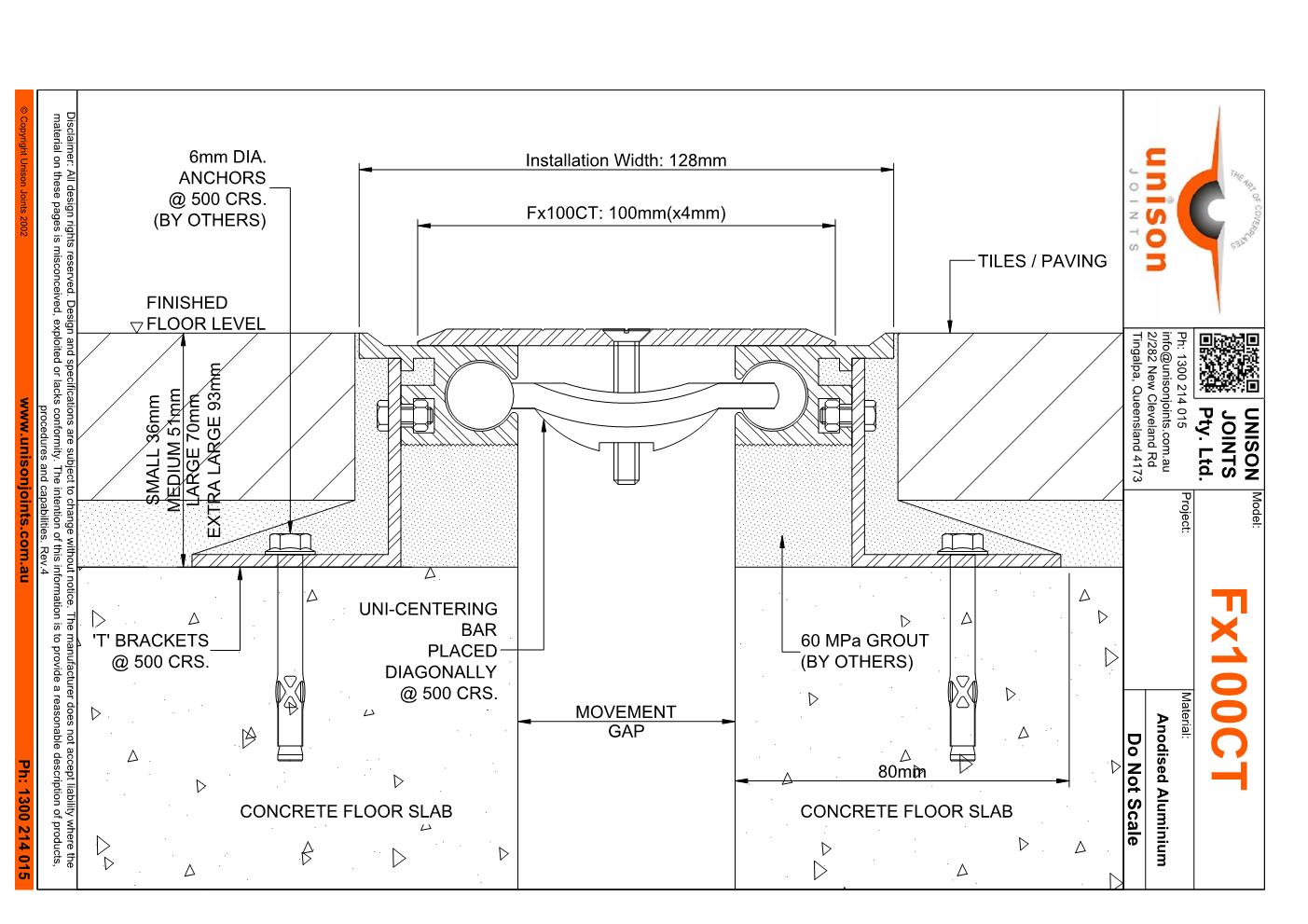

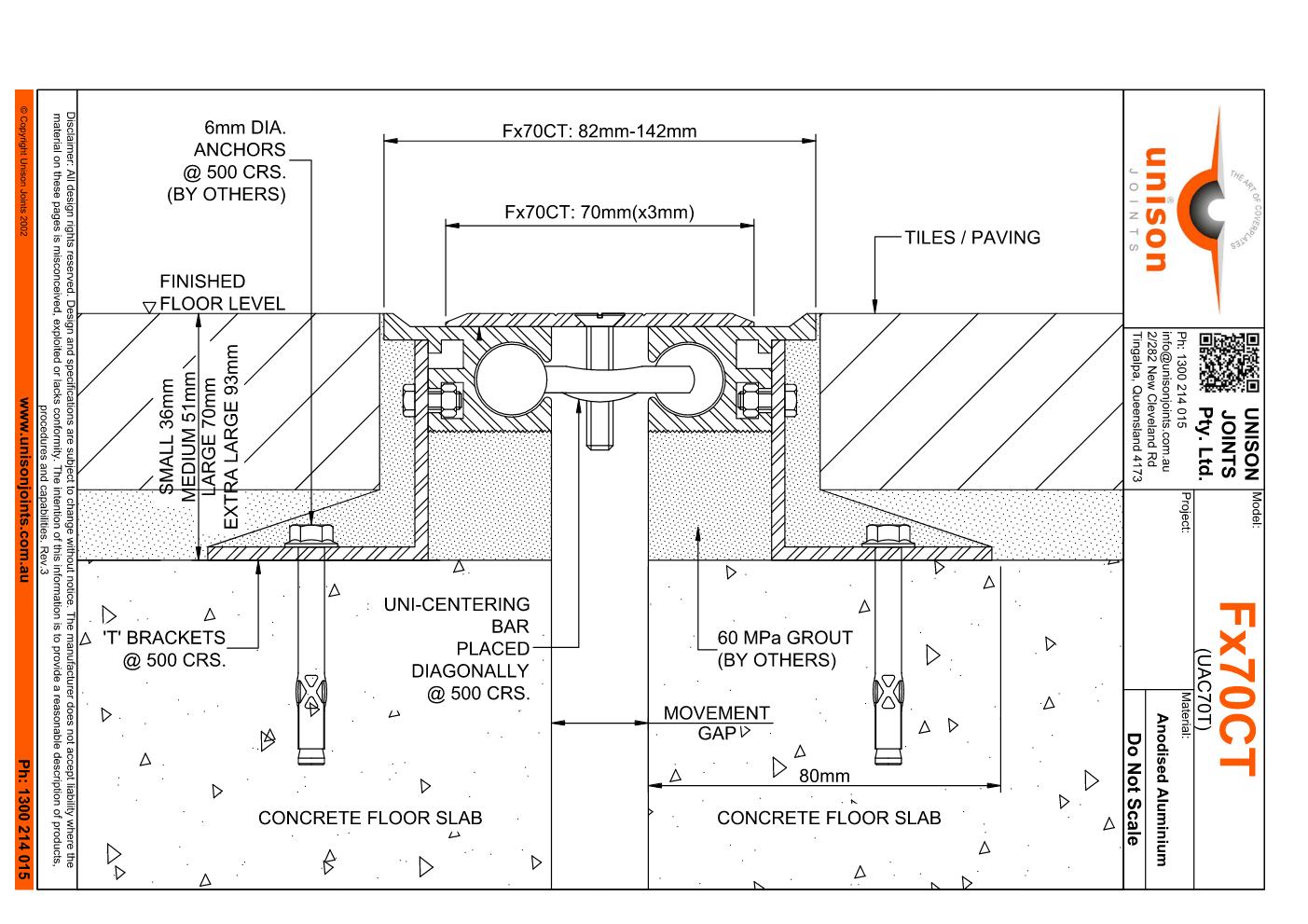

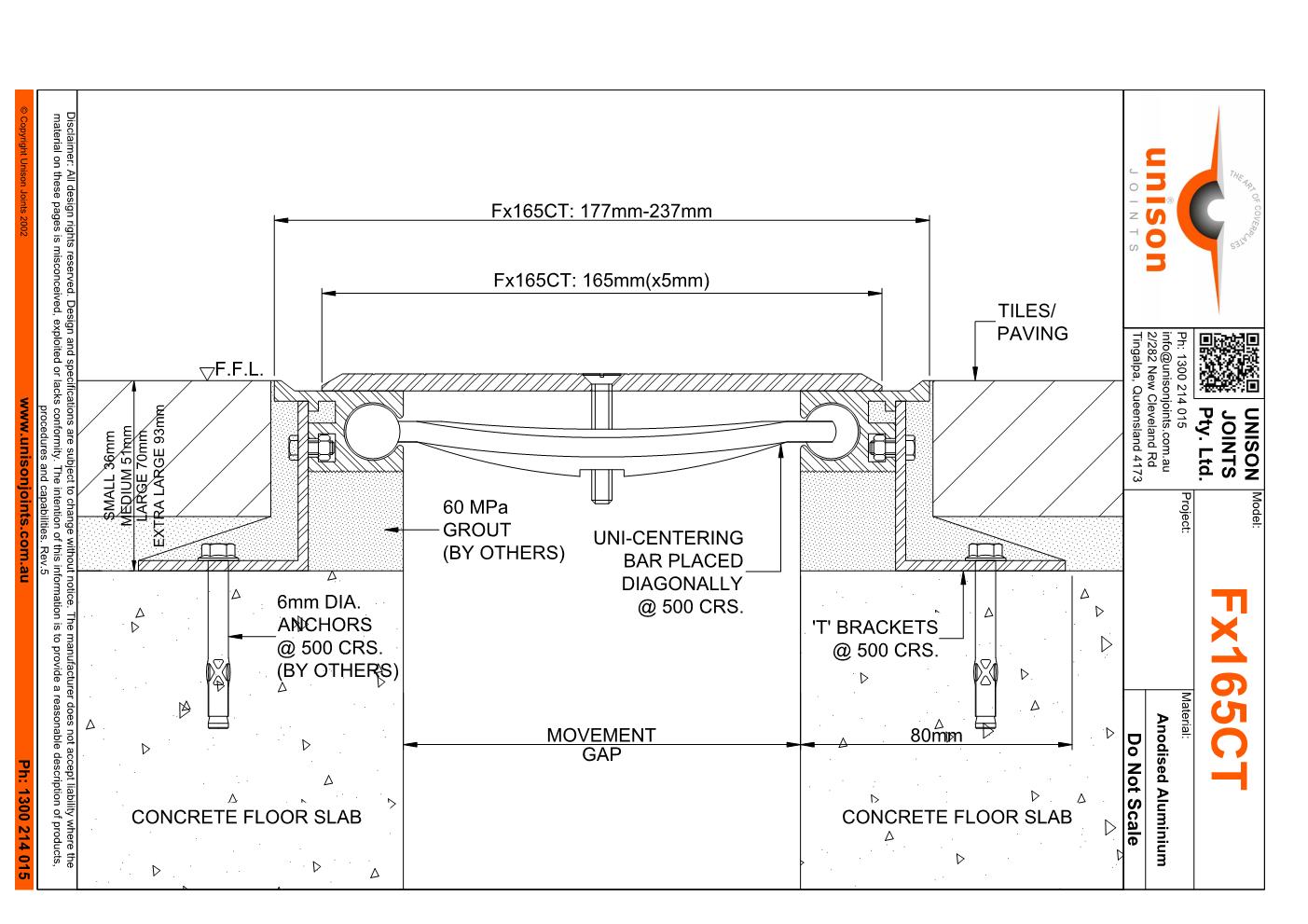

Detail Drawings

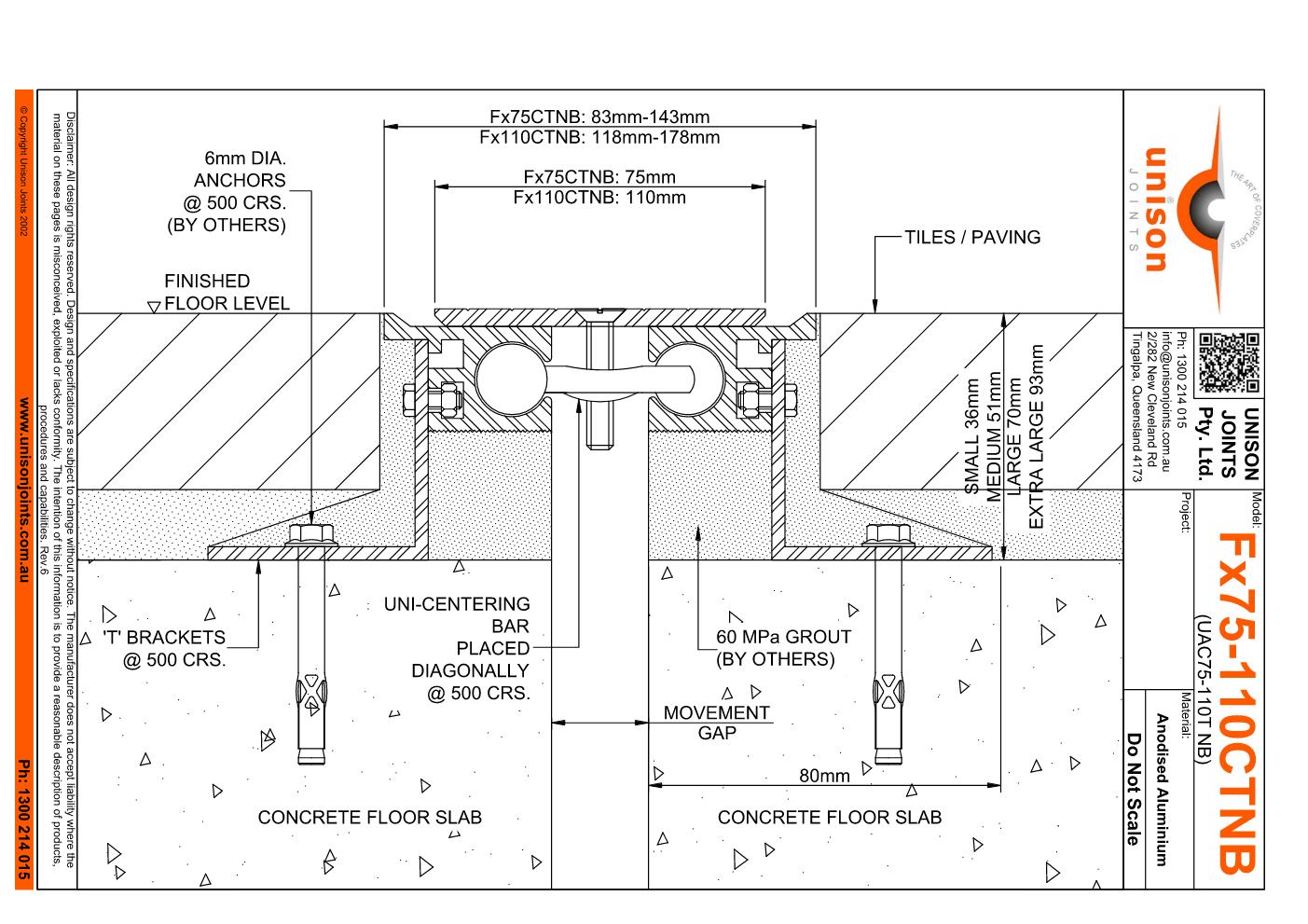

No Bump Coverplate

Fx75-110CTNB

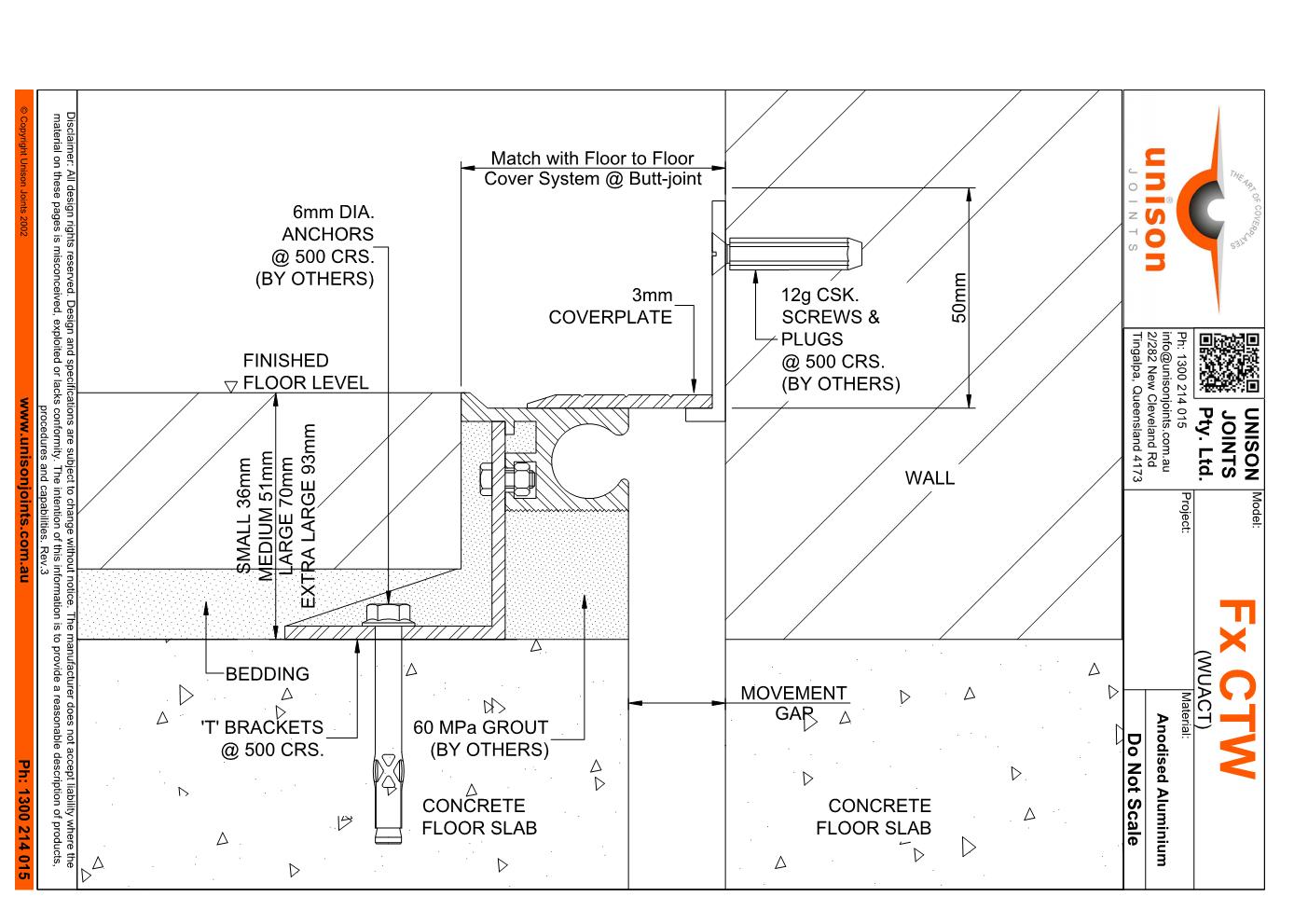

Floor to Wall System

Fx CTW
