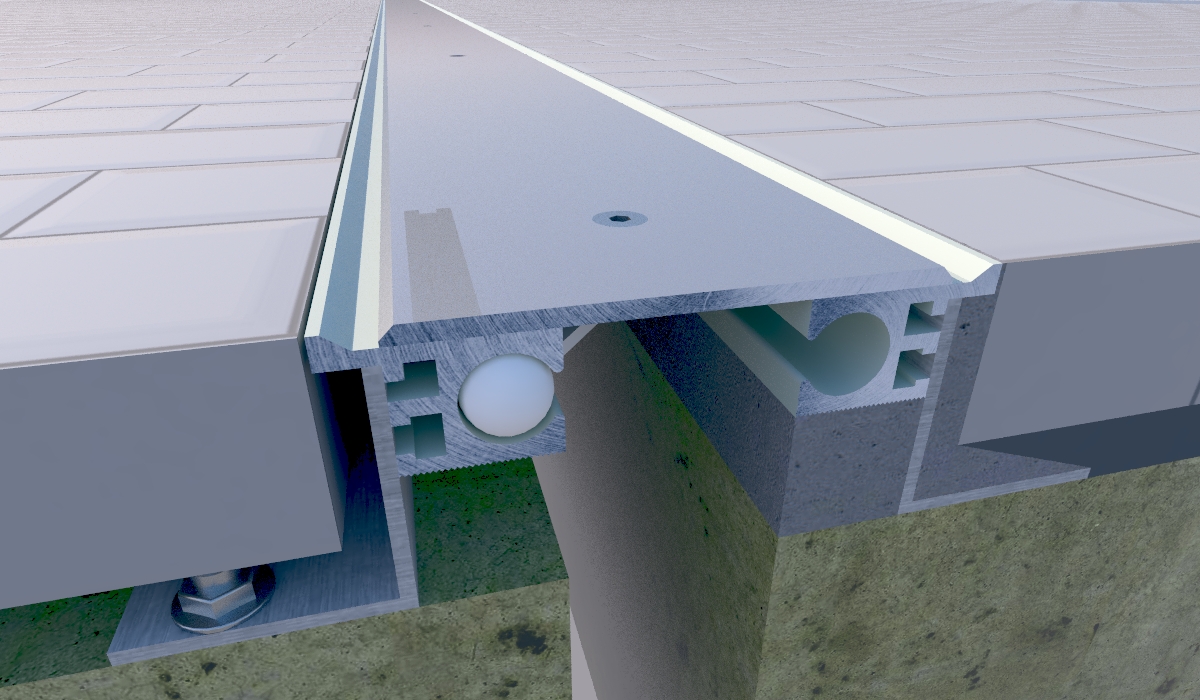

Stainless Steel Cover Plate Floor Expansion Joint

Fx CST

Mechanical Floor Expansion Joint with stainless steel cover.  Developed from the FxCS range which is the most widely used movement joint system. The FxCST  stainless-steel floor cover plate expansion is designed for integration with deep floor finishes such as terrazzo, pavers, marble, granite and other stone-tiles. Predominately install into retail shopping centres, airports terminals, apartment developments, public buildings etc.

Indoor and Outdoor
Trolley Safe
Multi Directional
P2 Slip Resistance Rating
Illustrations

Typical Dimensions

Performance
Multi Directional
P2 Slip Resistance Rating

Performance

  • Concealed Fixings
  • Thermally Dynamic
  • High Capacity
  • Low Maintenance
  • Bead blasted cover plate Slip resistance Class V Tested to AS4586 2013
  • Multi Directional
  • P2 Slip Resistance

Compatible Finishes

  • Tiles
  • Paver
  • Terrazzo
  • Exposed Aggregate
  • Stone
  • Granite
Material Options

Standard Finish

No.4 Stainless Steel

Length

4.8m

Cover Plates

Stainless Steel

Cover Plate Options

No Bump
Bead Blasted
Detail Drawings

Stainless Steel Coverplate

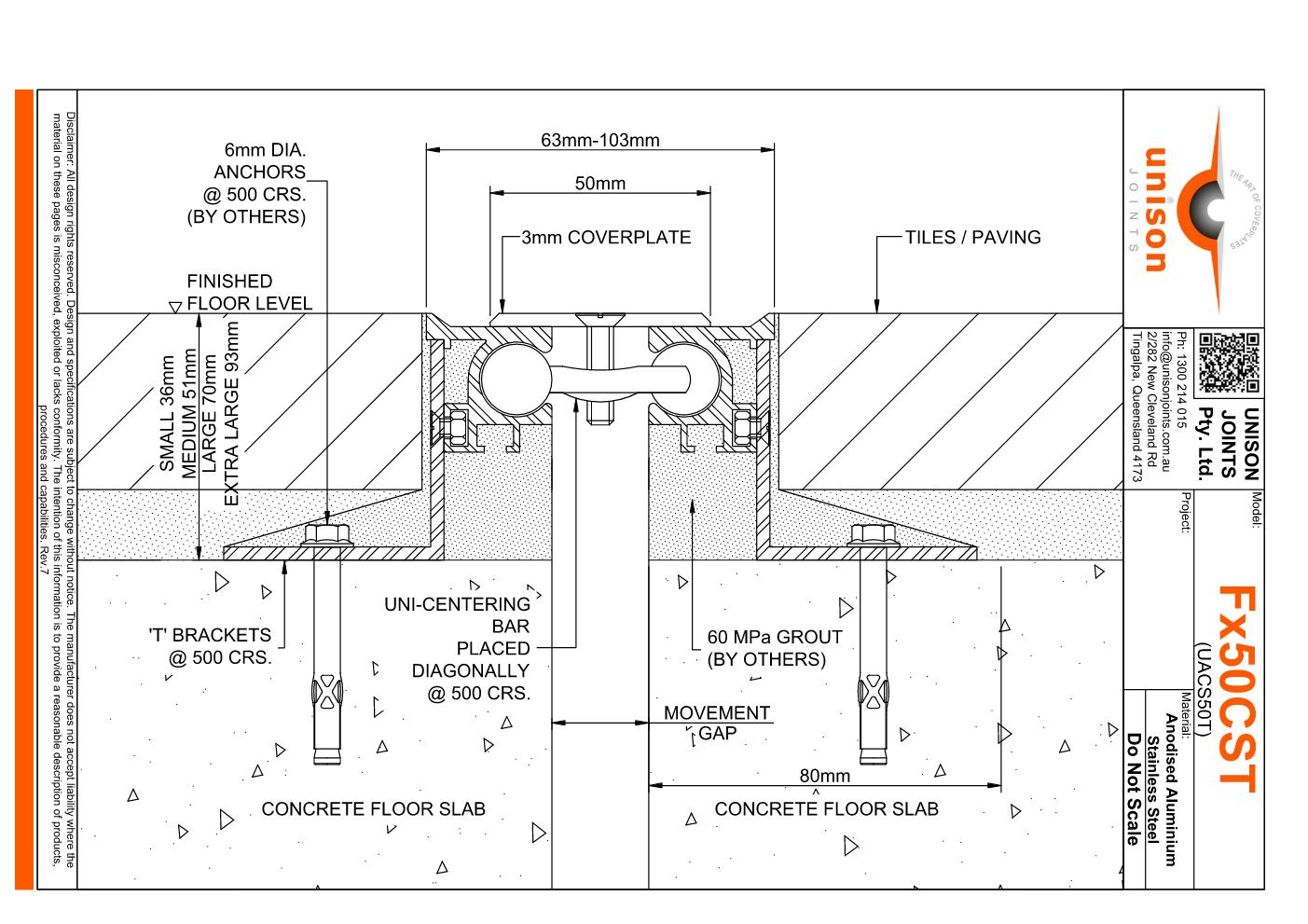

Fx50CST

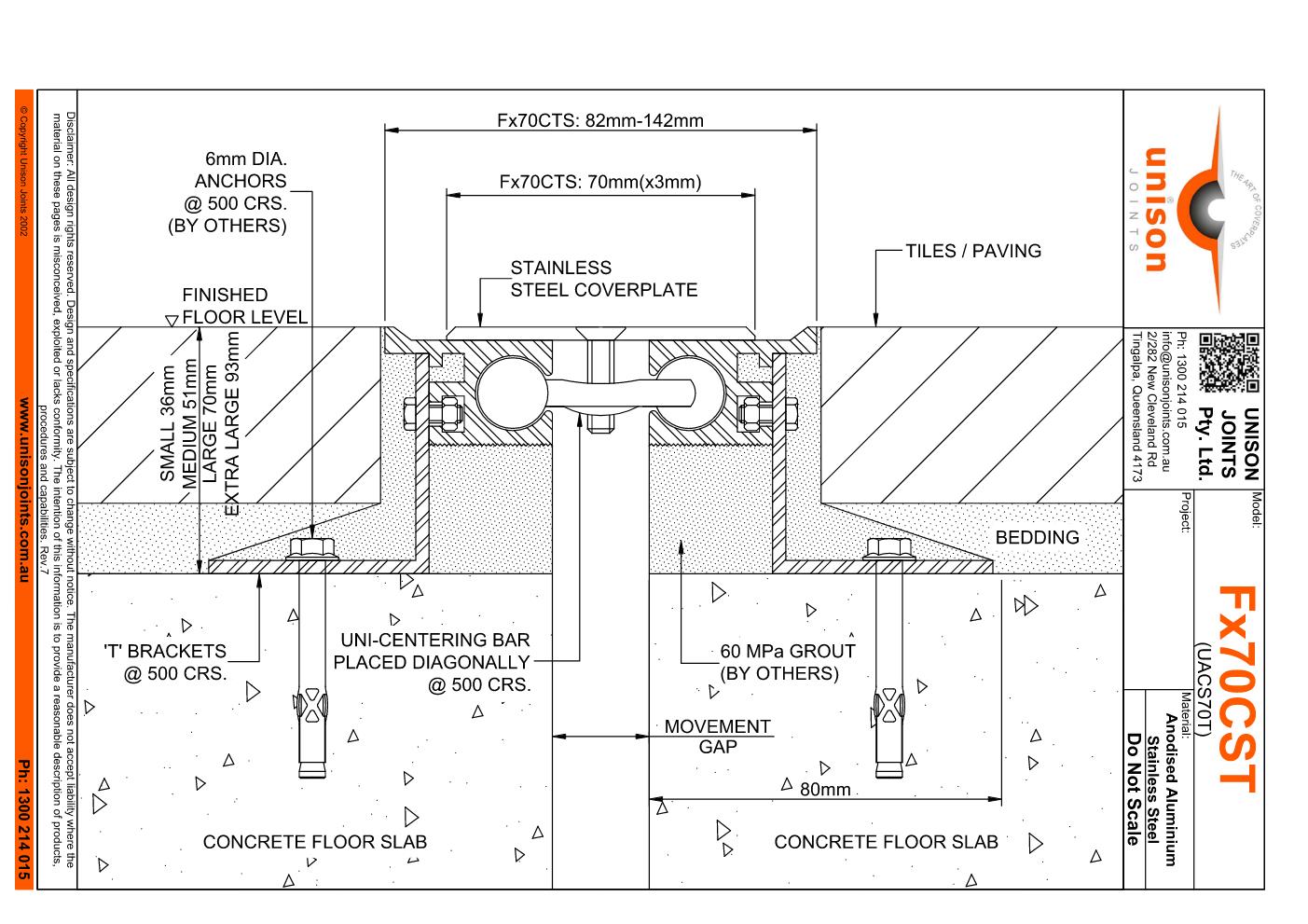

Fx70CST

Fx100CST

Fx120CST

No Bump Coverplate

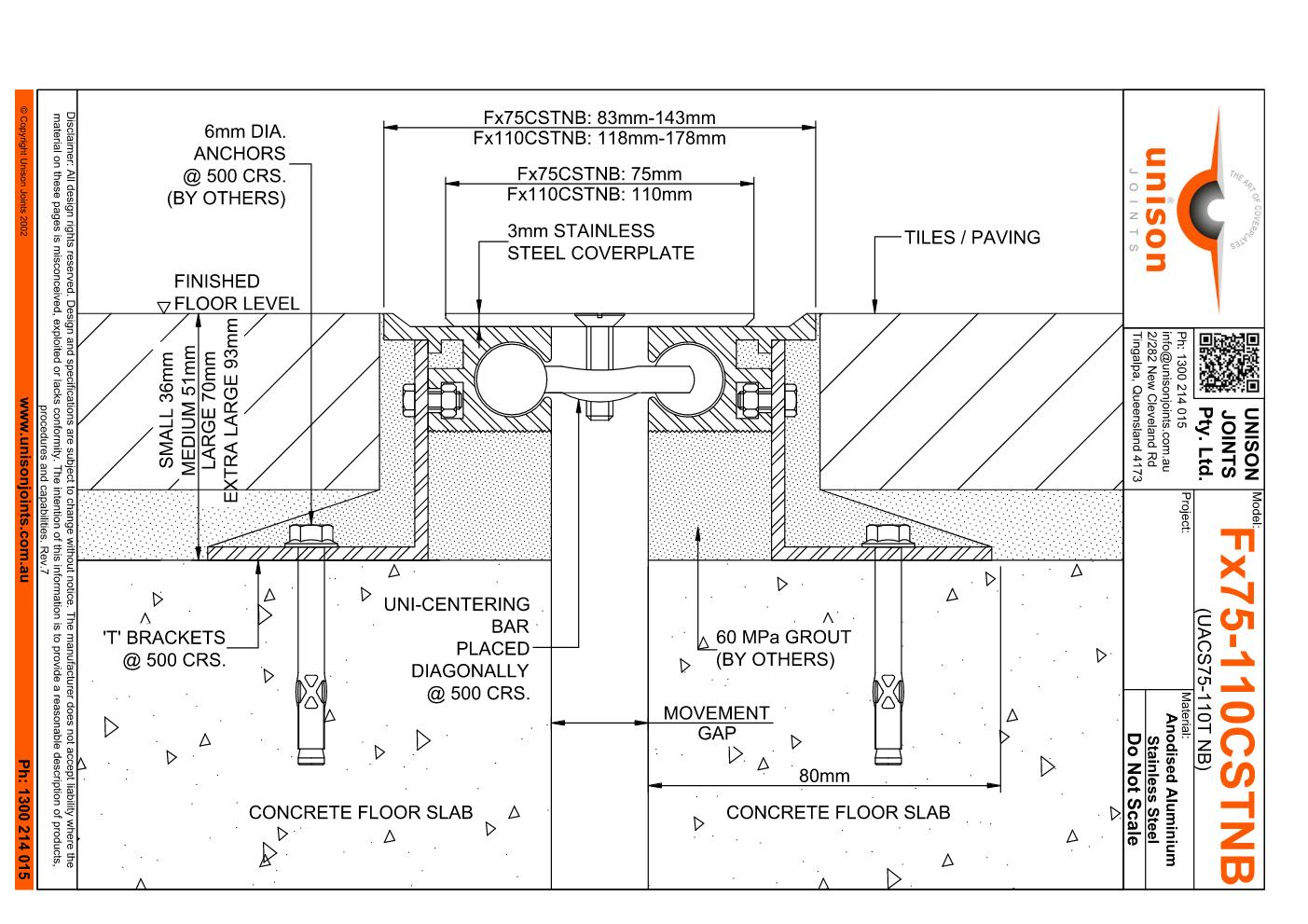

Fx75-110CSTNB

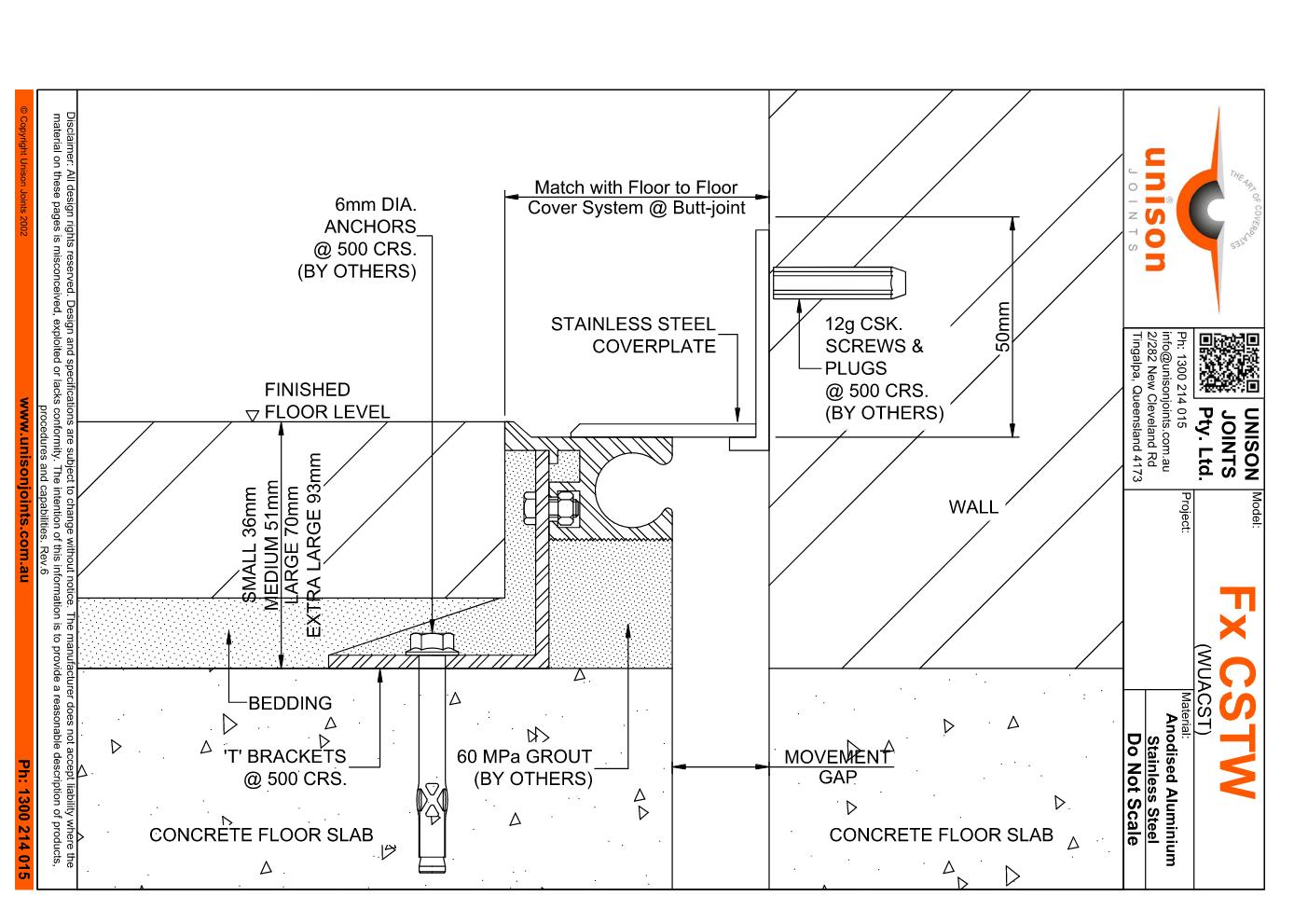

Floor to Wall System

Fx CSTW
