Floor Expansion Joint

Fx CST

Developed from the FxCS range which is the most widely used stainless steel floor coverplate expansion joint system. FxCST is suited for integration with deep floor finishes such as terrazzo, pavers, marble, granite and other stone-tiles. It is used in retail centres, airports terminals, apartment developments, public buildings etc.

Indoor and Outdoor
Trolley Safe
Multi Directional
P2 Slip Resistance Rating
Illustrations

Typical Dimensions

Performance
Multi Directional
P2 Slip Resistance Rating

Performance

  • Concealed Fixings
  • Thermally Dynamic
  • High Capacity
  • Low Maintenance
  • Bead blasted cover plate Slip resistance Class V Tested to AS4586 2013

Compatible Finishes

  • Tiles
  • Paver
  • Terrazzo
  • Exposed Aggregate
  • Stone
  • Granite
Material Options

Standard Finish

No.4 Stainless Steel

Length

4.8m

Cover Plates

Stainless Steel

Cover Plate Options

No Bump
Bead Blasted

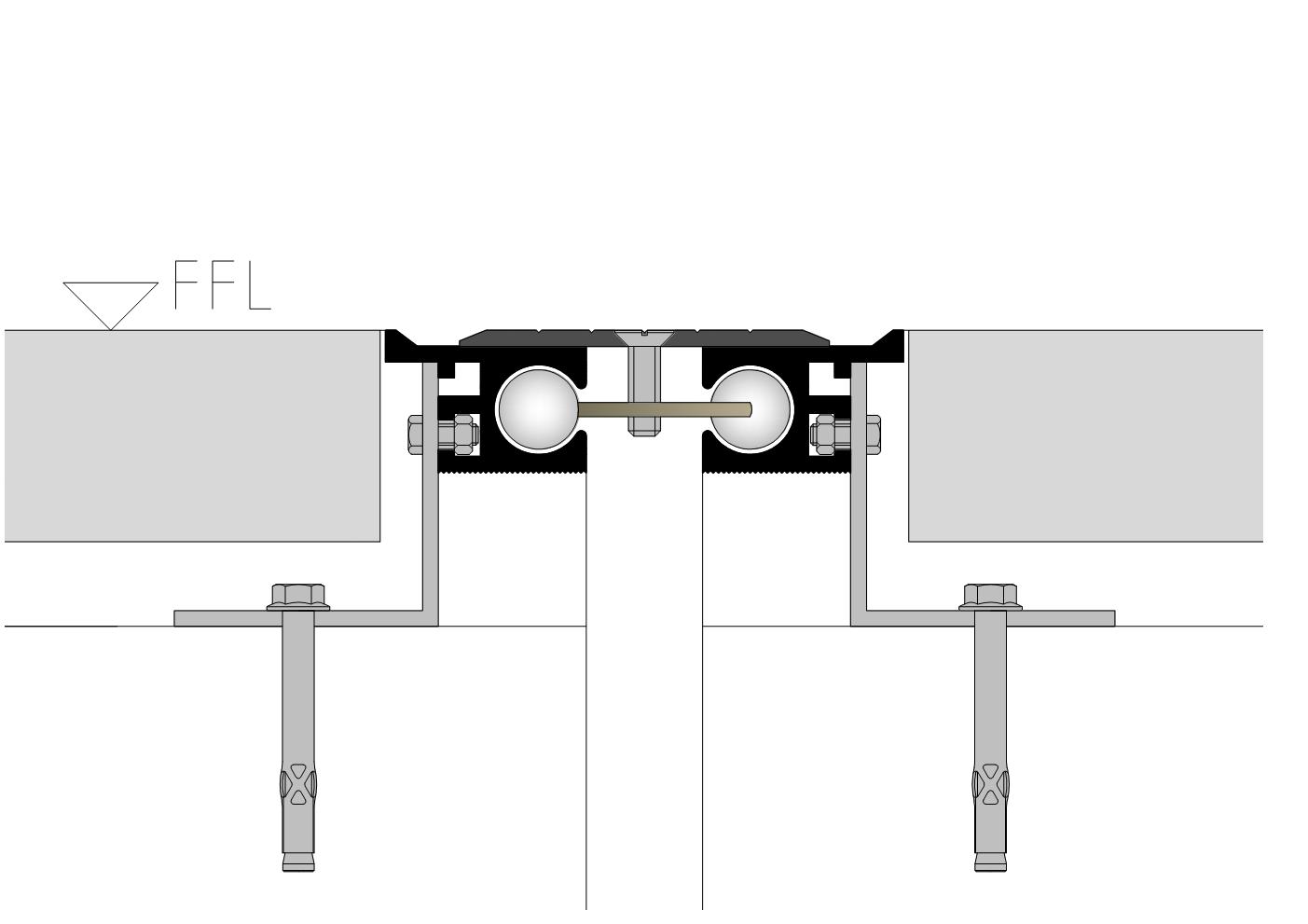

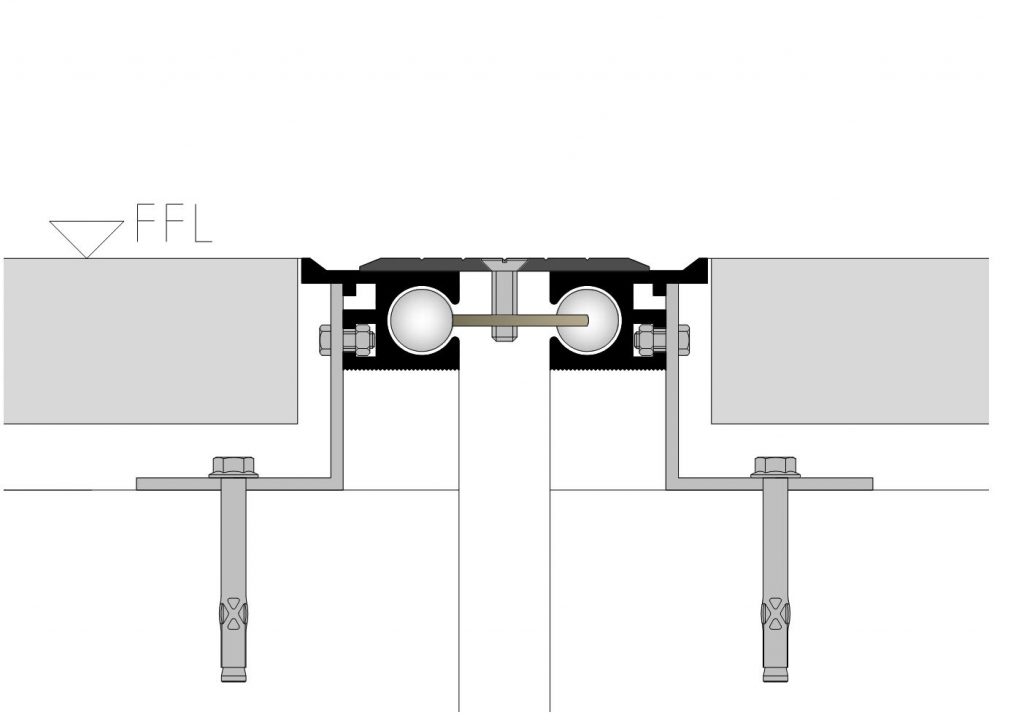

Detail Drawings

Stainless Steel Coverplate

Fx50CST

Fx70CST

Fx100CST

Fx120CST

No Bump Coverplate

Fx75-110CSTNB

Floor to Wall System

Fx CSTW
