Stainless Steel Floor Expansion Joint

Fx CS Most commonly installed

Stainless Steel Floor Cover Plate is the leading choice for floor expansion joint systems, renowned for its sleek, aesthetically pleasing design. Widely used in retail centers, supermarket and department store trading floors, airport terminals, apartment developments, and public buildings, it combines exceptional functionality with visual appeal. Designed to support multi-directional movement, the FxCS features composite centering bars and is compatible with a broad range of floor finishes, making it an ideal solution for high-traffic areas that demand both performance and style.

Indoor and Outdoor
Trolley Safe
Multi Directional
P2 Slip Resistance Rating
Illustrations

Typical Dimensions

Performance
Multi Directional
P2 Slip Resistance Rating

Performance

  • Concealed Fixings
  • High Capacity
  • Low Maintenance
  • Bead blasted cover plate Slip resistance Class V Tested to AS4586 2013
  • P2 Slip Resistance
  • Multi Directional

Compatible Finishes

  • Tiles
  • Vinyl
  • Carpet
  • Epoxy
Material Options

Standard Finish

No.4 Stainless Steel

Length

4.8m

Cover Plates

Stainless Steel

Cover Plate Options

No Bump
Bead Blasted
Detail Drawings

Stainless Sttel Coverplate

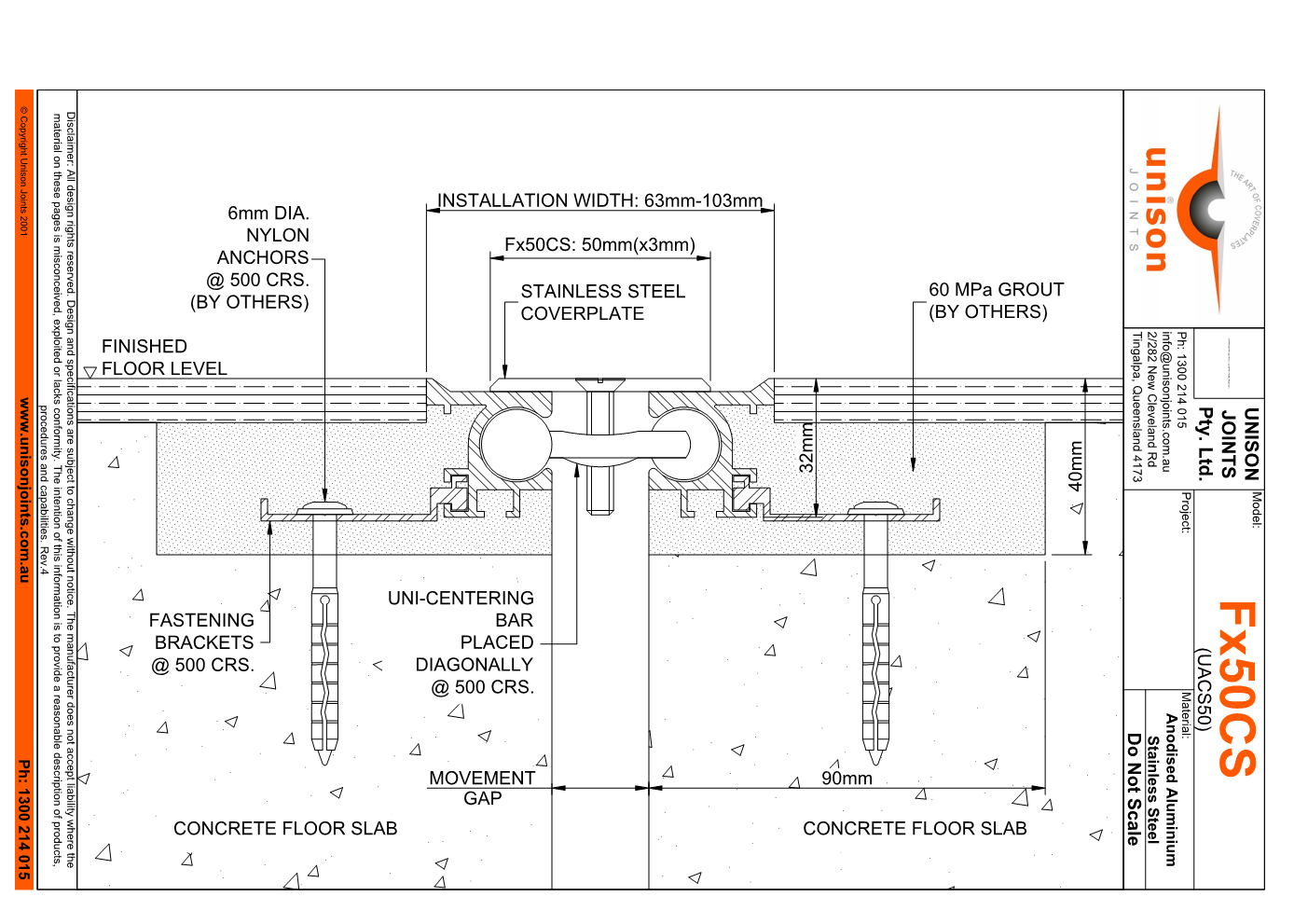

Fx50CS

Fx70CS

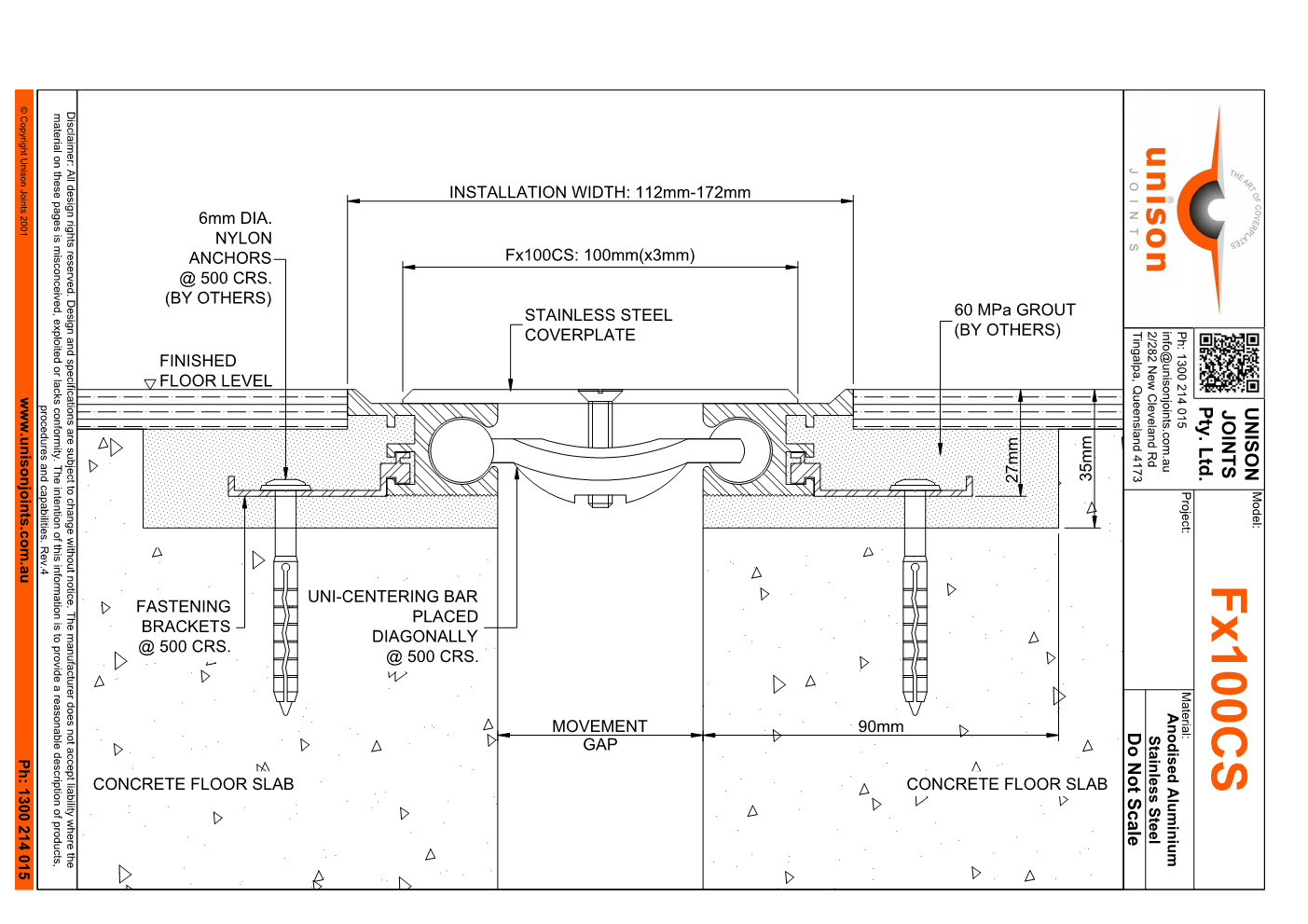

Fx100CS

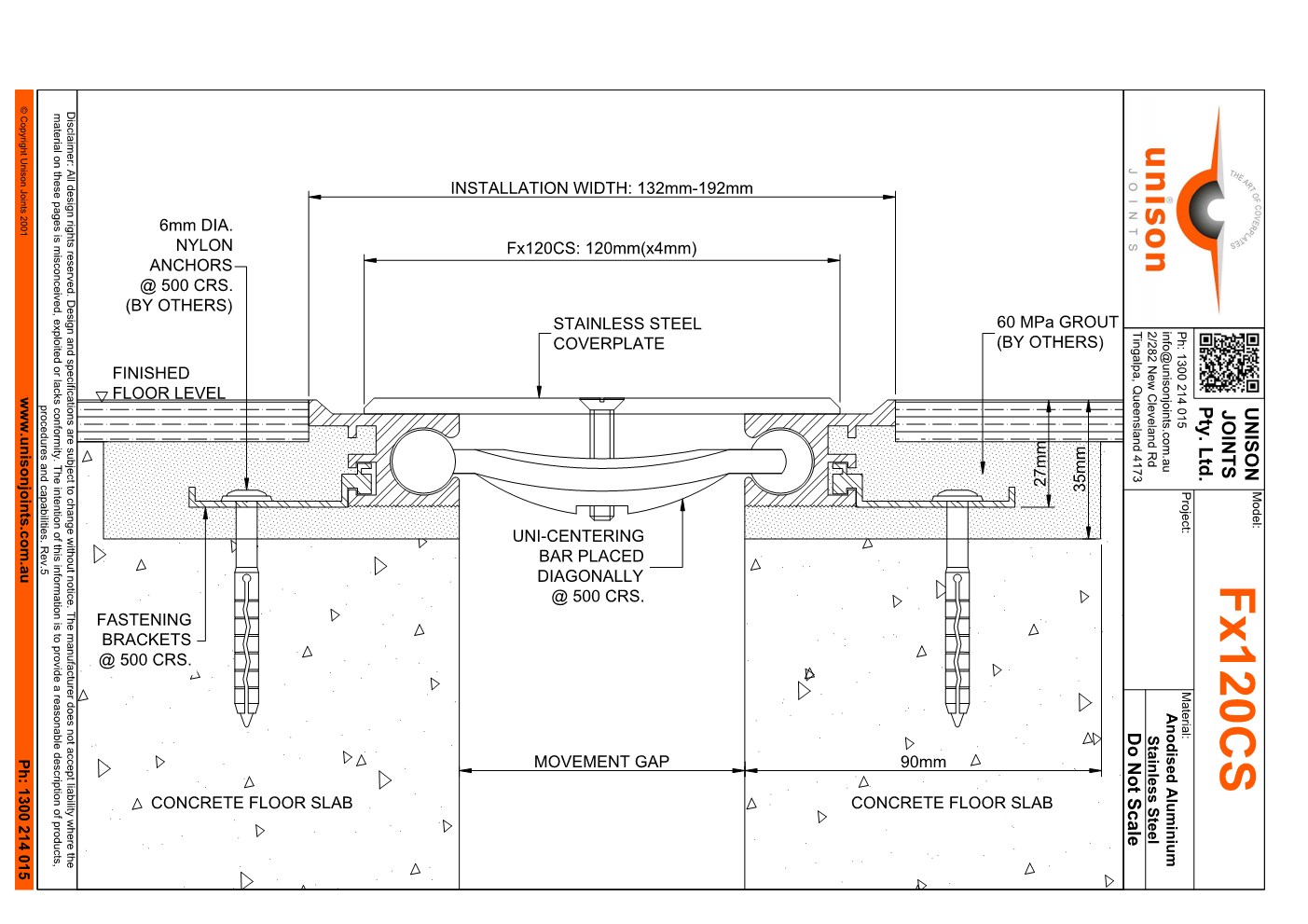

Fx120CS

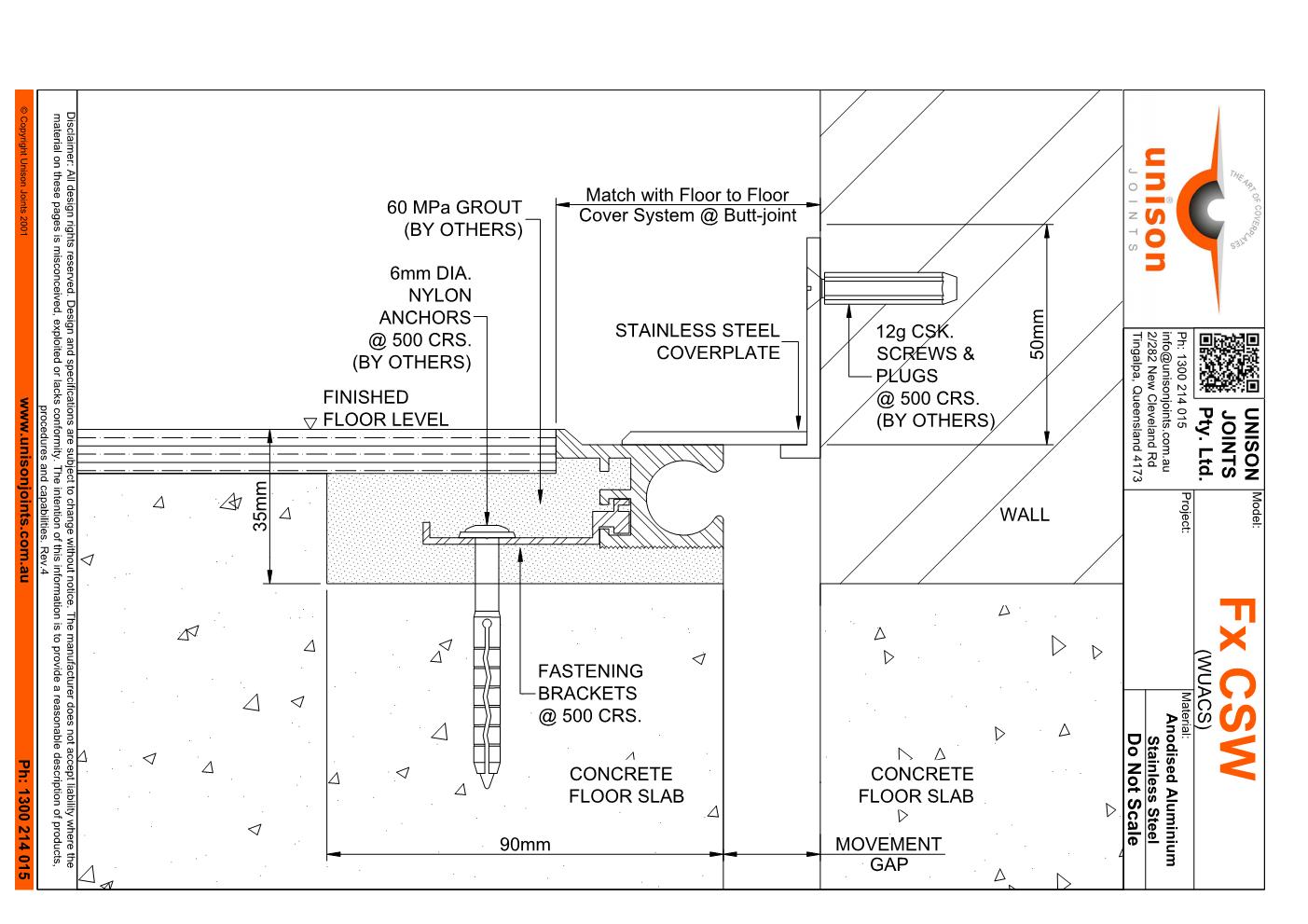

Floor to Wall System

Fx CSW
