Tile or Paver Inlay Floor Expansion Joint Cover
Fx CP

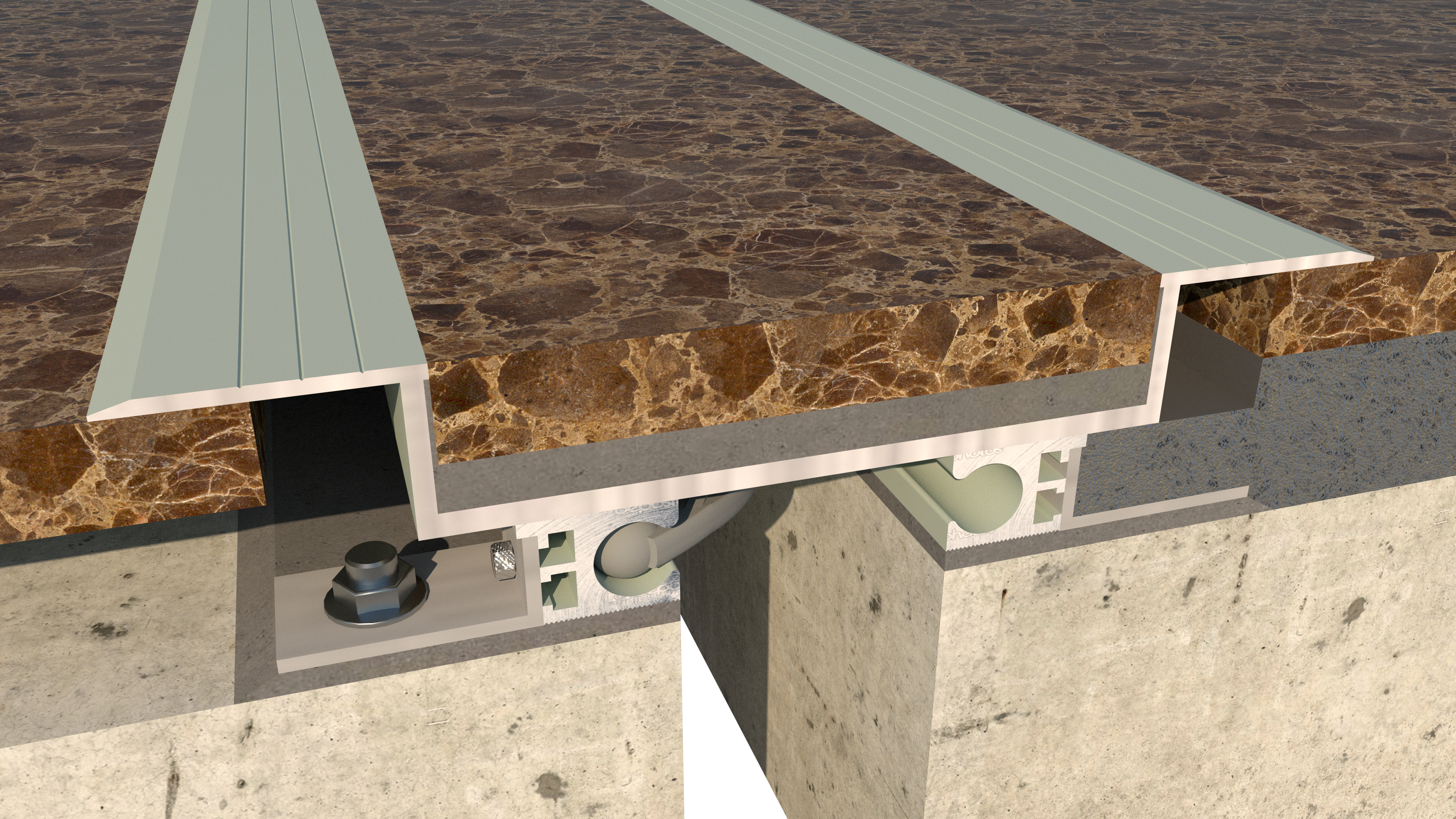

Tile Inlay expansion joint cover plate. The Fx CP expansion joint system is designed for multi-directional movement and substantial structural flexibility. Ideal for integration with thick floor finishes such as pavers, tiles, and concrete, it is both functional and aesthetically discreet. Fx CP cover plates are available in natural anodised, colour anodised, or bead-blasted aluminum finishes, offering versatile design options. With its low-profile, less obtrusive appearance, Fx CP is particularly suited for landscapes, streetscapes, commercial and public buildings, stadiums, and similar high-traffic environments.

Indoor and Outdoor

Light Vehicle

Multi Directional

P5 Slip Resistance Rating
Illustrations
Typical Dimensions
Performance

Material Options

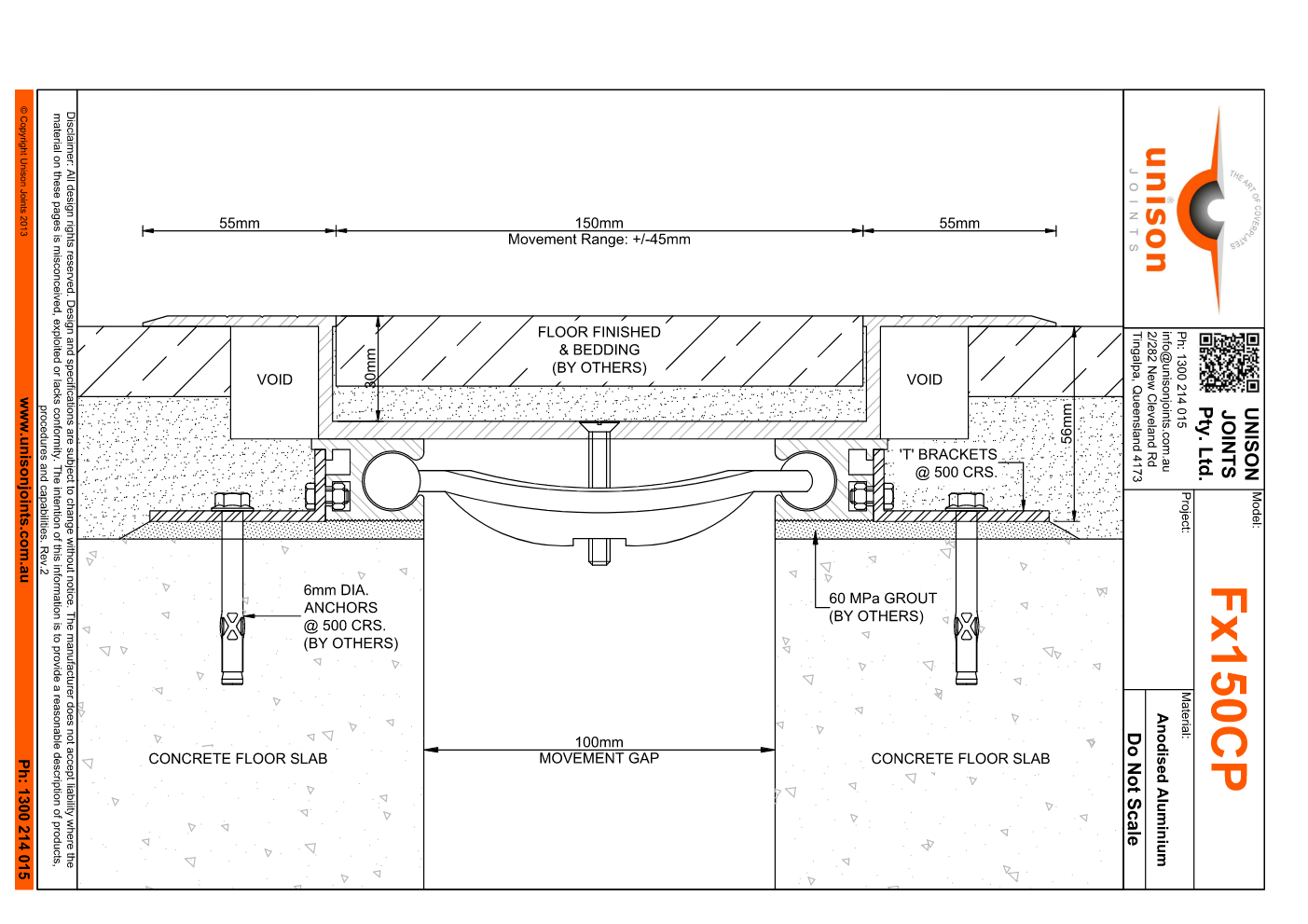

Detail Drawings

Multi Directional

P5 Slip Resistance Rating
Performance
- Concealed Fixings
- High Capacity
- Low Maintenance
- Multi Directional
- P5 Slip Resistance
Compatible Finishes
- Paving
- Tiles
- Concrete
Standard Finish
Anodised Aluminium
Length
4.8m
Cover Plates

Clear Anodised

Colour Anodised
Cover Plate Options

Bead Blasted
