Versatile Aluminium Expansion Joint Cover

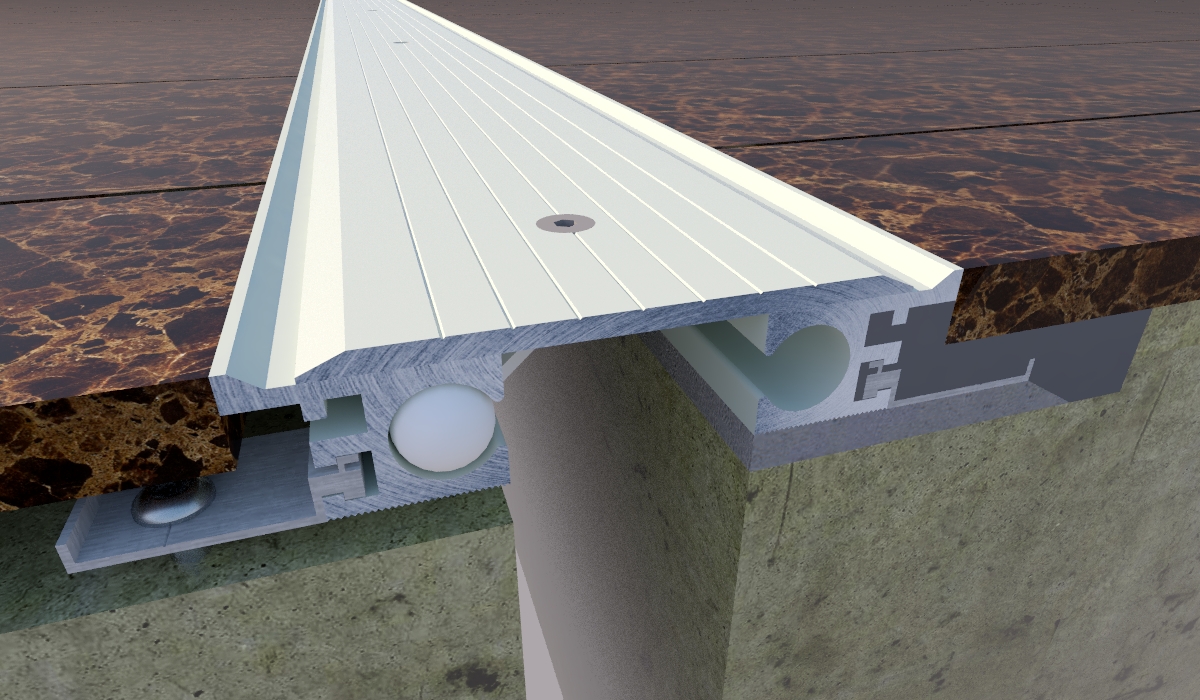

Fx C

Most widely used floor expansion joint system. FxC is used in retail centres, supermarket and department store trading floors, airports terminals, apartment developments & public building.  Designed to support multi-directional movement, the FxC features and composite centre bars.  It is compatible with a broad range of floor finishes. Cover plate available in Stainless Steel, Bead-blasted Aluminium, Natural or Colour Anodised Aluminium. Ideal solution for high-end traffic areas that demand both performance and style.





Indoor and Outdoor
Trolley Safe
Multi Directional
P3 Slip Resistance Rating
Illustrations

Typical Dimensions

Performance
Multi Directional
P3 Slip Resistance Rating

Performance

  • Concealed Fixings
  • Thermally Dynamic
  • High Capacity
  • Low Maintenance
  • Bead blasted cover plate slip resistance Class V tested to AS4586 2013

Compatible Finishes

  • Tiles
  • Vinyl
  • Carpet
  • Epoxy
Material Options

Standard Finish

Anodised

Length

4.8m

Cover Plates

Clear Anodised
Linished

Cover Plate Options

No Bump
Bead Blasted

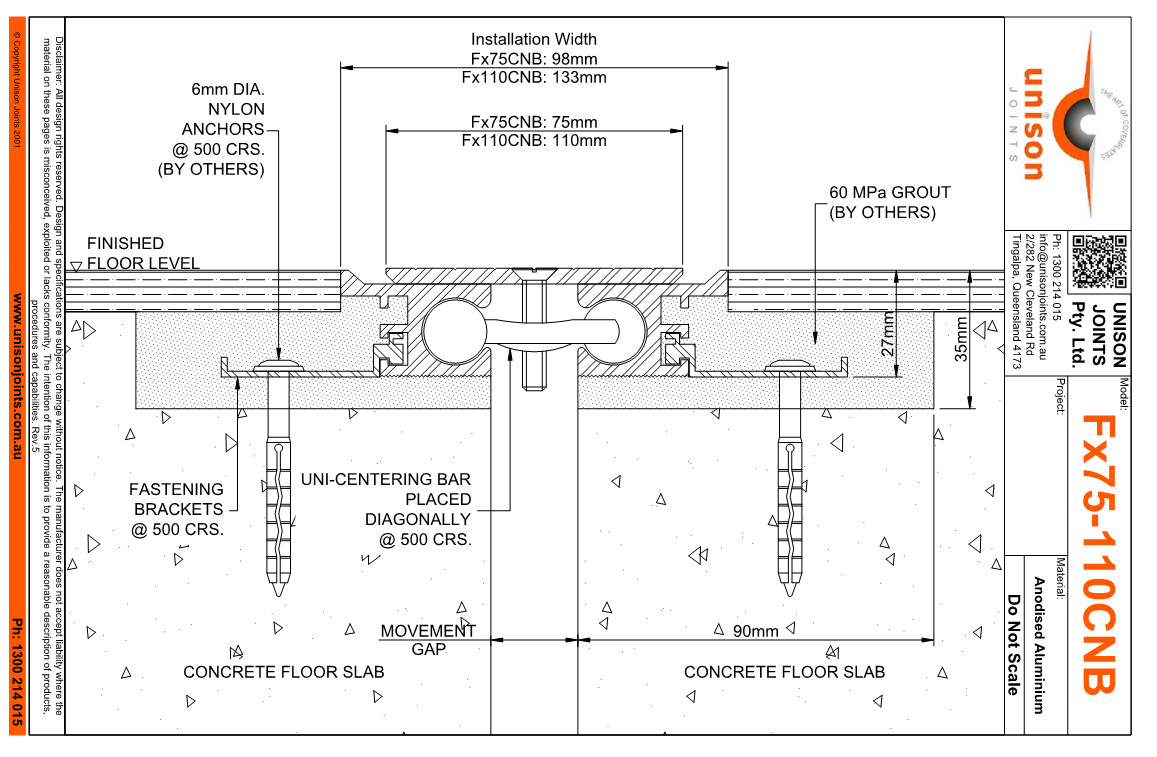

Detail Drawings

Aluminium Coverplate

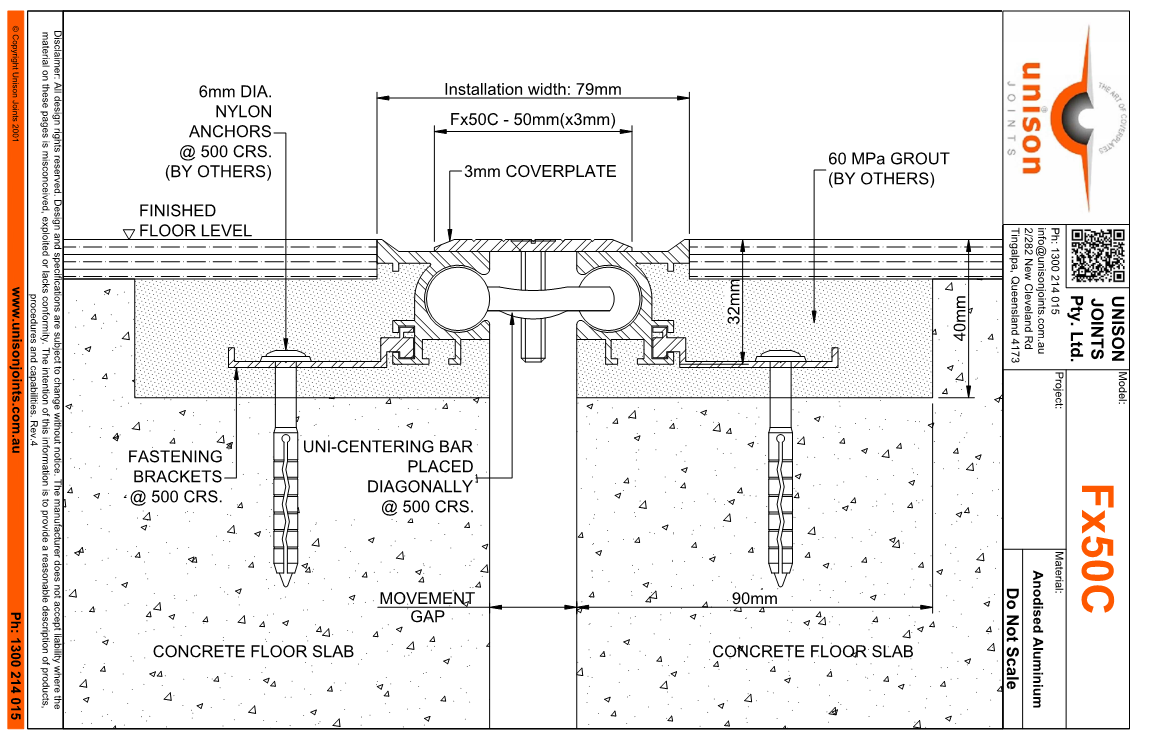

Fx50C

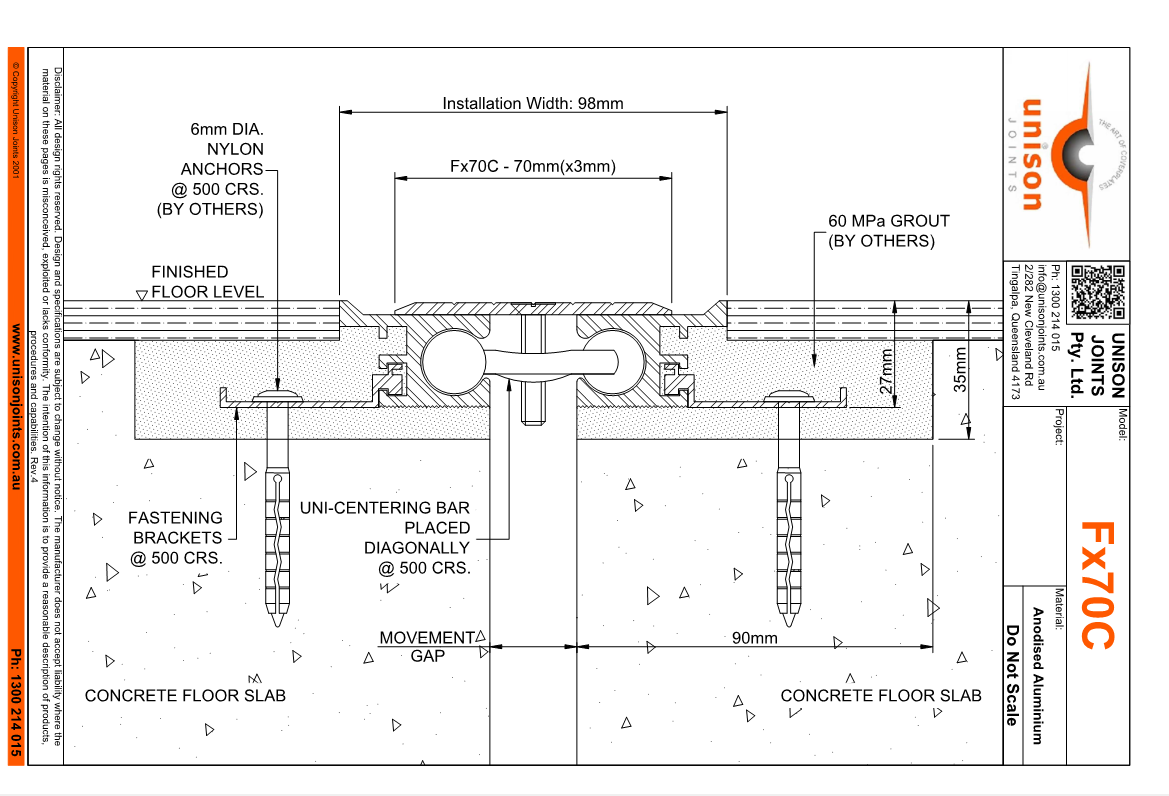

Fx70C

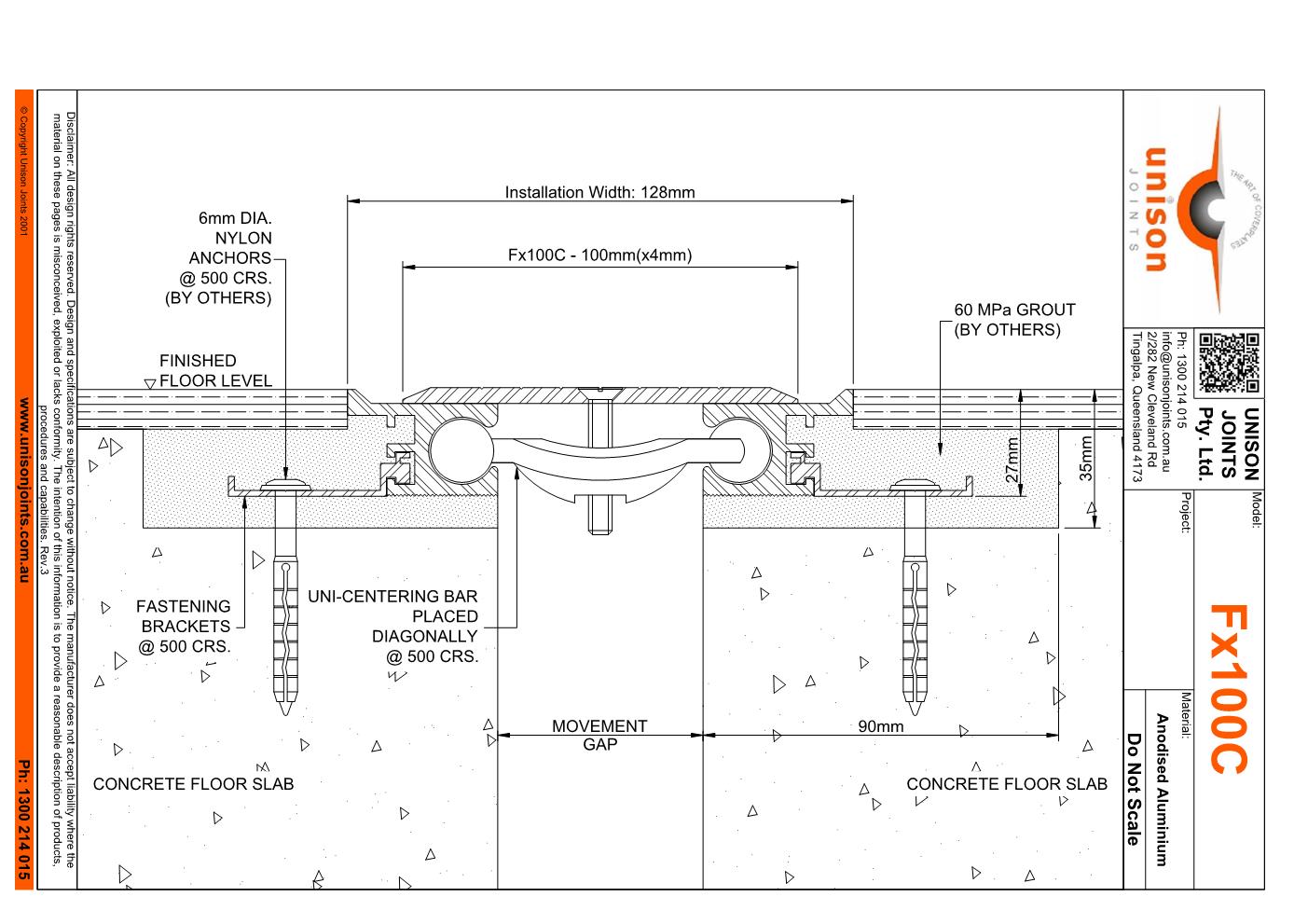

Fx100C

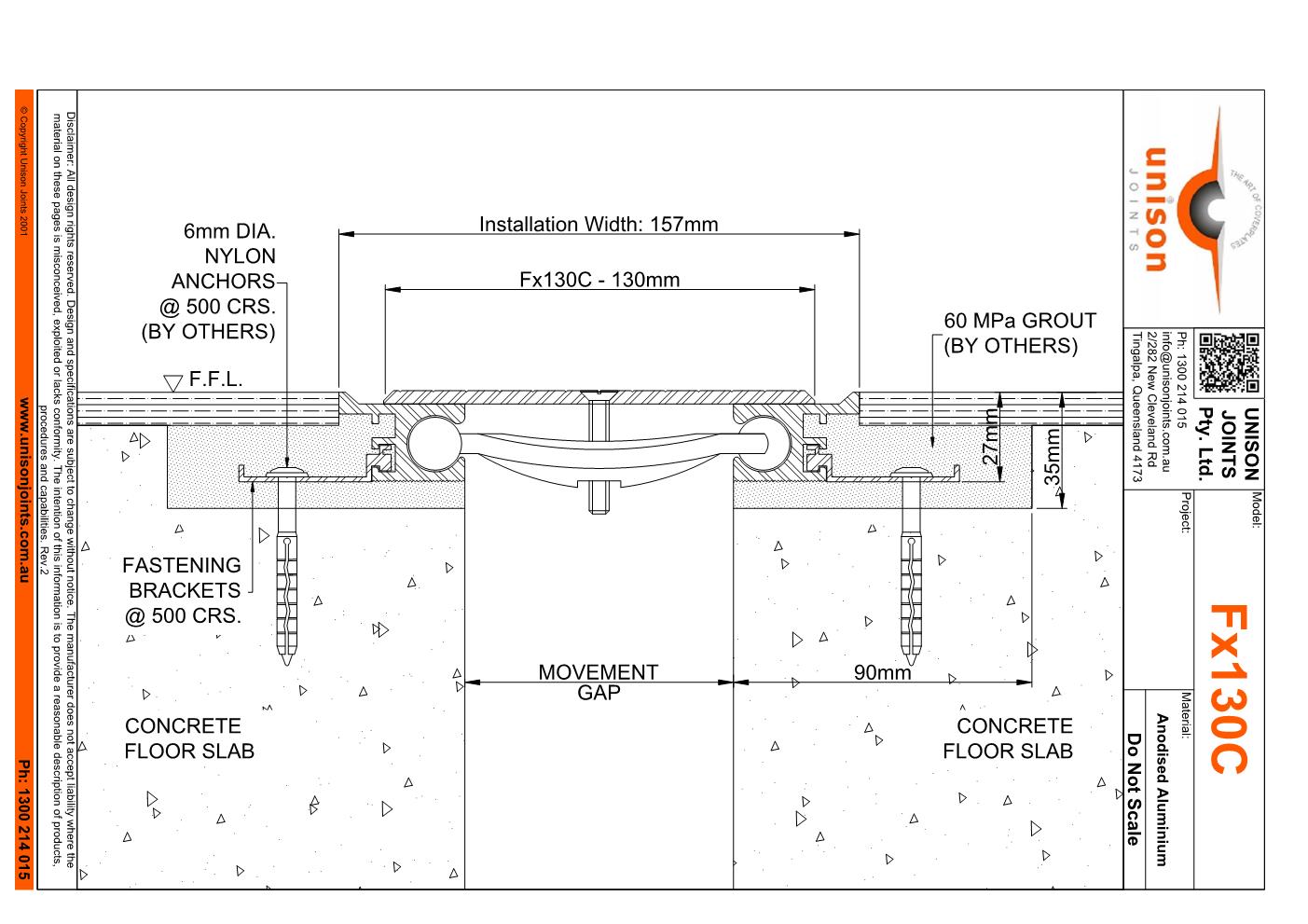

Fx130C

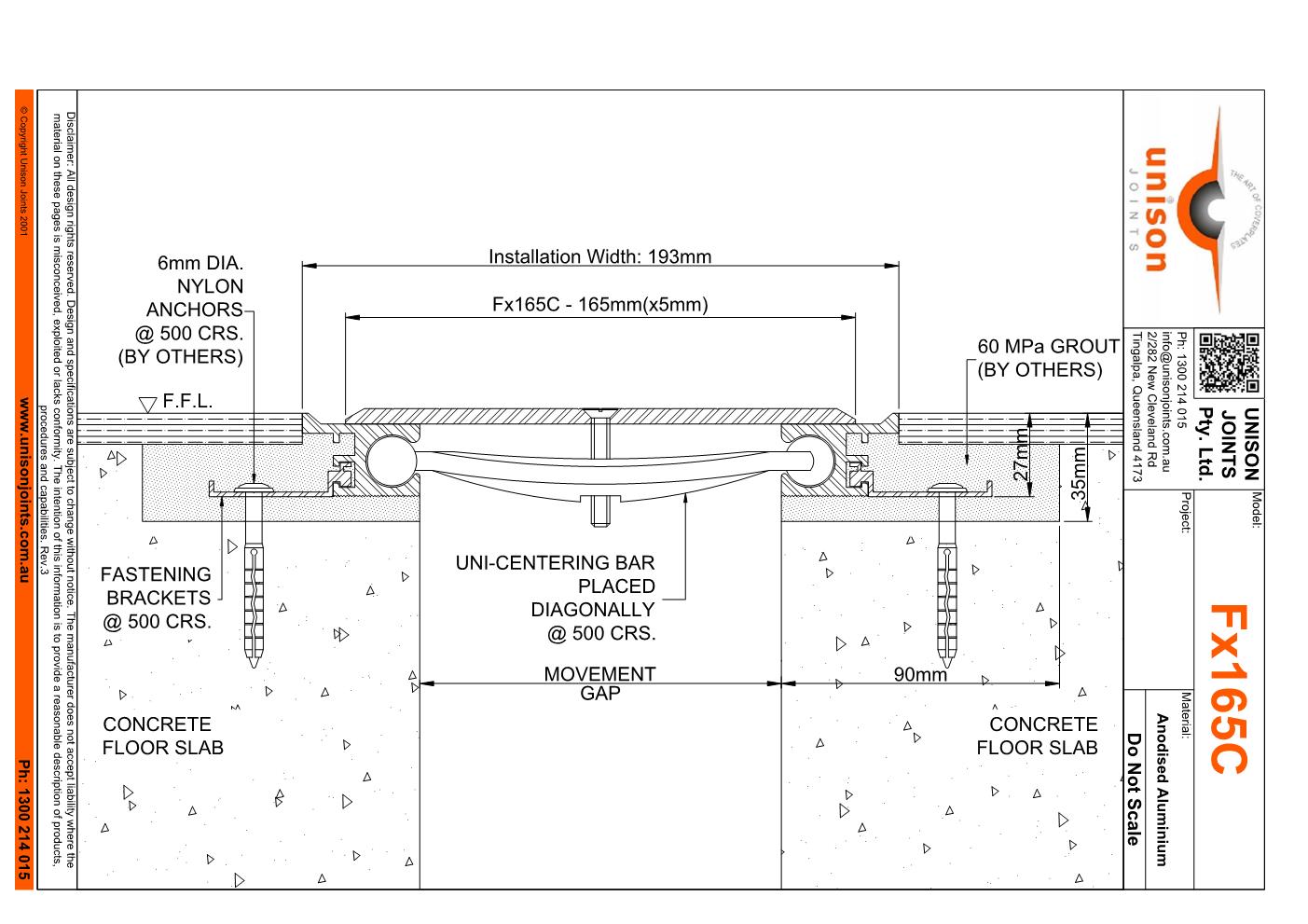

Fx165C

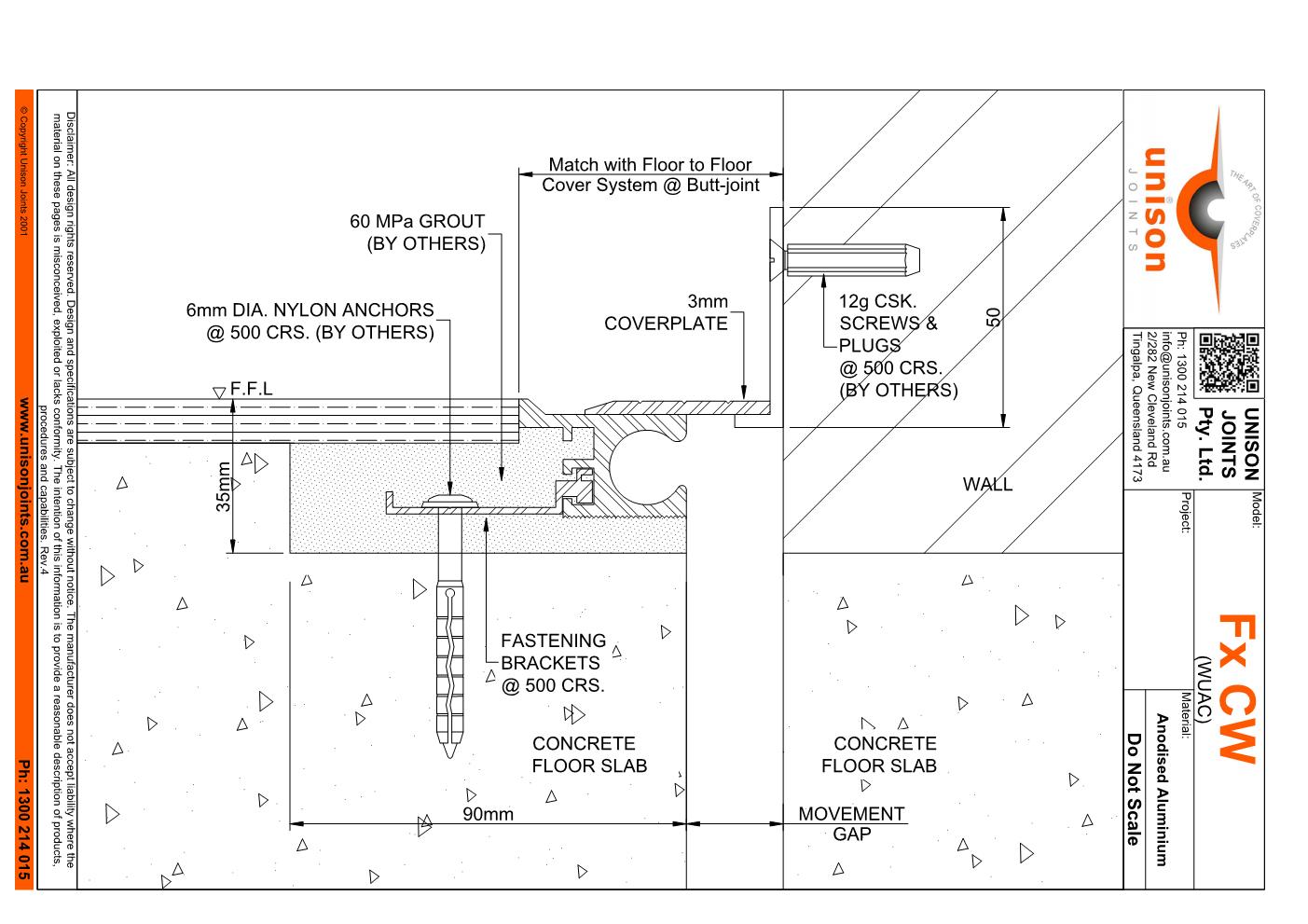

Floor to Wall System

Fx CW
