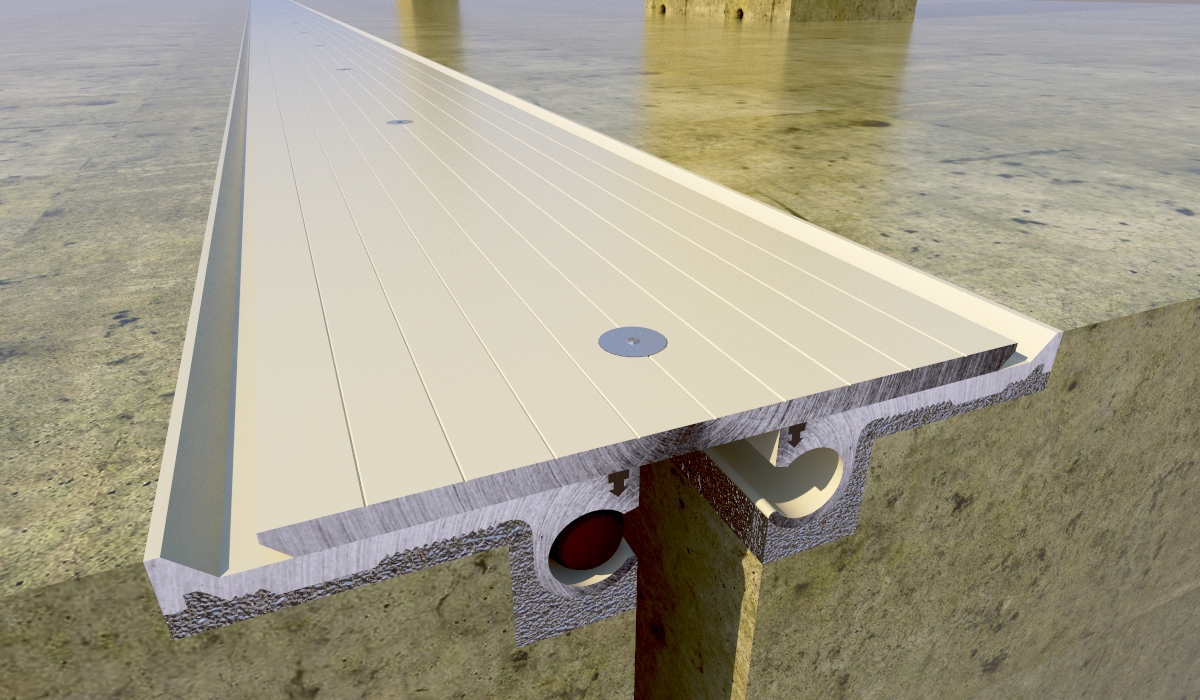

Low-Profile Heavy Duty No Bump Expansion Joint Cover

Dz H

Revolutionary design combines slim visual width, low profile and hidden fixings. This heavy duty floor coverplate system is designed for use in polished concrete, roll-coat epoxy, tiles, vinyl and other floor finishes. Low profile and slender width allows for minimal substrate rebating. Leaves no visual grout line when applied to polish or trowel-finished concrete. Suitable for bulky-goods retail (ie Masters, Ikea & supermarket loading dock) with rebating constraints. Stadiums, transit-centres, carparks and other buildings with suspended-slab concrete.

Indoor and Outdoor
Car Park
Heavy Vehicle
Multi Directional
P3 Slip Resistance Rating

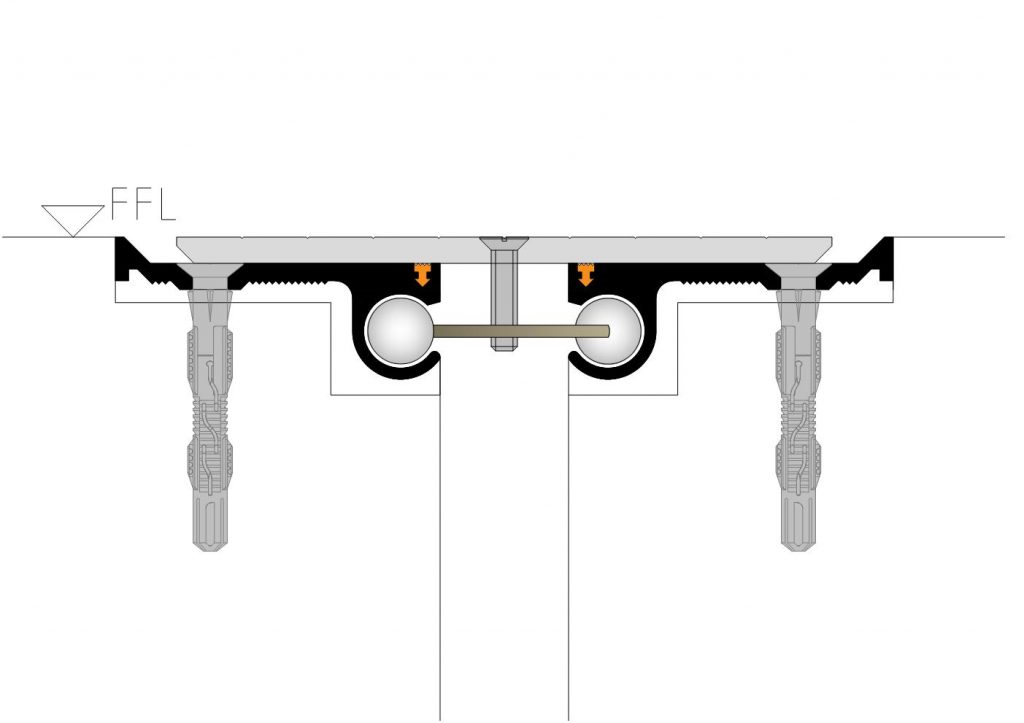

Illustrations

Typical Dimensions

Performance
Multi Directional
P3 Slip Resistance Rating

Performance

  • Extra heavy duty
  • Concealed Fixings
  • Low profile / Retrofit
  • High Capacity
  • Bead blasted cover plate slip resistance classification V tested to AS4586 2013

Compatible Finishes

  • Tiles
  • Vinyl
  • Epoxy
  • Exposed Concrete
Material Options

Standard Finish

Anodised

Length

4.8m

Cover Plates

Mill Finish Aluminium
Clear Anodised
Stainless Steel
Linished

Cover Plate Options

No Bump
Bead Blasted

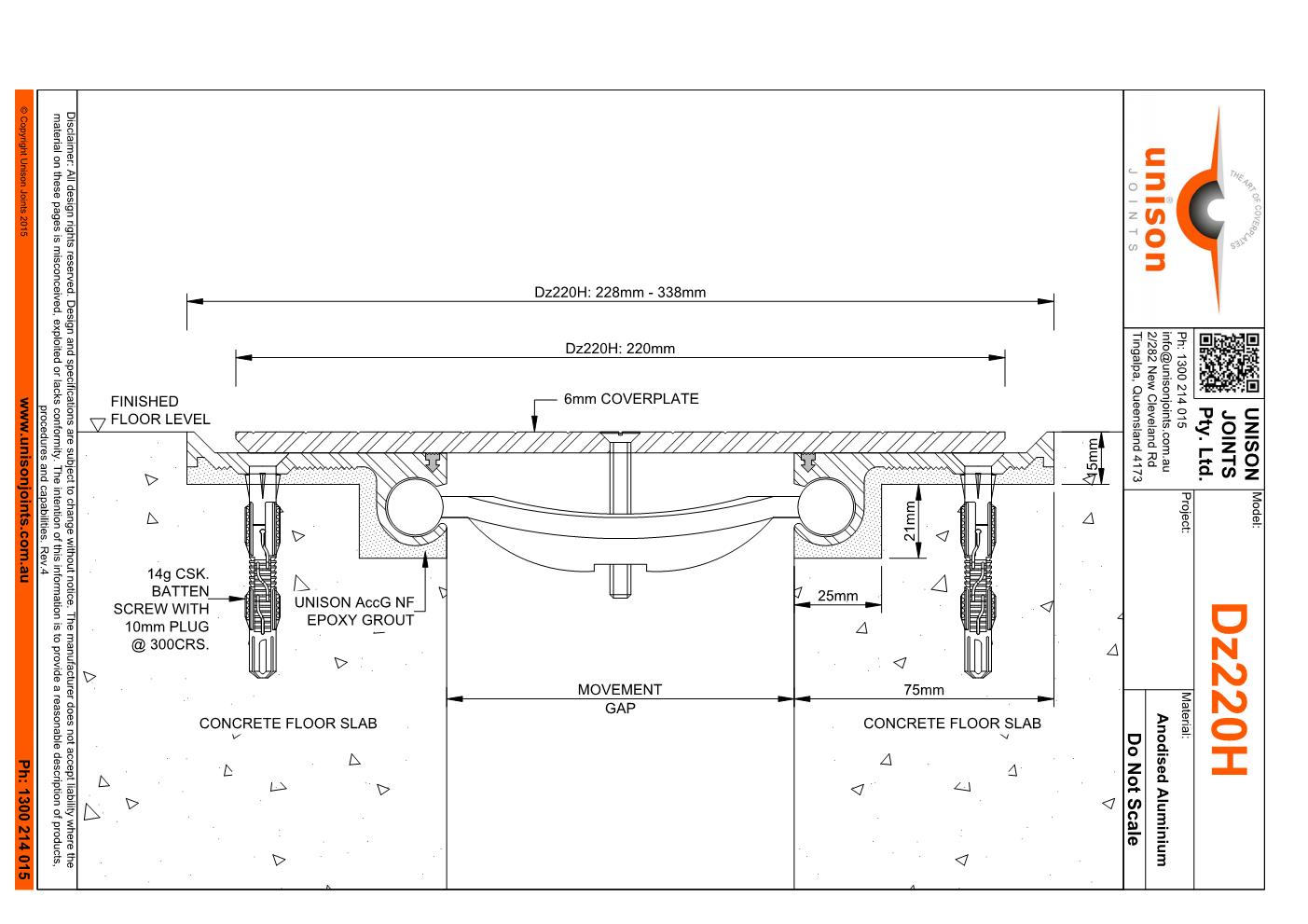

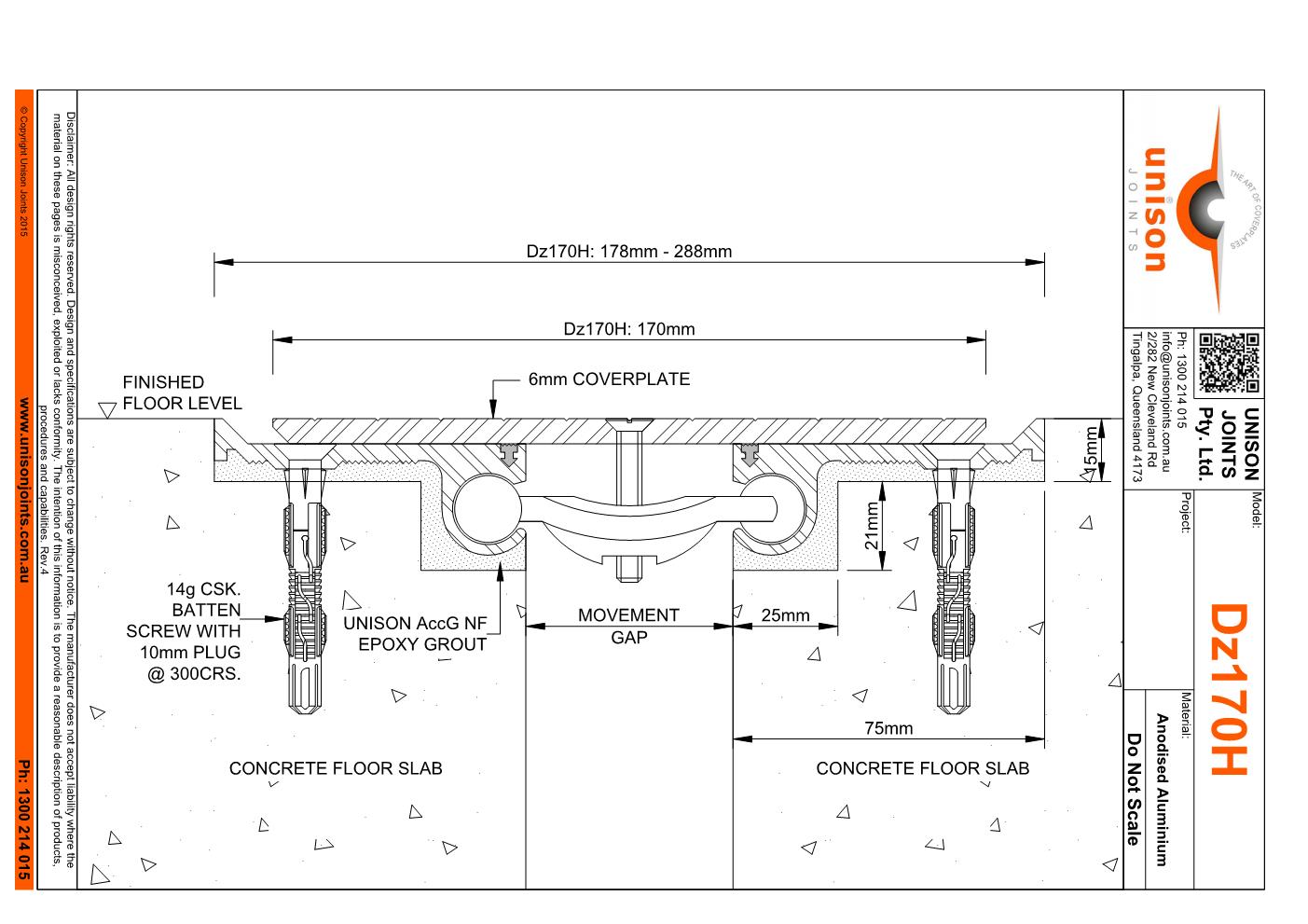

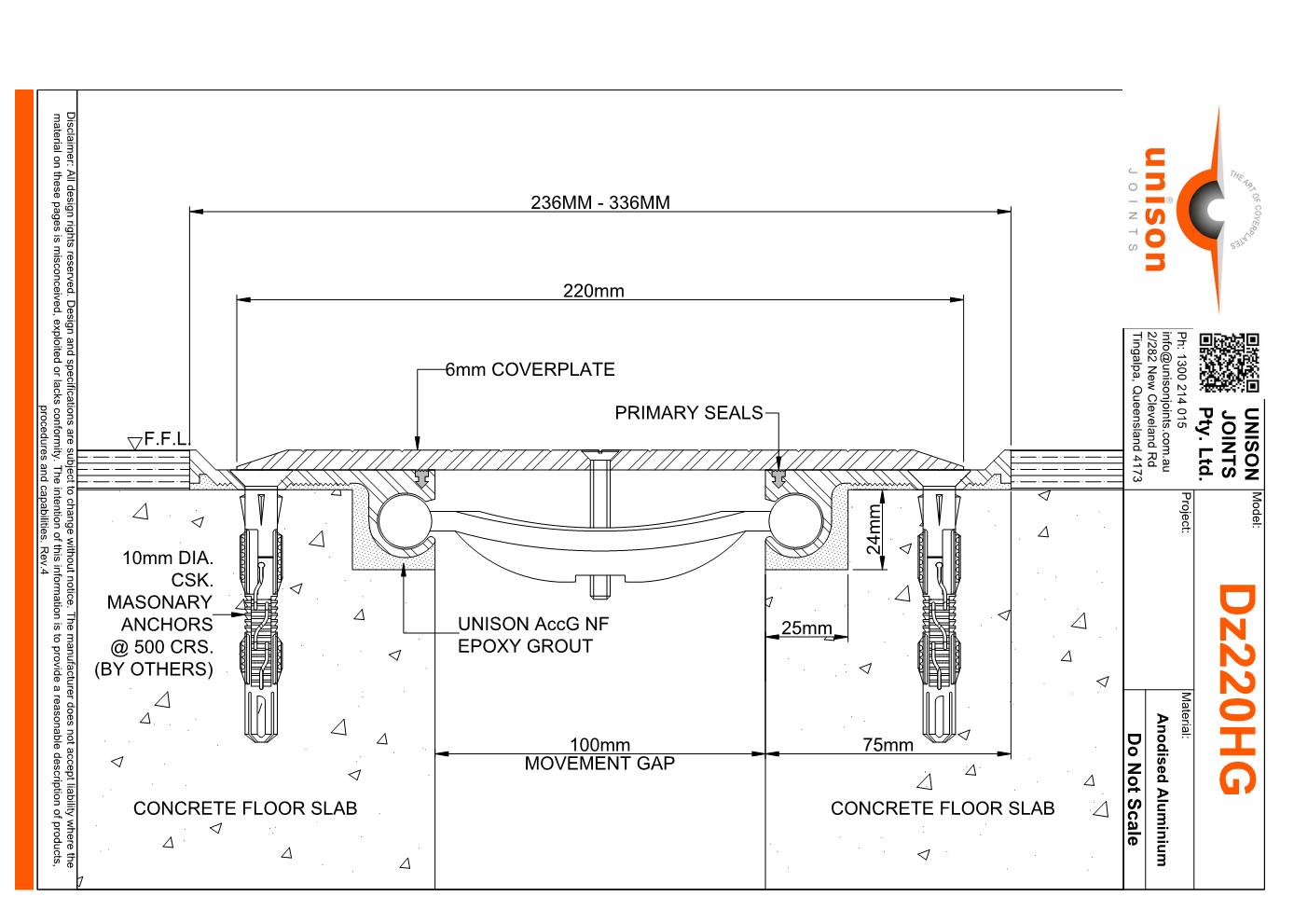

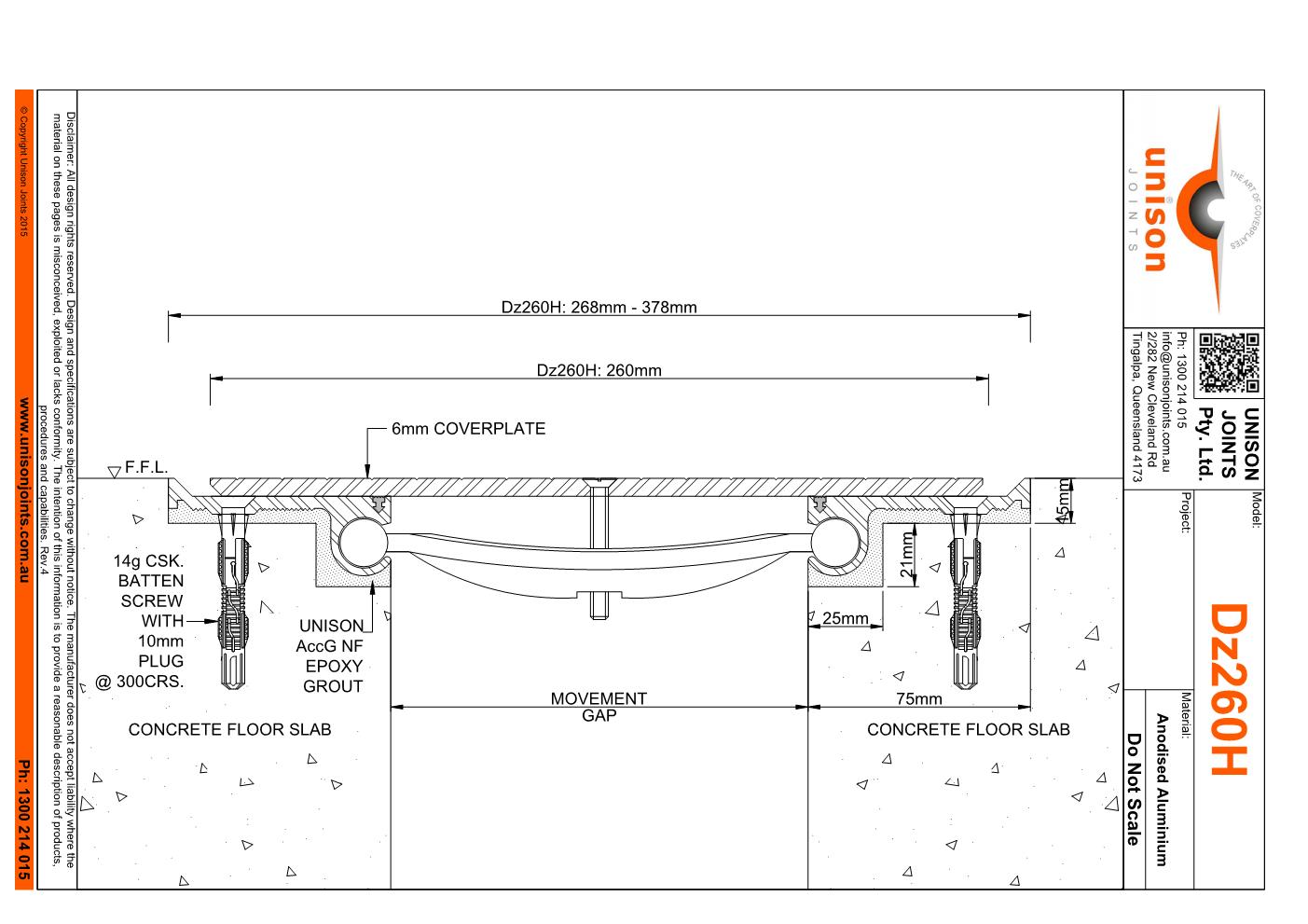

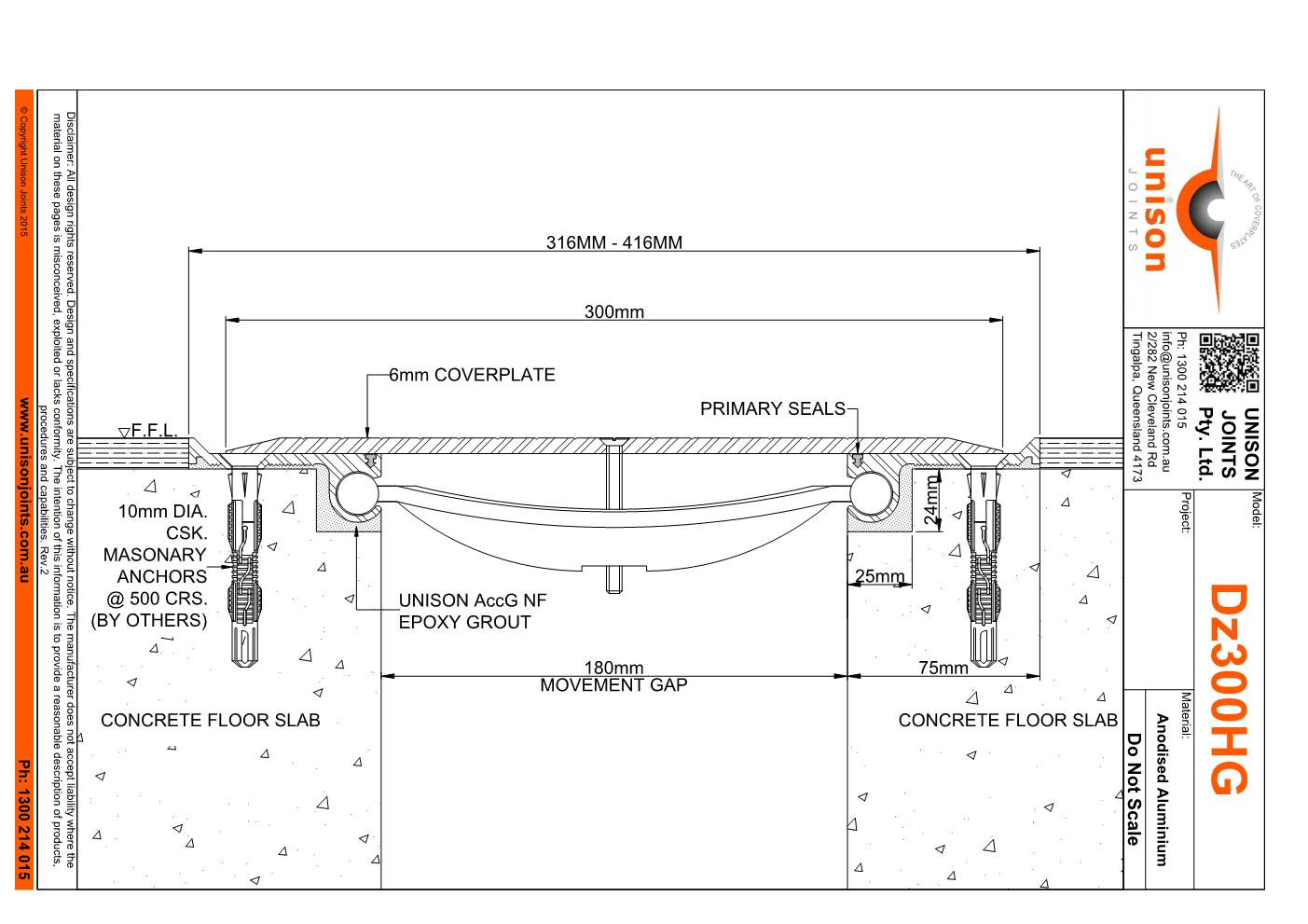

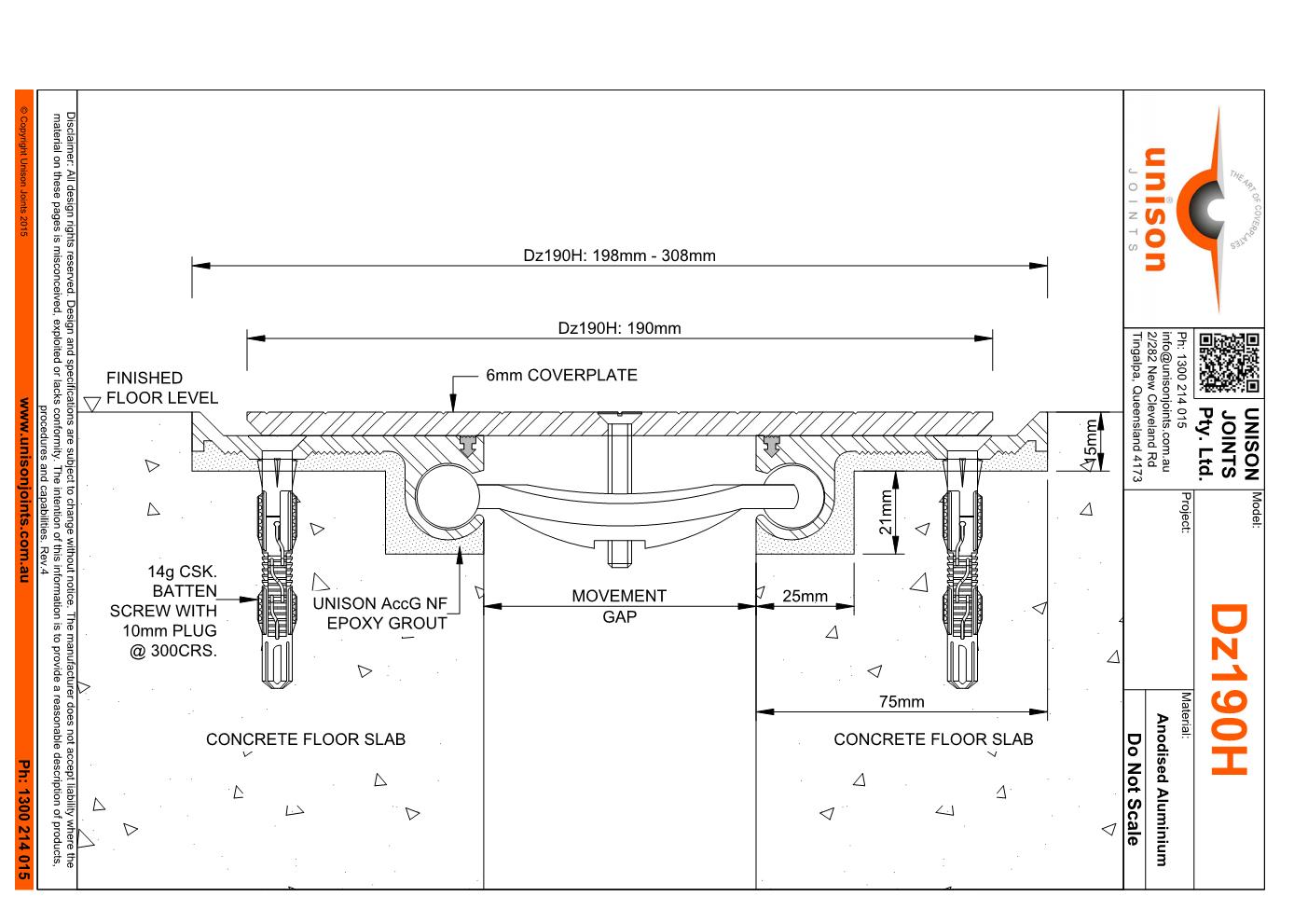

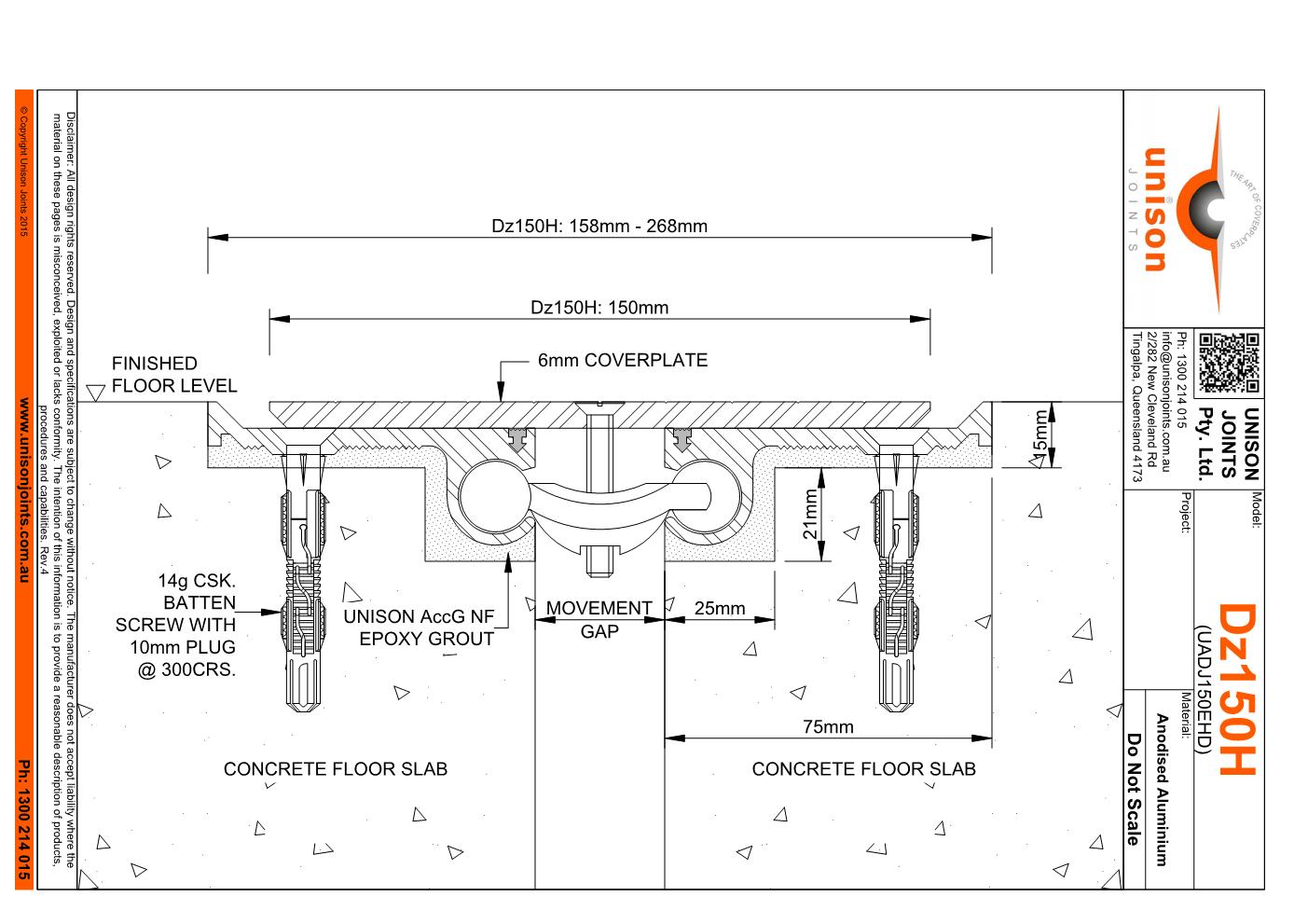

Detail Drawings

Standard Wall

DzHW

Ramped Edge Wall

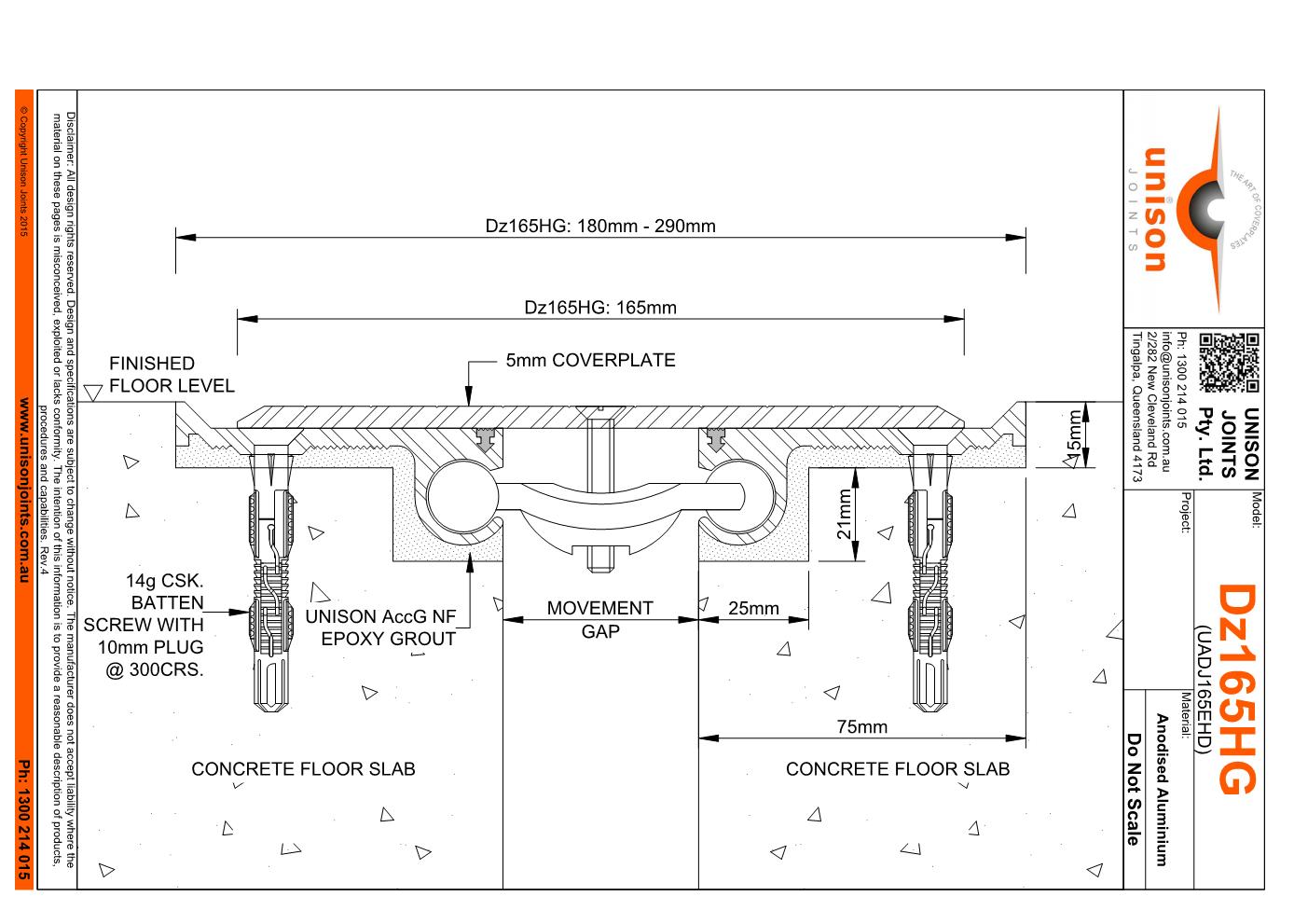

Dz165HGW
