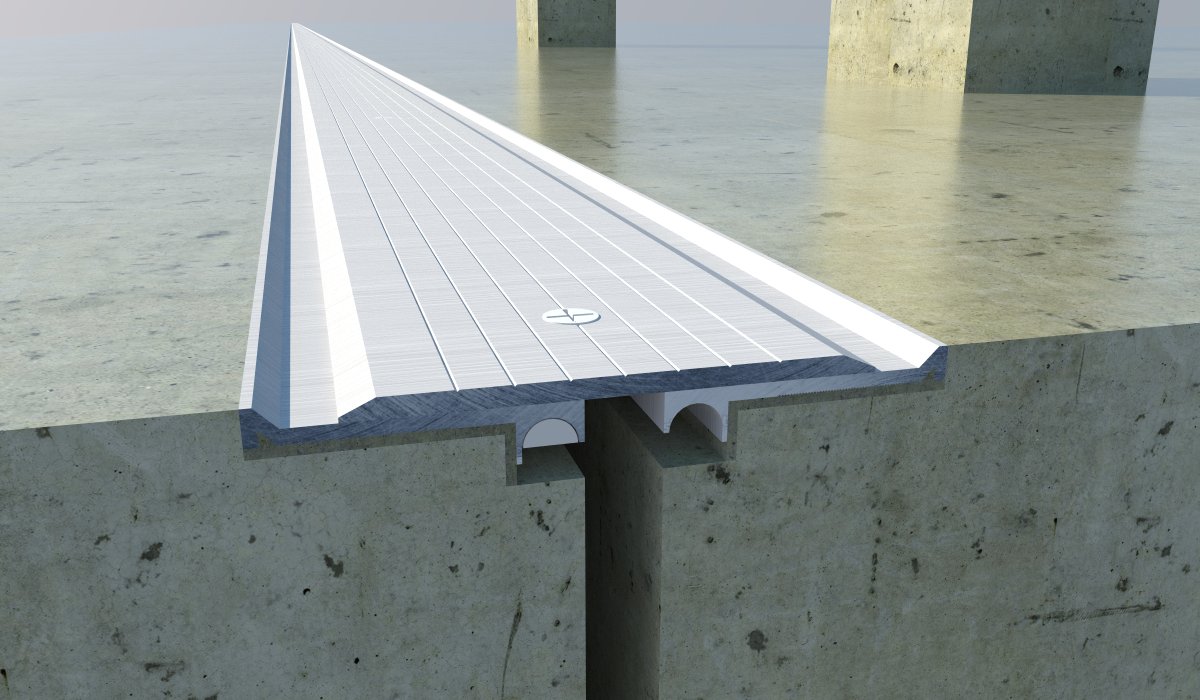

Low-Profile Sleek Floor Expansion Joint Cover

Dz D

Revolutionary design combines slim visual width, low profile, and hidden fixings. This floor coverplate system is designed for use in polished concrete, roll-coat epoxy, tiles, vinyl and other floor finishes. Low profile and slender width allows for minimal substrate rebating. Leaves no visual grout line when applied to polish or trowel-finished concrete. Suitable for supermarket/high-end retail/commercial fit-outs with rebating constraints. Stadiums, transit-centres and other buildings with suspended-slab or slab-on-ground concrete.

Indoor and Outdoor
Trolley Safe
Multi Directional

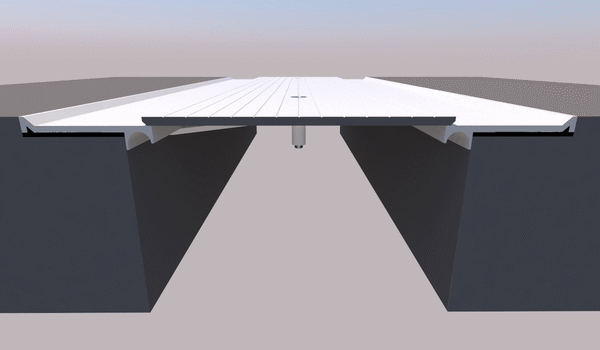

Seismic
P3 Slip Resistance Rating
Illustrations

Typical Dimensions

Performance
Multi Directional
Seismic
P3 Slip Resistance Rating

Performance

  • Concealed Fixings
  • Thermally Dynamic
  • High Capacity
  • Low Maintenance
  • Bead blasted cover plate slip resistance classification V tested to AS4586 2013

Compatible Finishes

  • Tiles
  • Vinyl
  • Carpet
  • Epoxy
  • Exposed Concrete
Material Options

Standard Finish

Anodised

Length

4.8m

Cover Plates

Clear Anodised
Colour Anodised
Stainless Steel
Linished

Cover Plate Options

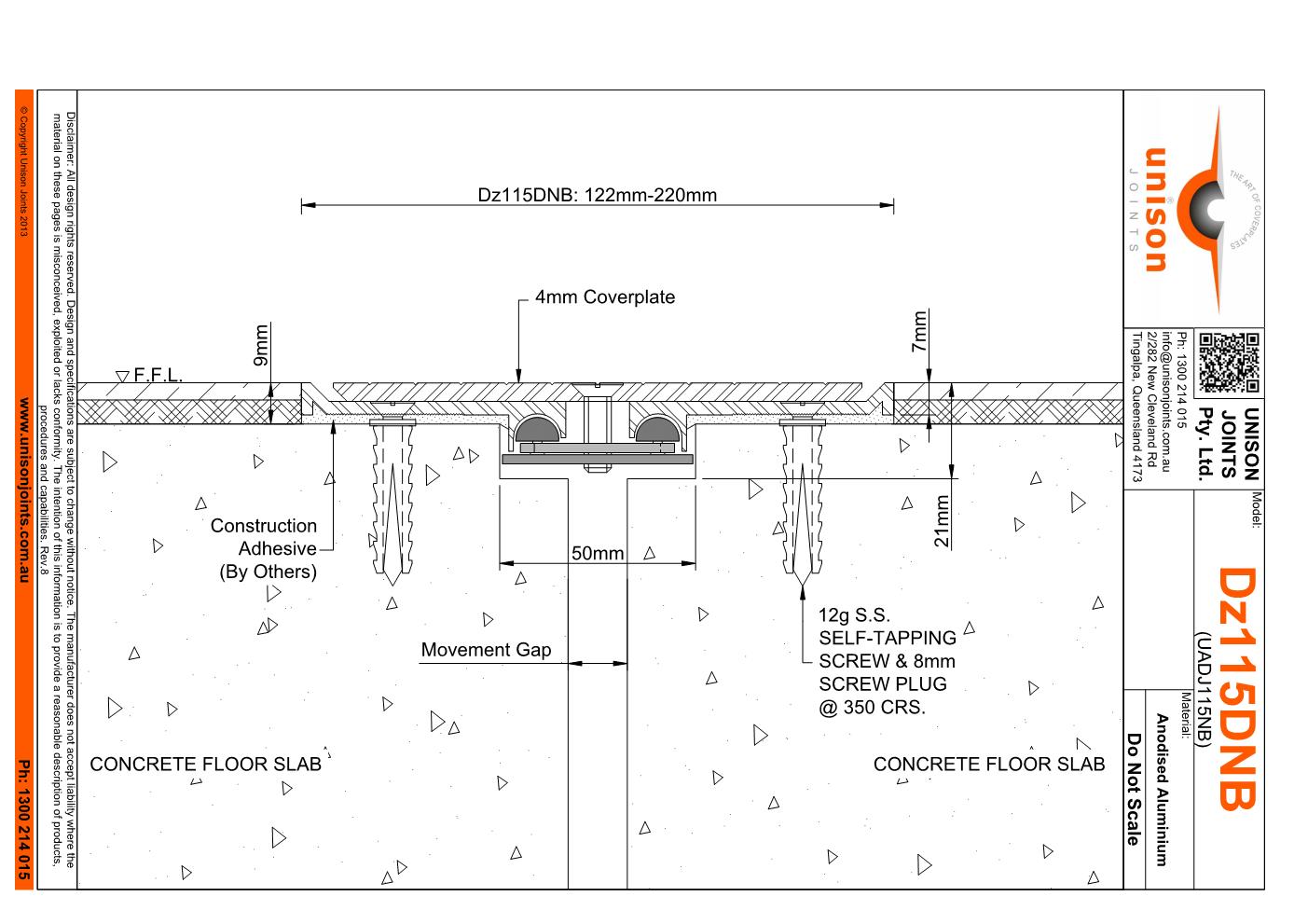

No Bump
Bead Blasted
Detail Drawings

Aluminium Coverplate

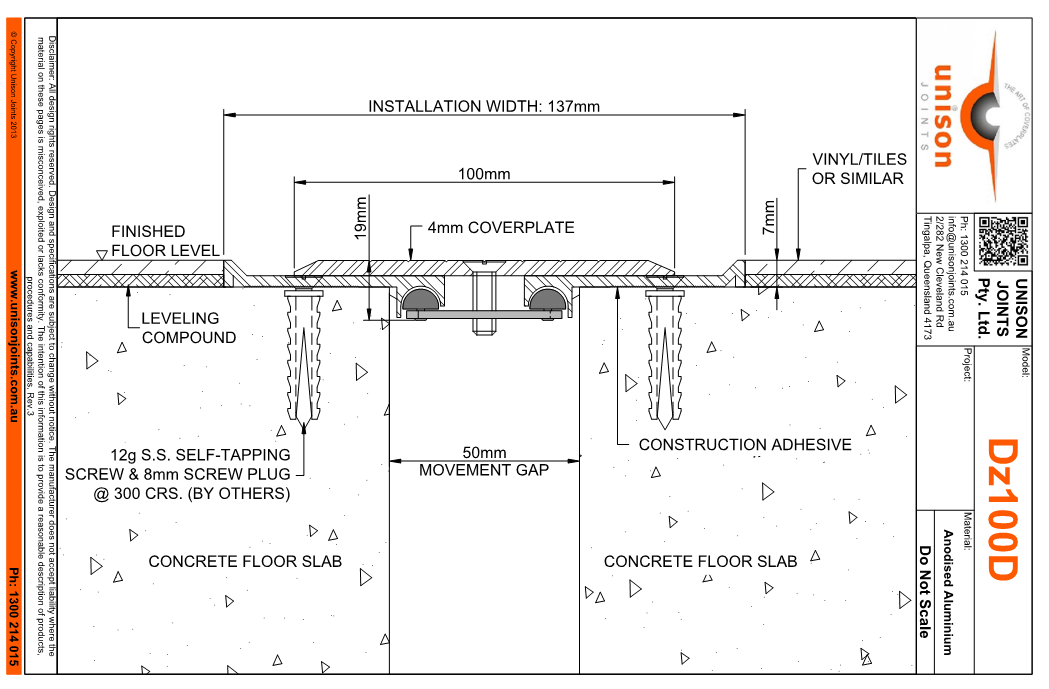

Dz100D

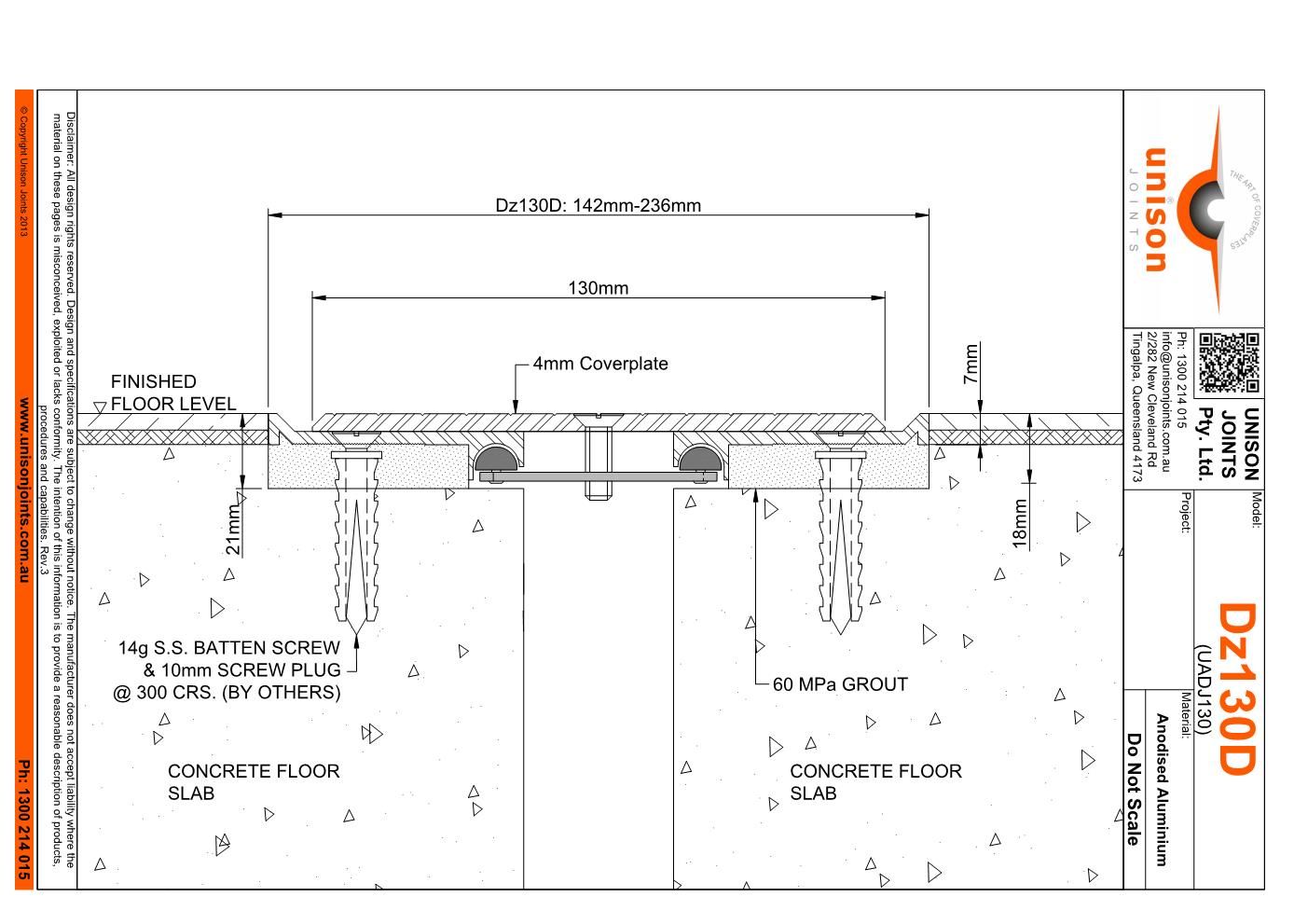

Dz130D

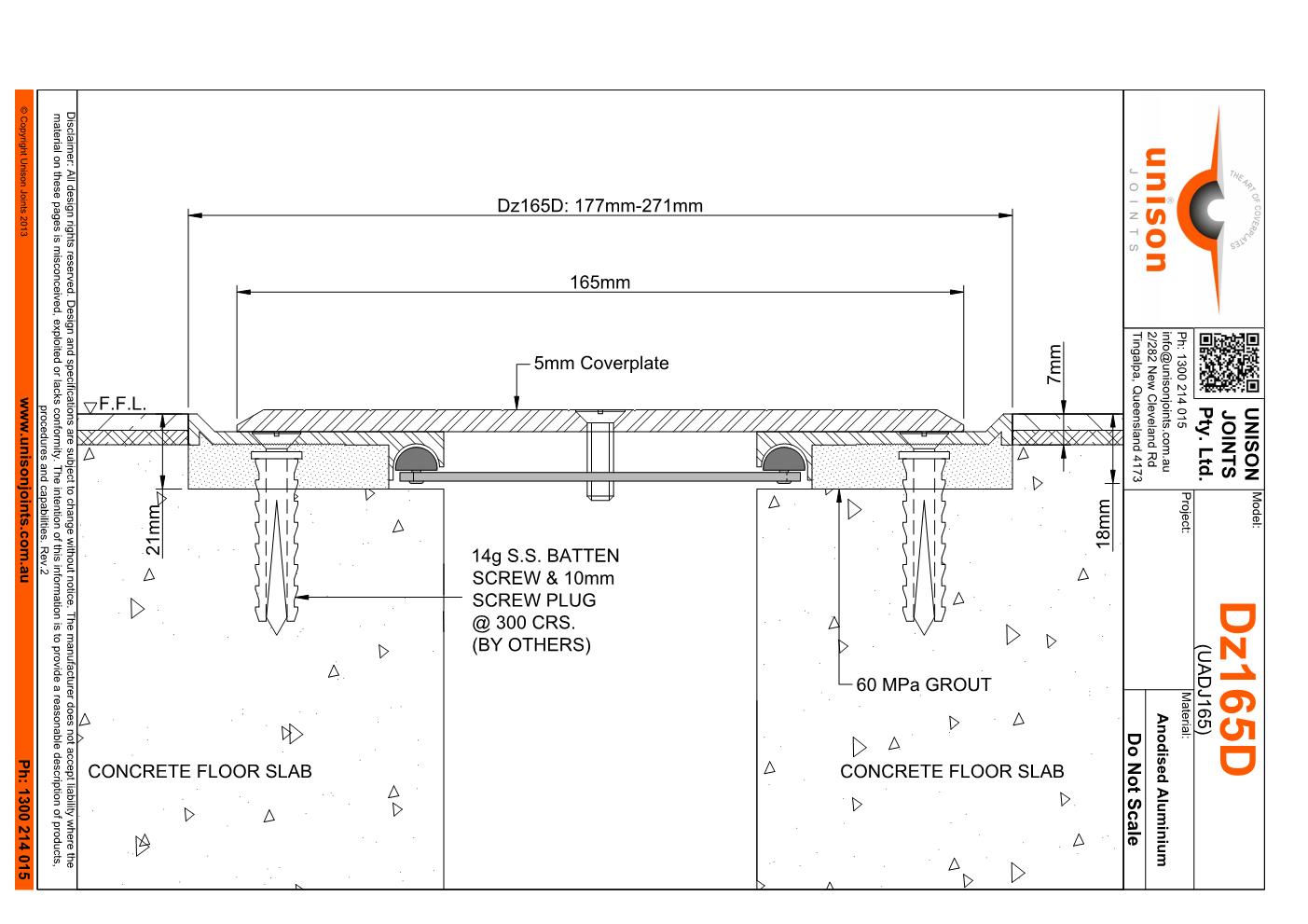

Dz165D

Stainless Steel Coverplate

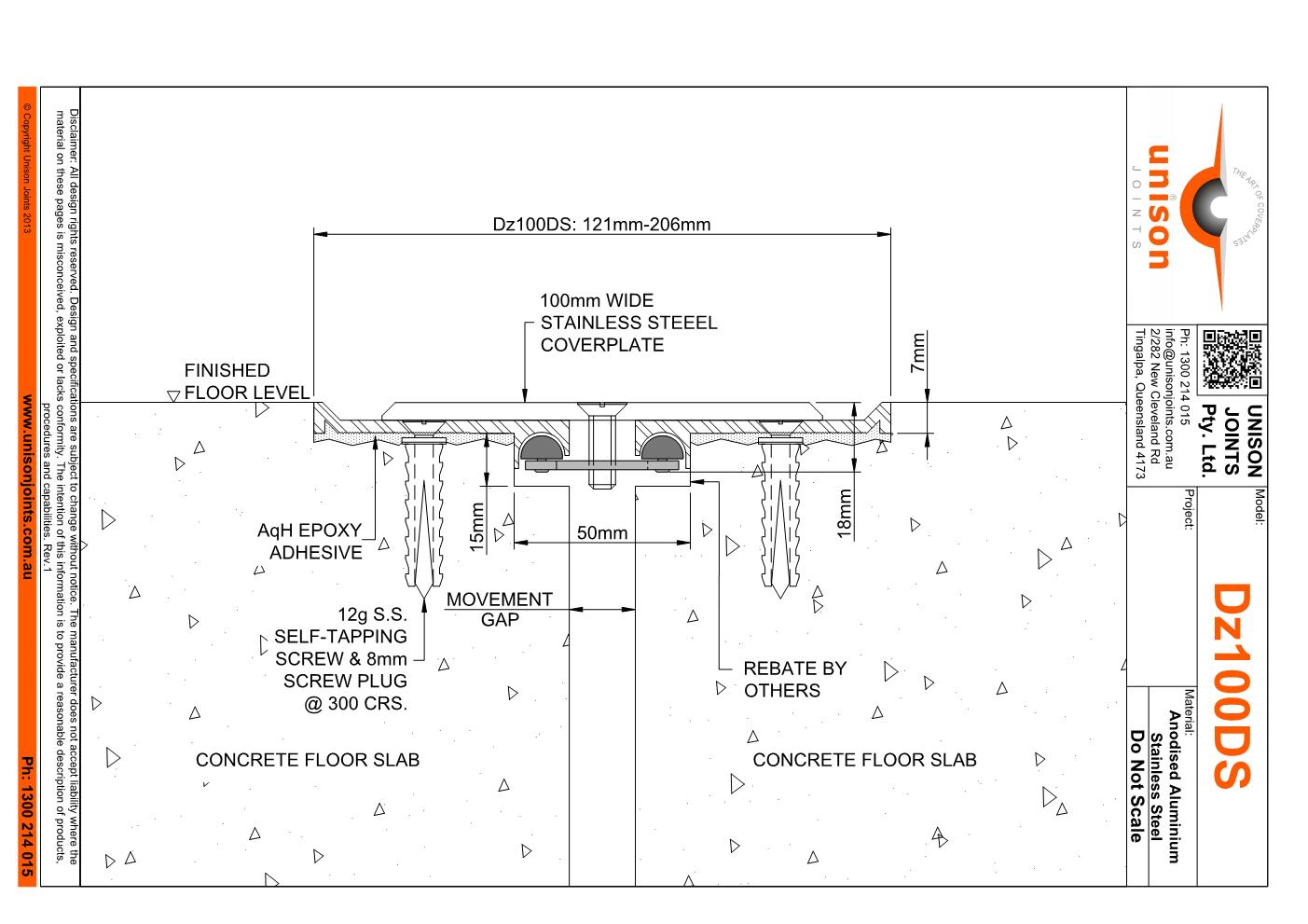

Dz100DS

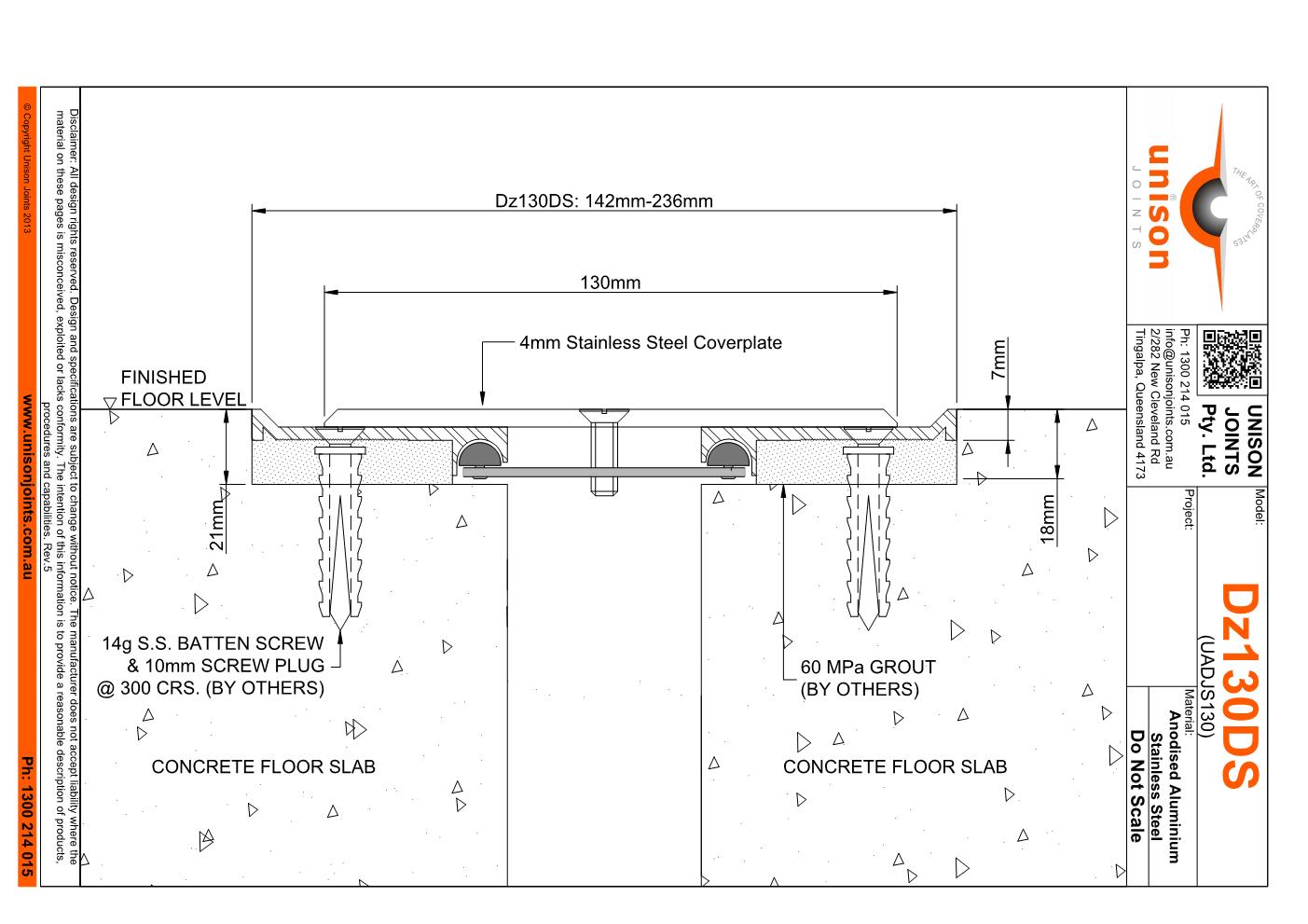

Dz130DS

Floor to Wall System

Dz DW
