Disability Accessible Certified Heavy Duty Floor Expansion Joint Cover

By C / By CT

Heavy Duty Disability Certified Joint Cover. The ByC carpark expansion joint system is engineered for heavy rolling traffic, including forklifts, pallet trolleys, and scissor lifts. Ideal for use in high-impact areas such as loading docks, back-of-house zones, and bulky-goods retail trading floors.

Its unique square-edge design minimizes wheel impact, enhancing durability and reducing maintenance needs. The system accommodates multi-directional movement, ensuring reliable performance in dynamic environments.

ByC is typically supplied with high-grade mill-finish alloy cover plates but can also be customized with stainless steel, natural or color-anodized aluminum, or bead-blasted finishes. Additionally, an optional “T” bracket modification is available for seamless integration with exposed aggregate, terrazzo, stone, or paving finishes.

Indoor and Outdoor
Car Park
Heavy Vehicle
Multi Directional
P5 Slip Resistance Rating
Illustrations

Typical Dimensions

Performance
Multi Directional
P5 Slip Resistance Rating

Performance

  • Extra heavy duty
  • Concealed Fixings
  • High Capacity
  • Bead blasted cover plate
  • Slip resistance Class V
  • Tested to AS4586 2013

Compatible Finishes

  • Tiles
  • Vinyl
  • Epoxy
  • Exposed Concrete
Material Options

Standard Finish

Linished

Length

4.8m

Cover Plates

Stainless Steel
Linished

Cover Plate Options

No Bump
Bead Blasted
Detail Drawings

Aluminium Coverplate

By110C

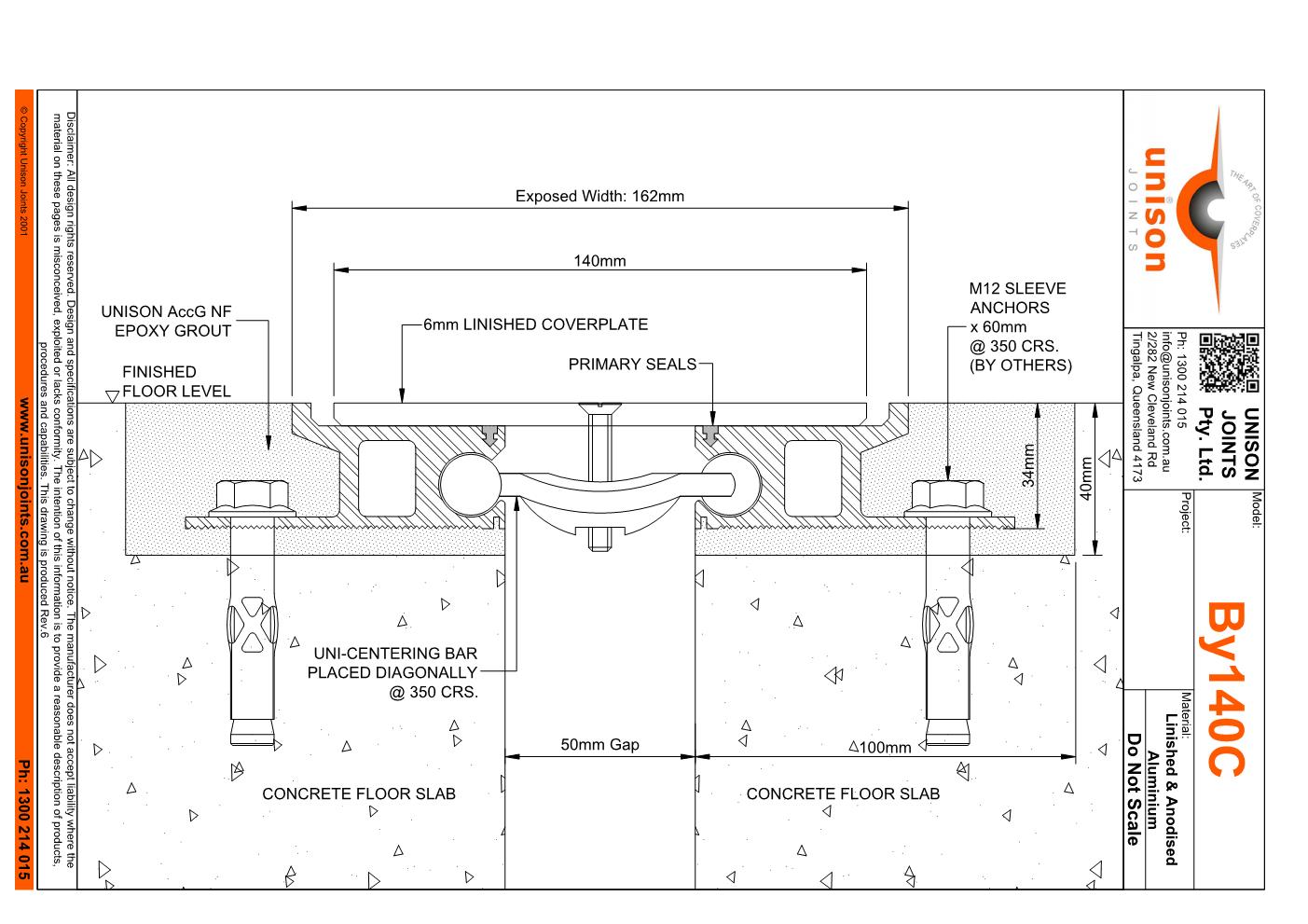

By140C

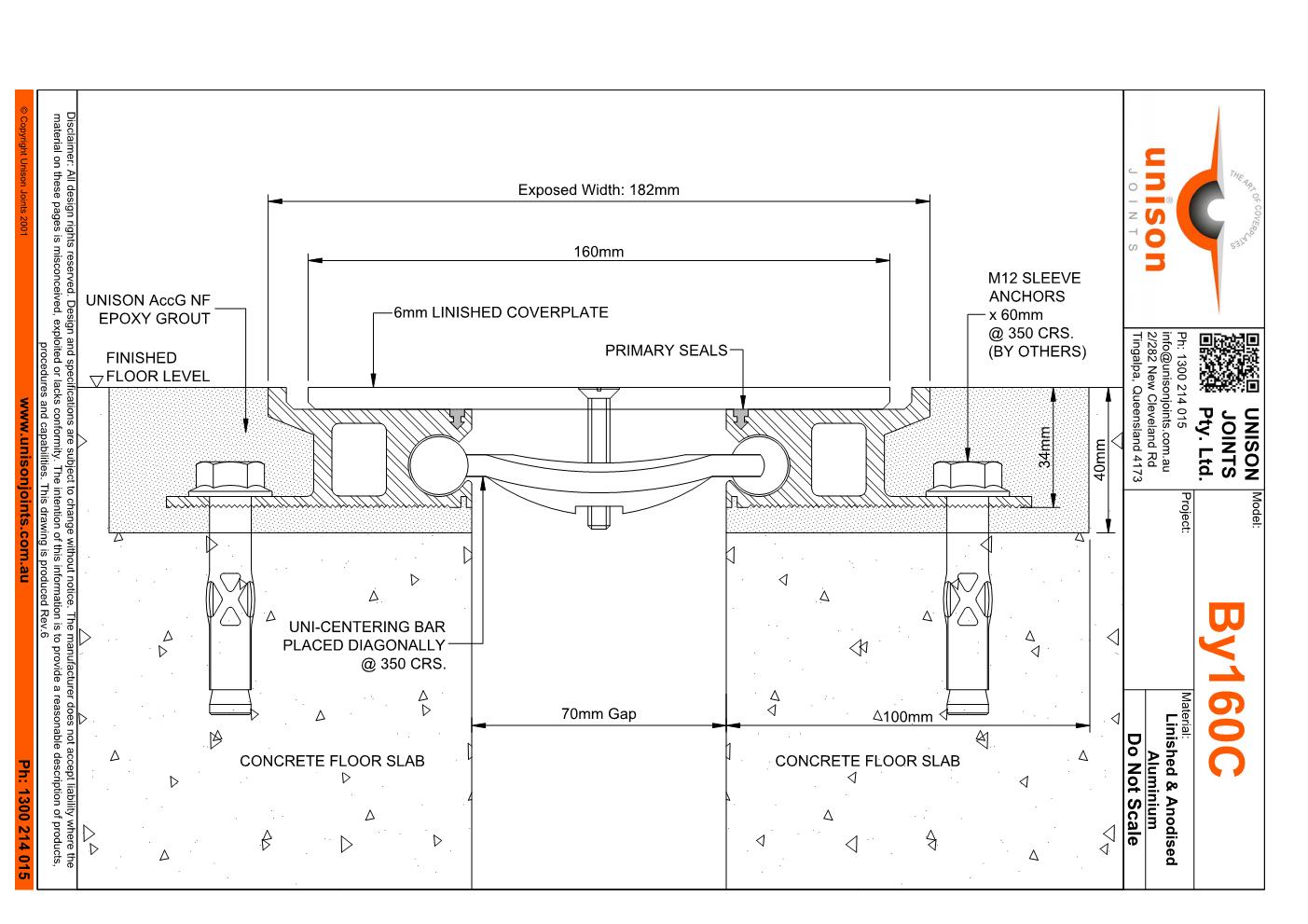

By160C

Stainless Steel Coverplate

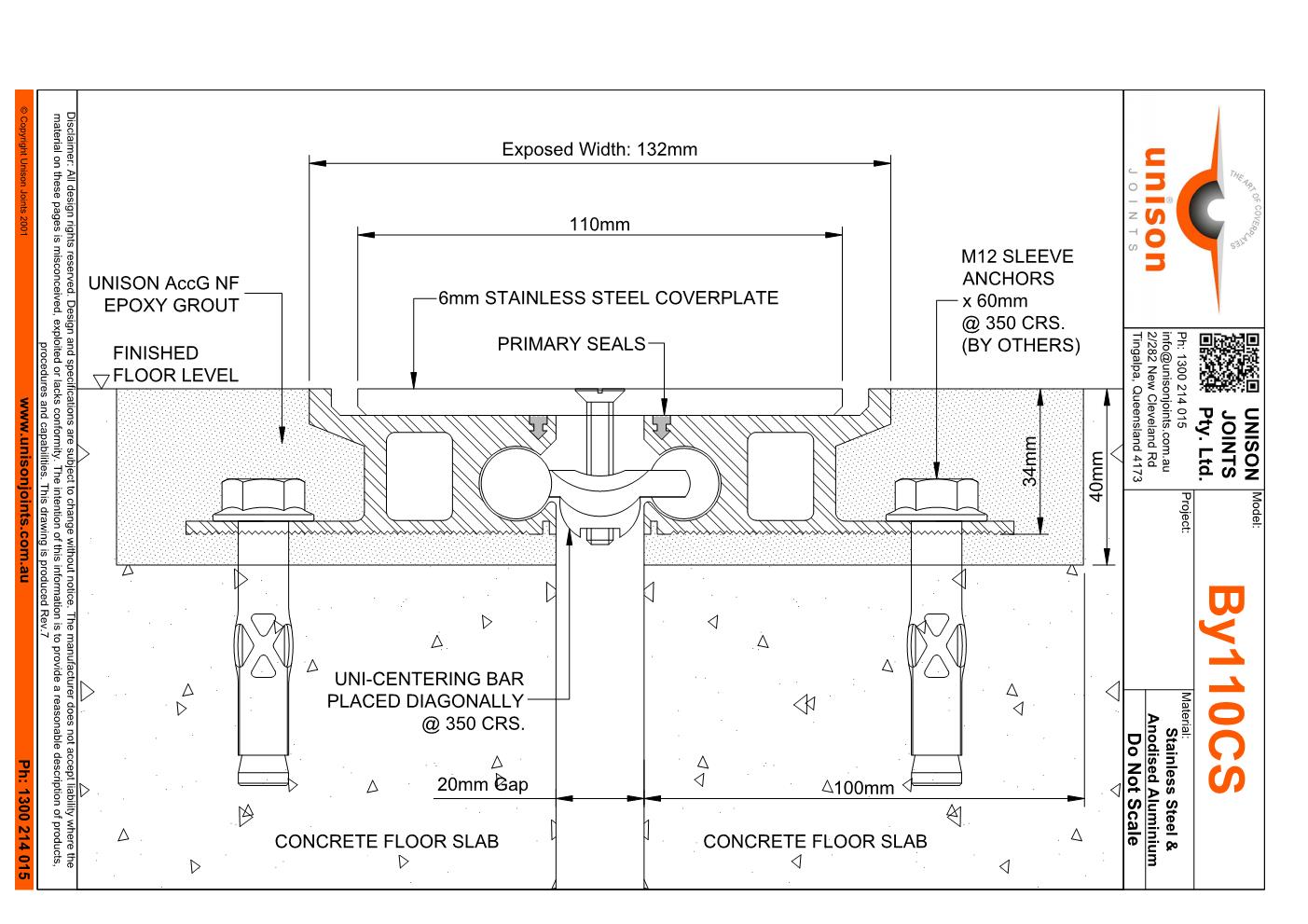

By110CS

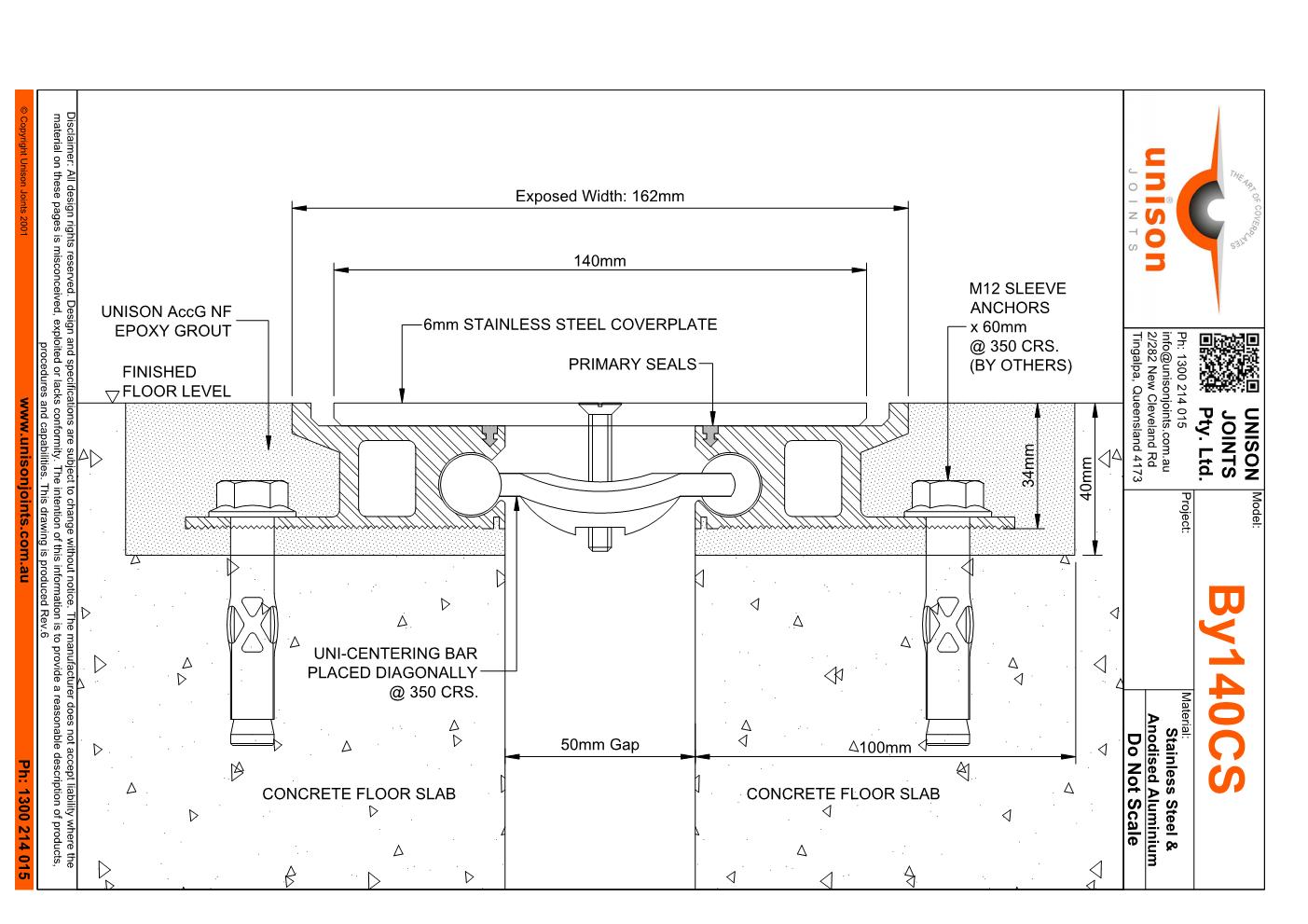

By140CS

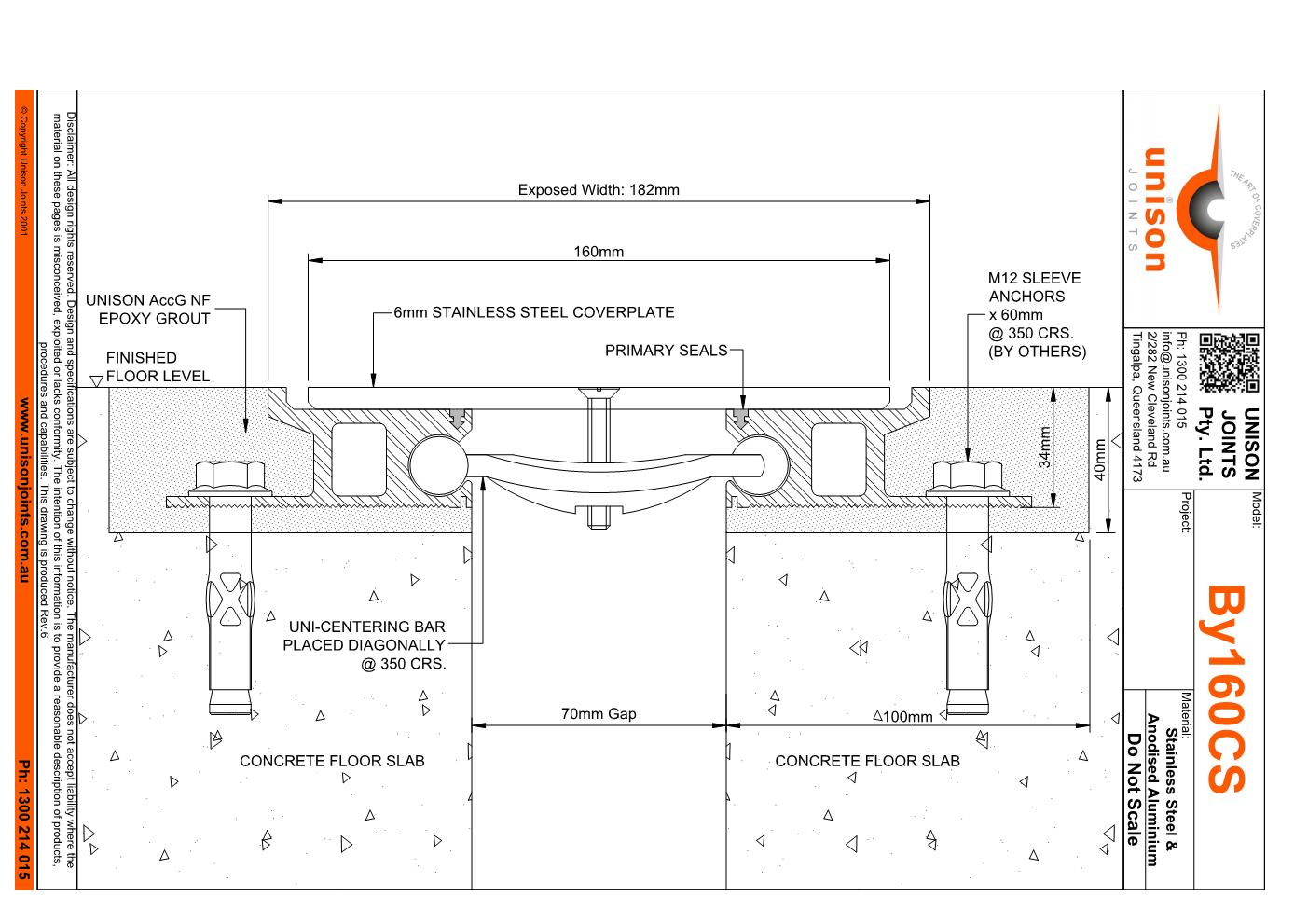

By160CS

High Profile System

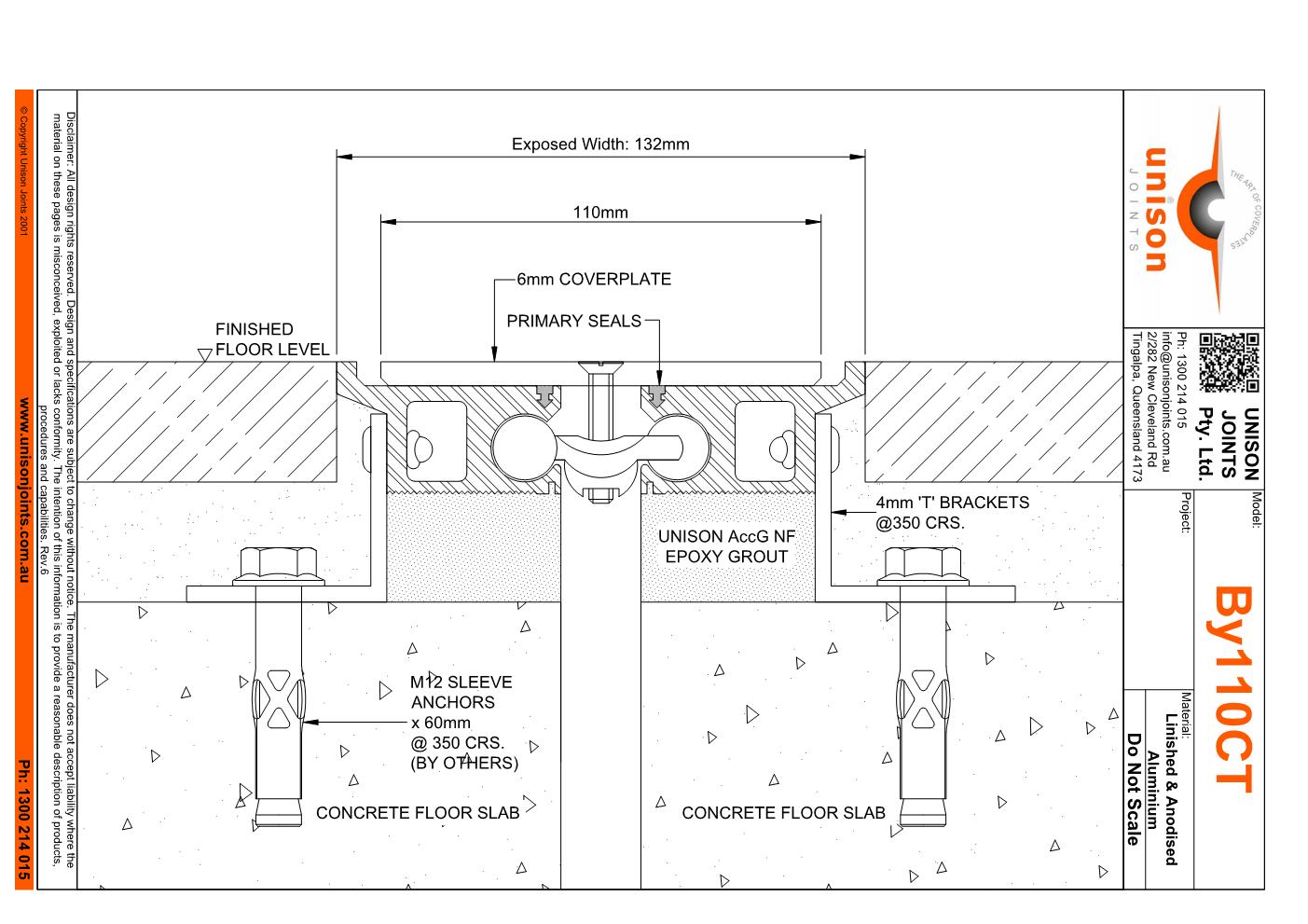

By110CT

By140CT

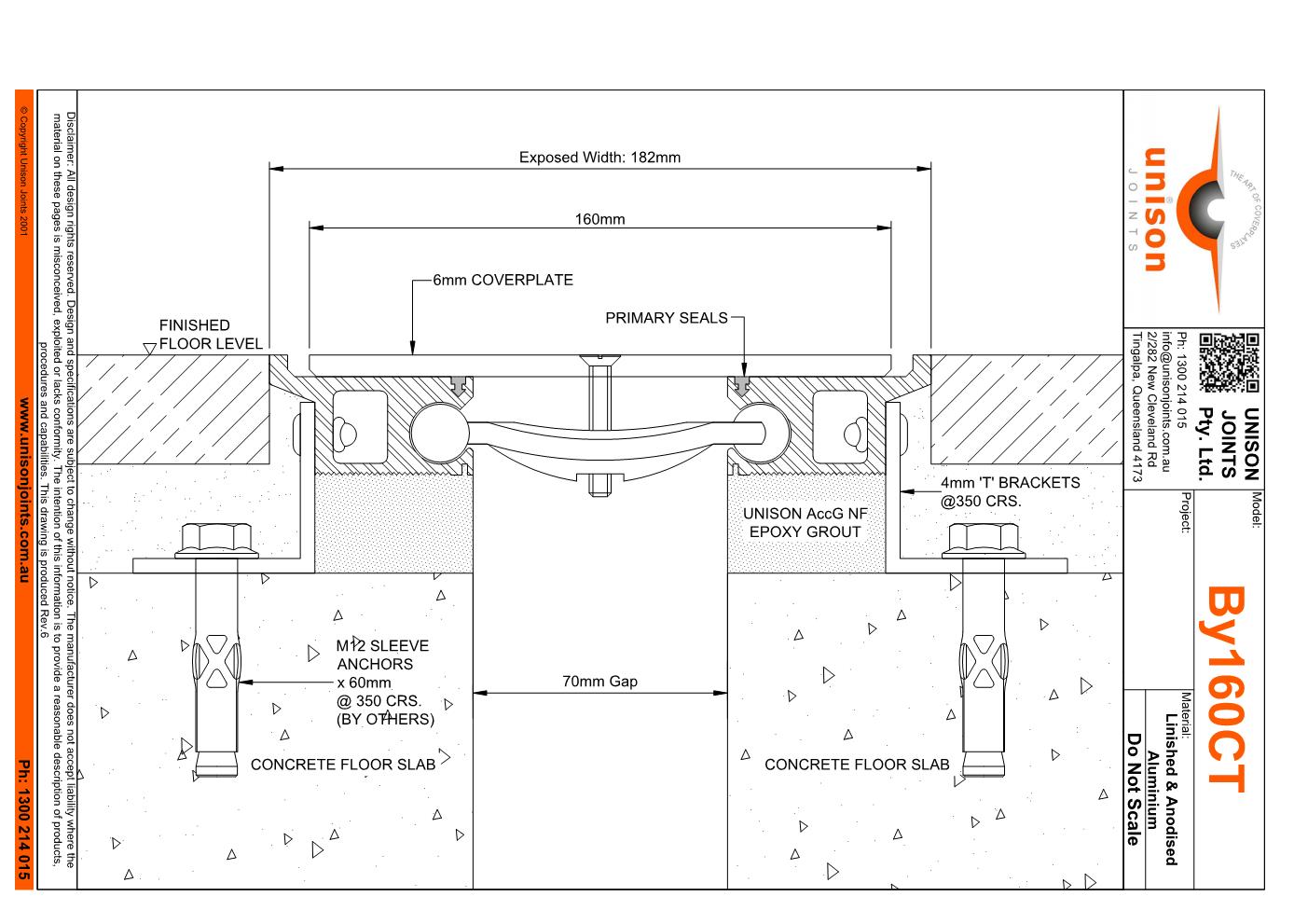

By160CT

Floor to Wall System

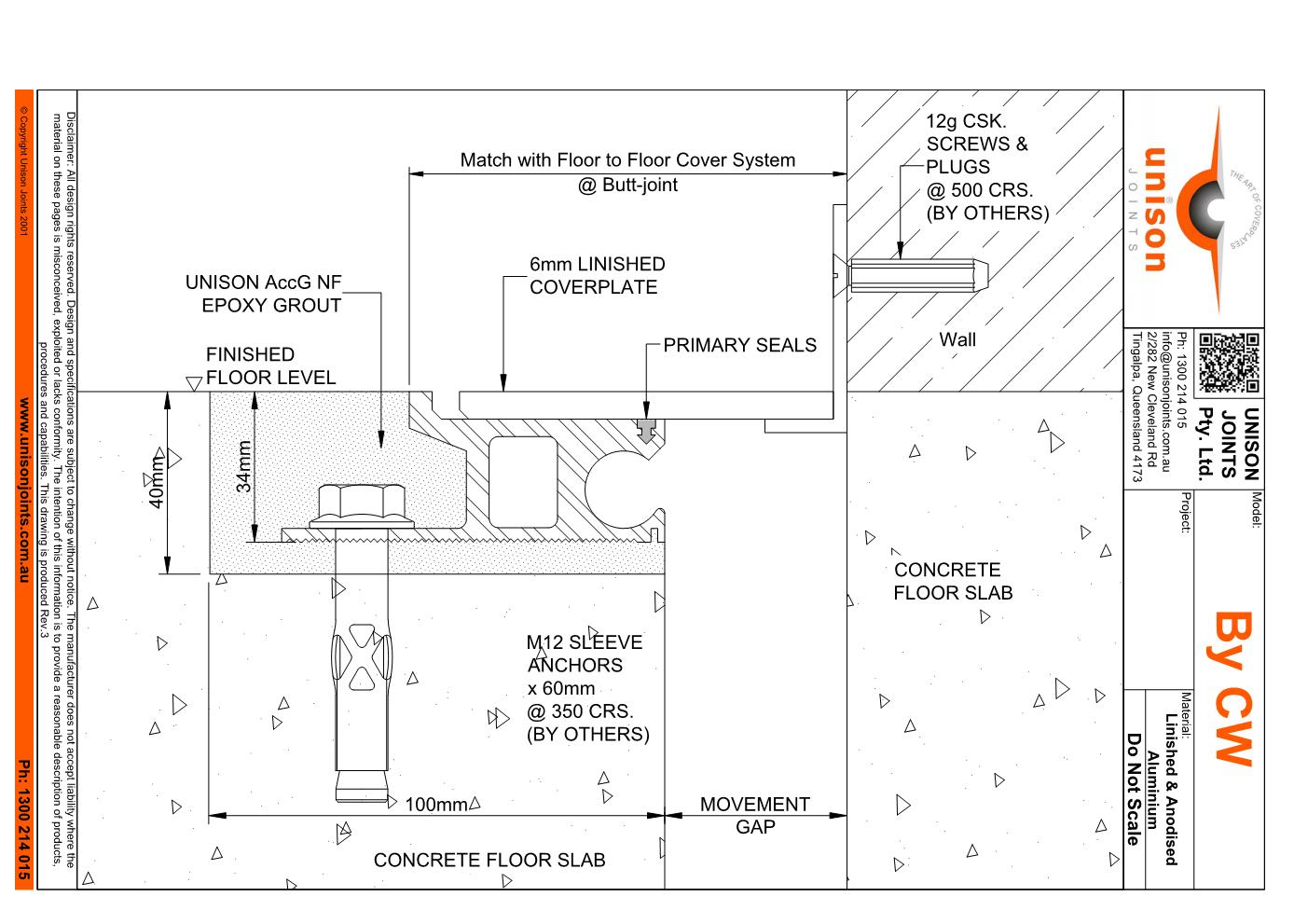

By CW
