3 Piece Heavy Duty Floor Expansion Joint Cover

By C /By CT

An Extra Heavy Duty floor coverplate system designed for use with heavy rolling traffic such as forklifts, pallet trolleys, scissor-lifts. Suitable for use in loading docks, back of house areas, bulky-goods retail trading-floors. Unique square-edge design minimises wheel impact, which promotes longevity. Accommodates multi-directional movement. ByC is normally supplied with high grade mill-finish alloy coverplates. But can be supplied with stainless steel, natural and colour-anodised aluminium, or bead-blasted coverplate. There is also an optional “T” bracket modification, for use in exposed agg, terrazzo, stone or paving.

Indoor and Outdoor
Car Park
Heavy Vehicle
Multi Directional
P5 Slip Resistance Rating

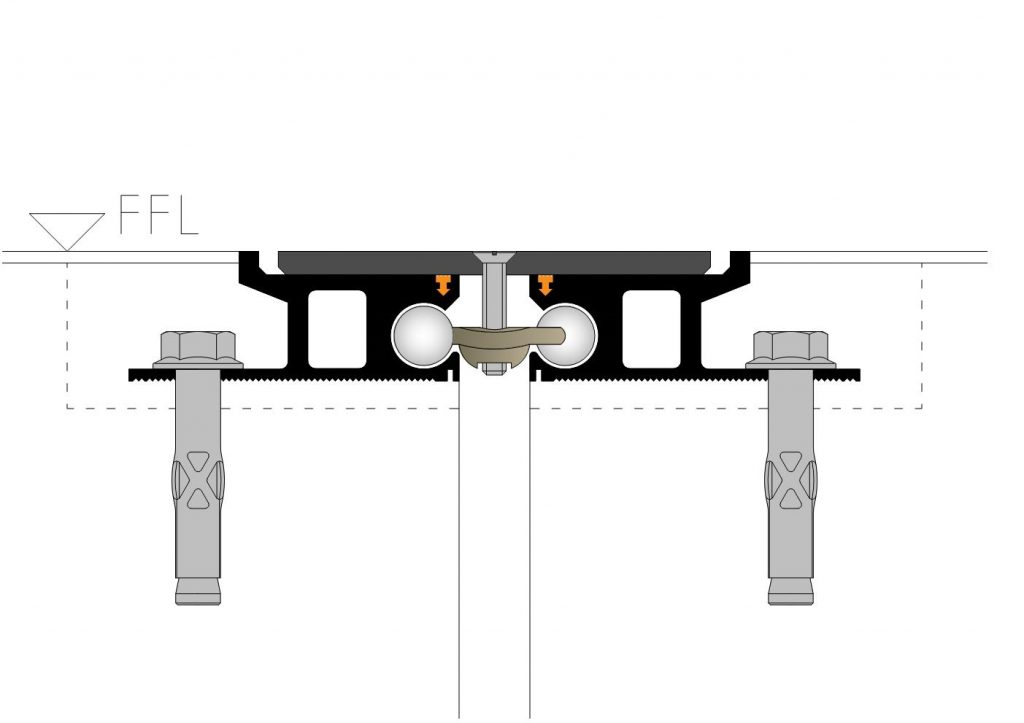

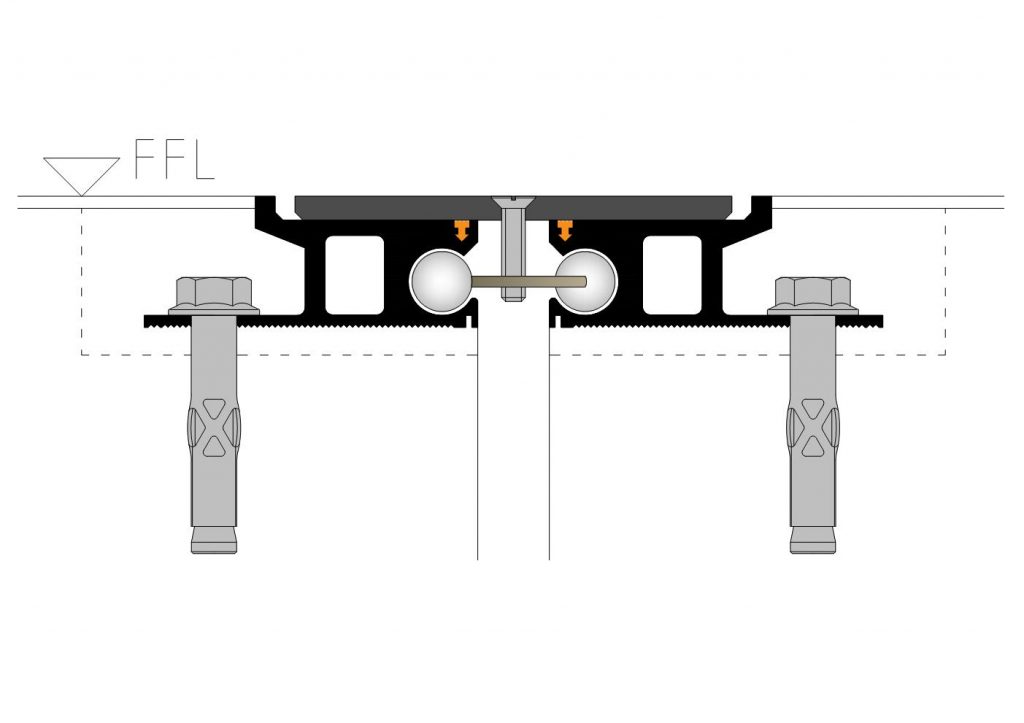

Illustrations

Typical Dimensions

Performance
Multi Directional
P5 Slip Resistance Rating

Performance

  • Extra heavy duty
  • Concealed Fixings
  • High Capacity
  • Bead blasted cover plate
  • Slip resistance Class V
  • Tested to AS4586 2013

Compatible Finishes

  • Tiles
  • Vinyl
  • Epoxy
  • Exposed Concrete
Material Options

Standard Finish

Linished

Length

4.8m

Cover Plates

Stainless Steel
Linished

Cover Plate Options

No Bump
Bead Blasted
Detail Drawings

Aluminium Coverplate

By110C

By140C

By160C

Stainless Steel Coverplate

By110CS

By140CS

By160CS

High Profile System

By110CT

By140CT

By160CT

Floor to Wall System

By CW
