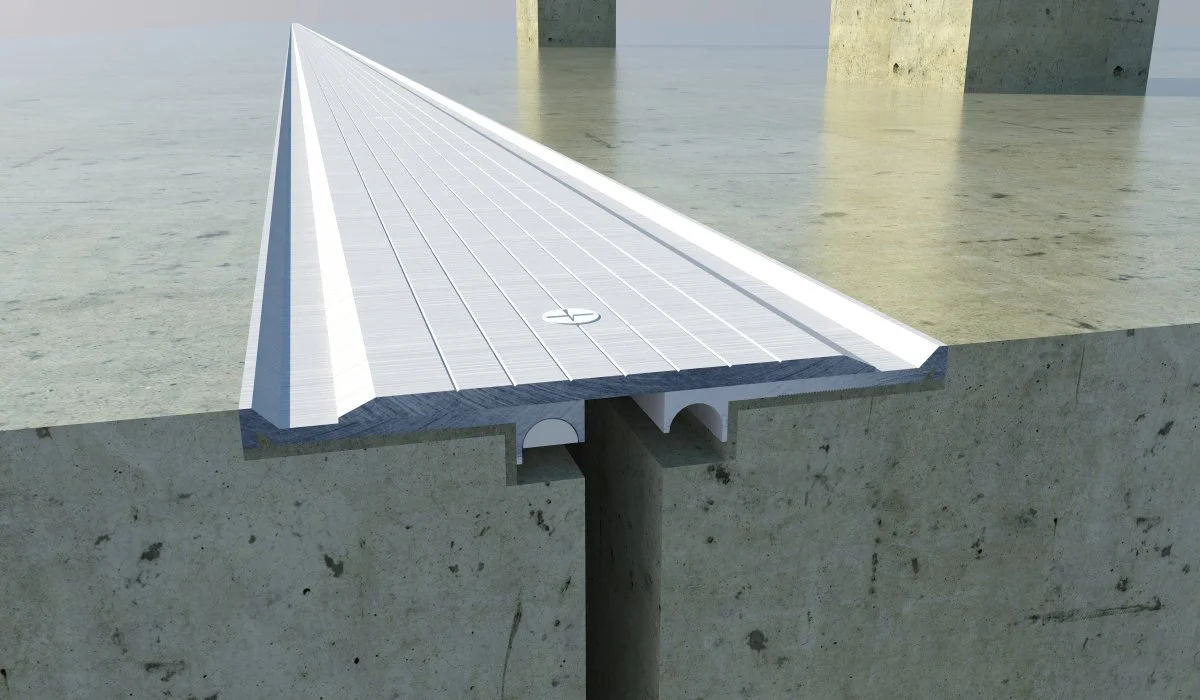

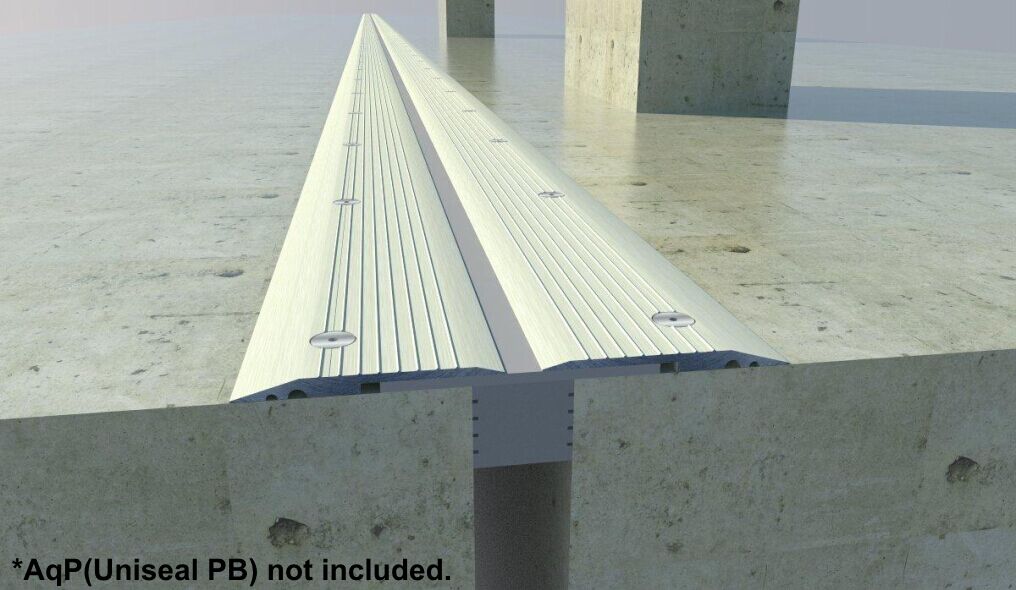

Carpark Expansion Joint With Watertight Concrete Seal

By NS Aq P

Disability certified waterproof carpark expansion joint system.  ByNS/AqP is an innovative car park joint solution that accommodates multi-directional movement, including ‘differential-vertical’ movement. The ByNS is a surface mounted cover plate is designed to sit over the AquoP expansion joint waterproof seal.  The seal has been reliably used for 24 years to waterproof kilometers of expansion joints in both commercial and public buildings. AqP has played a critical role in waterproofing expansion joints in challenging areas such as rooftop carparks and stadiums.

Indoor and Outdoor
Car Park
Waterproof Decks
Light Vehicle
Multi Directional
Water Proof
Certified Disability Accessible
P4 Slip Resistance Rating
Illustrations

Typical Dimensions

Performance
Multi Directional
Water Proof
Certified Disability Accessible
P4 Slip Resistance Rating

Performance

  • Horizontal & Vertical Movement
  • Surface mounted
  • High Capacity
  • 100% Waterproof Seal Available
  • Disability Certified CP-20-0016
  • Waterproof decks
  • Light Vehicle
  • P4 Slip Resistance Rating

Compatible Finishes

  • Epoxy
  • Concrete
  • Polished/Burnished Concrete
Material Options

Standard Finish

Anodised

Length

4.8m

Cover Plates

Clear Anodised
Detail Drawings

Surface Mount System

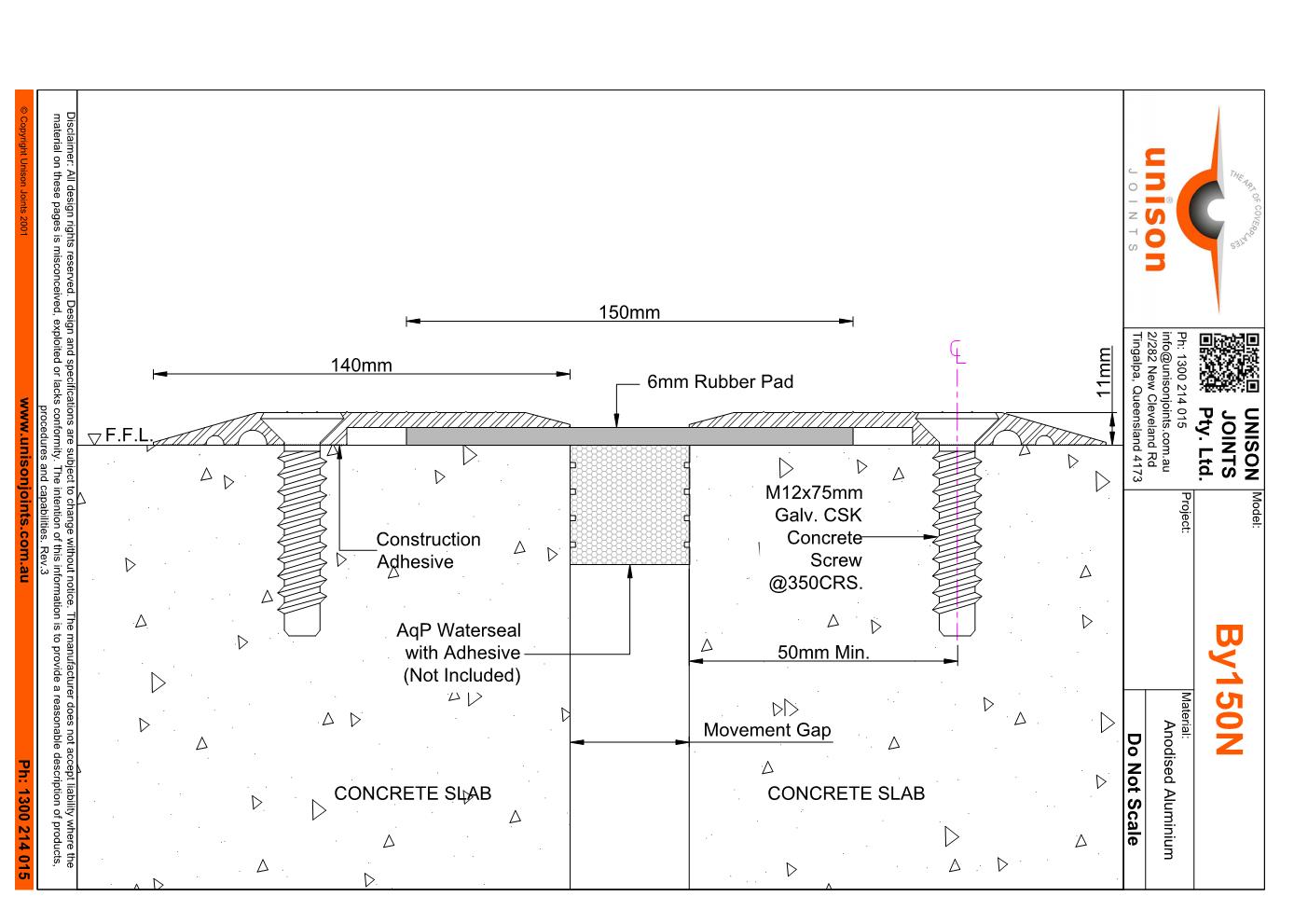

By150N

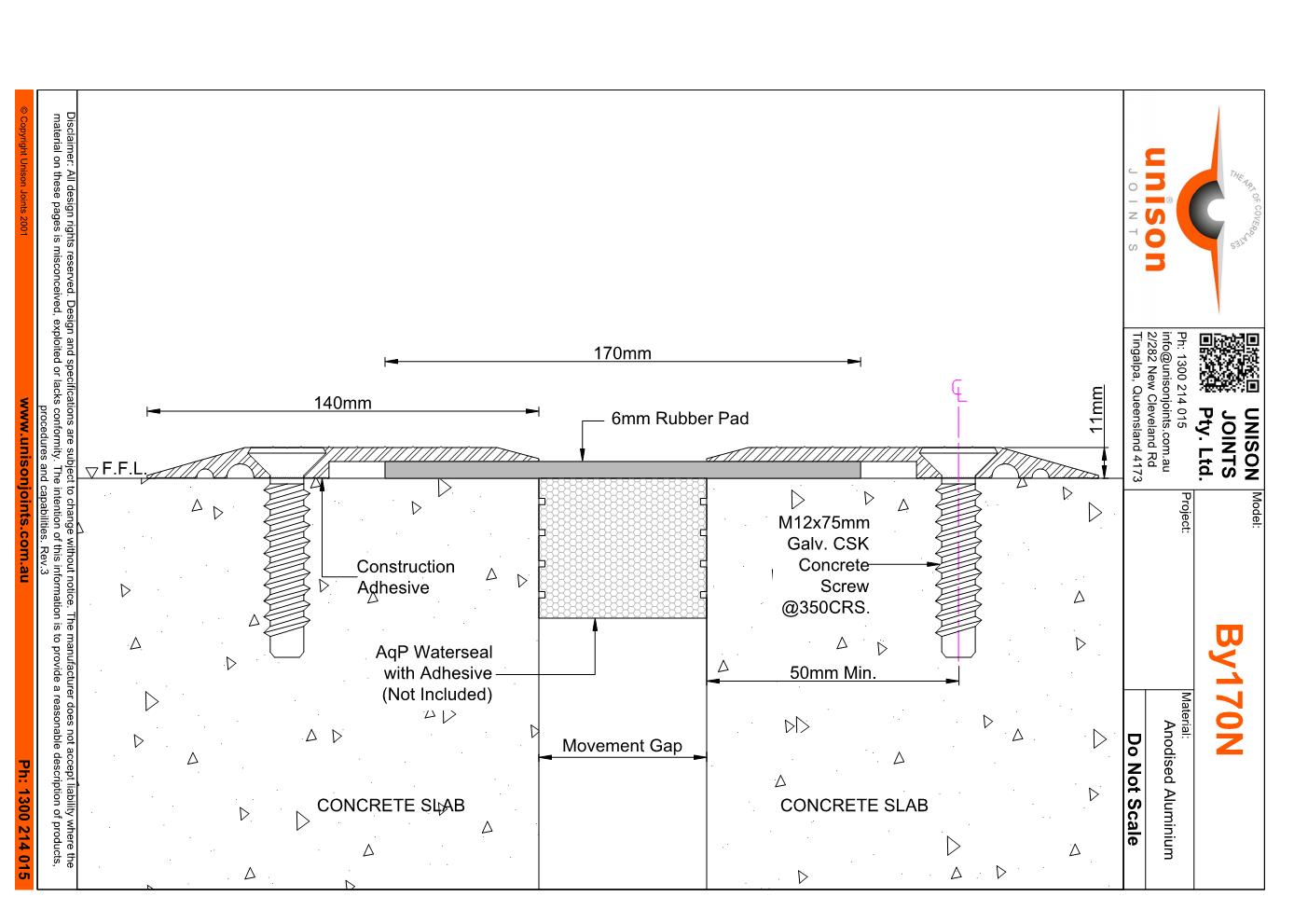

By170N

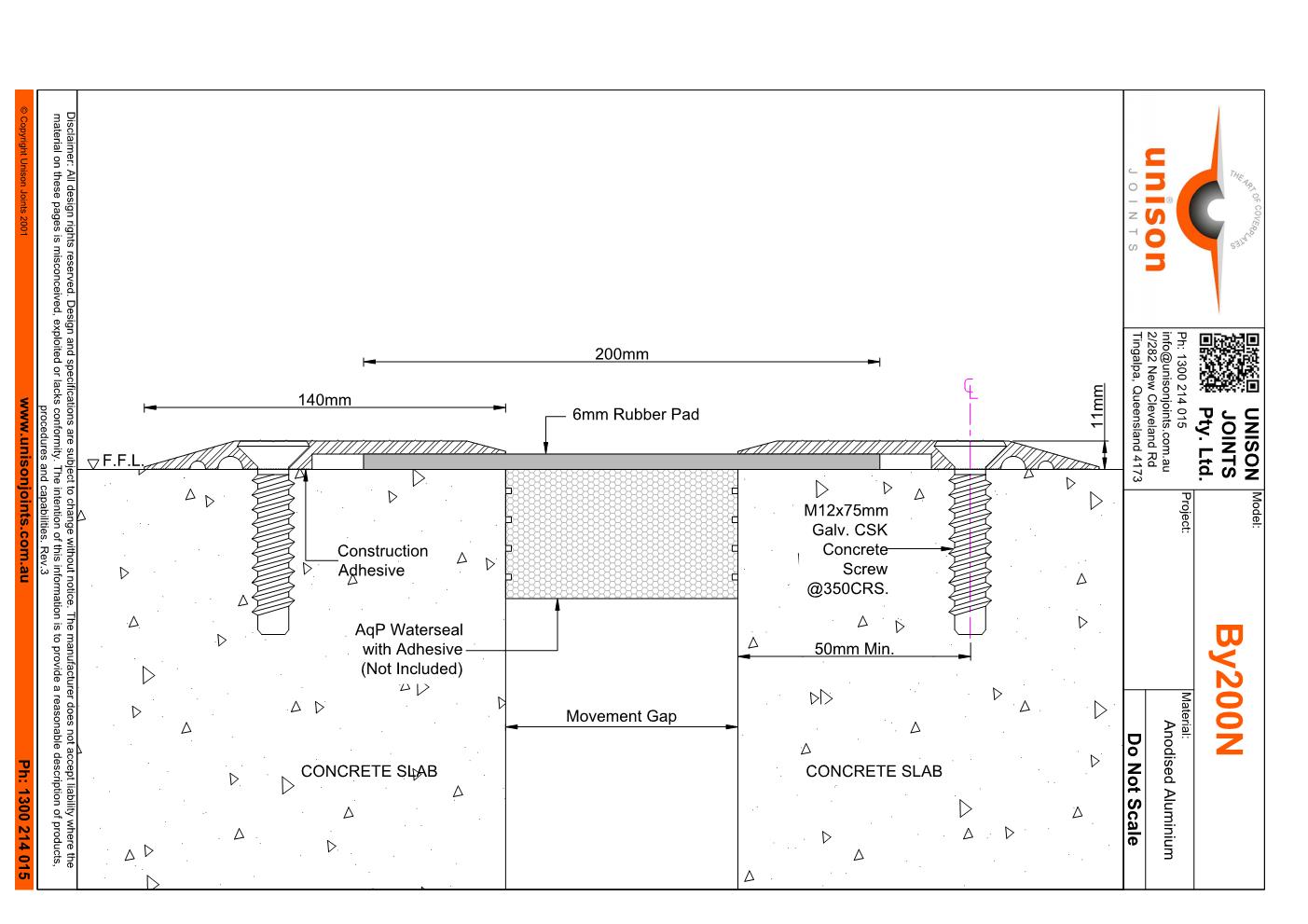

By200N

Alloy Plate System

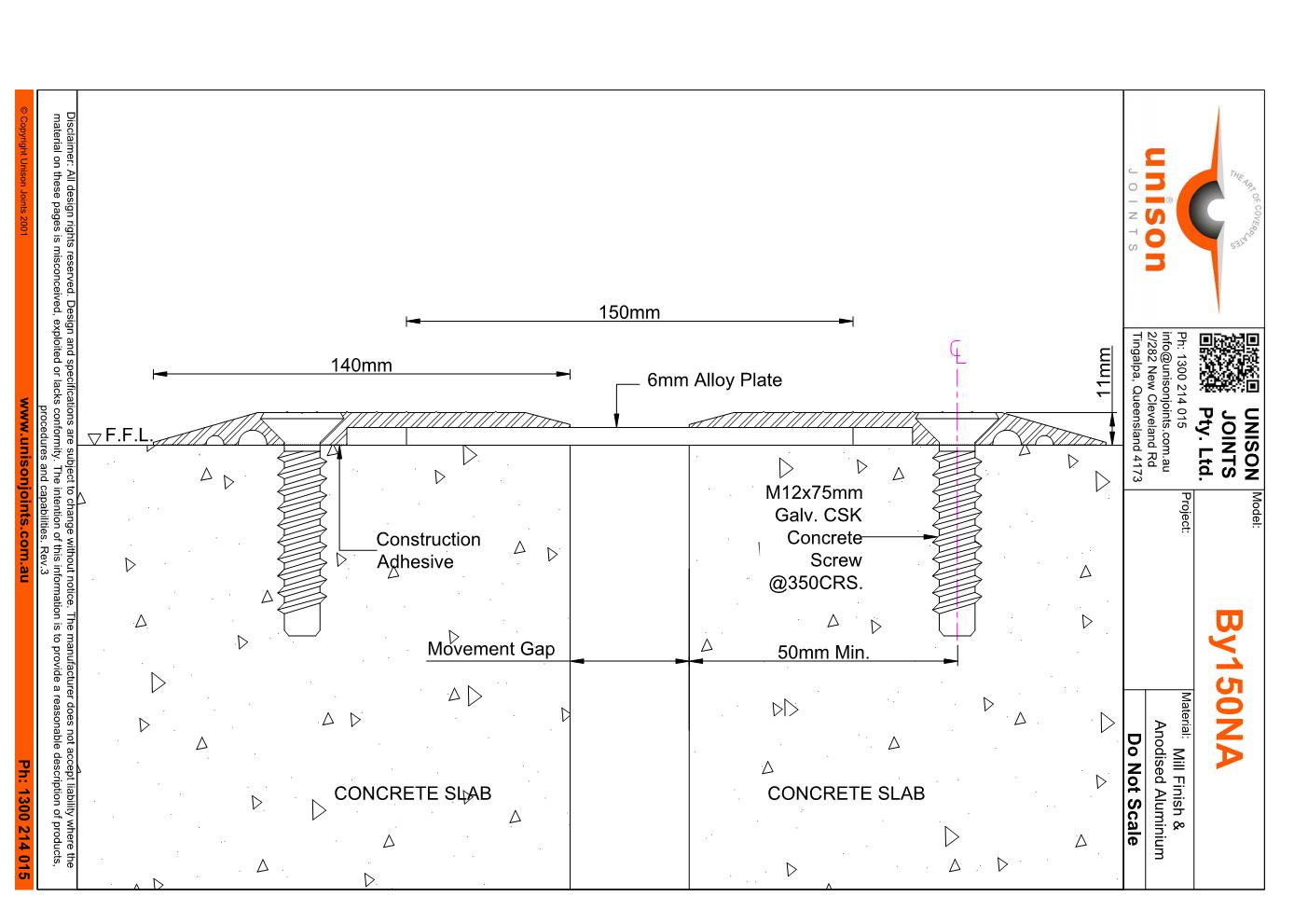

By150NA

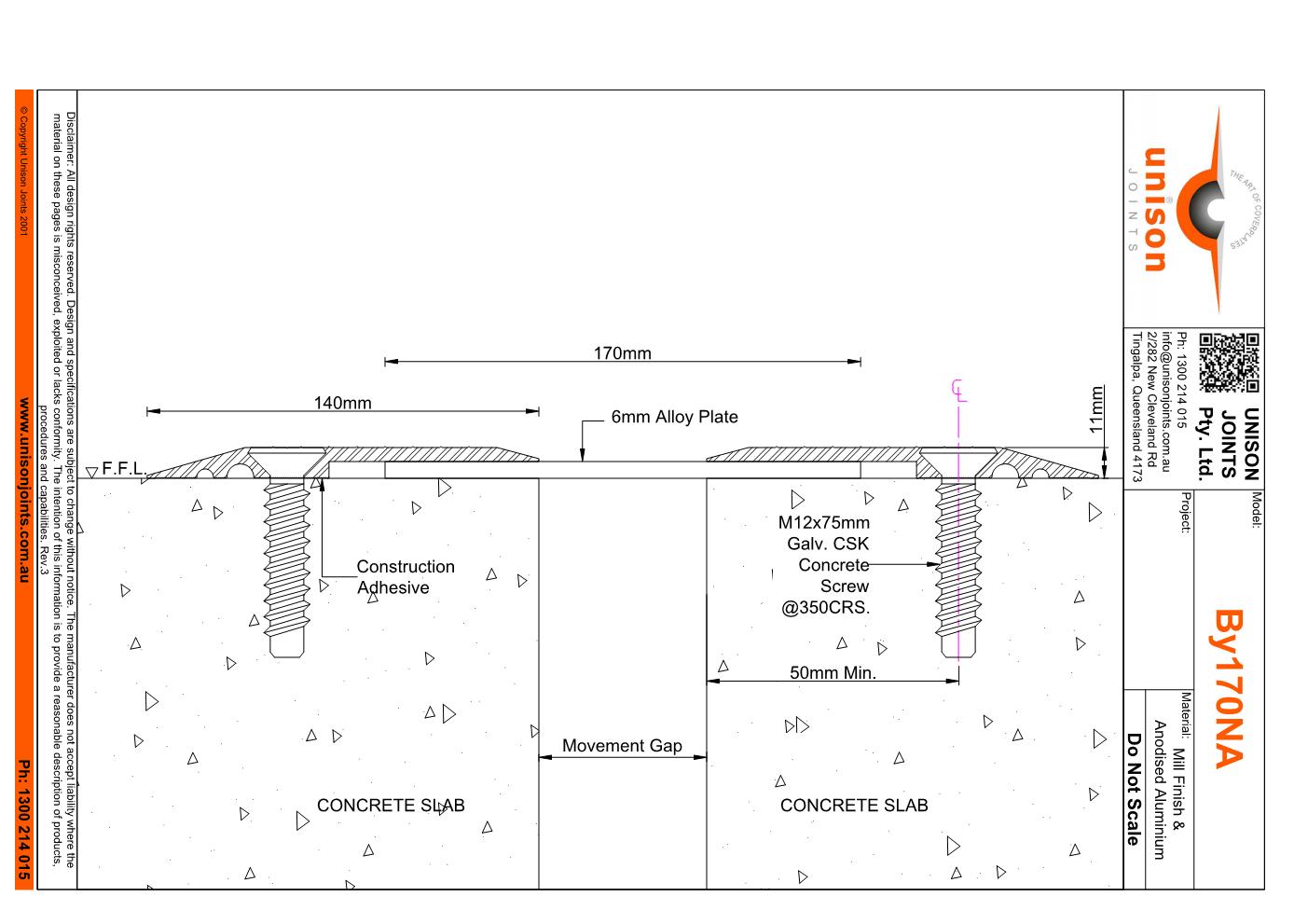

By170NA

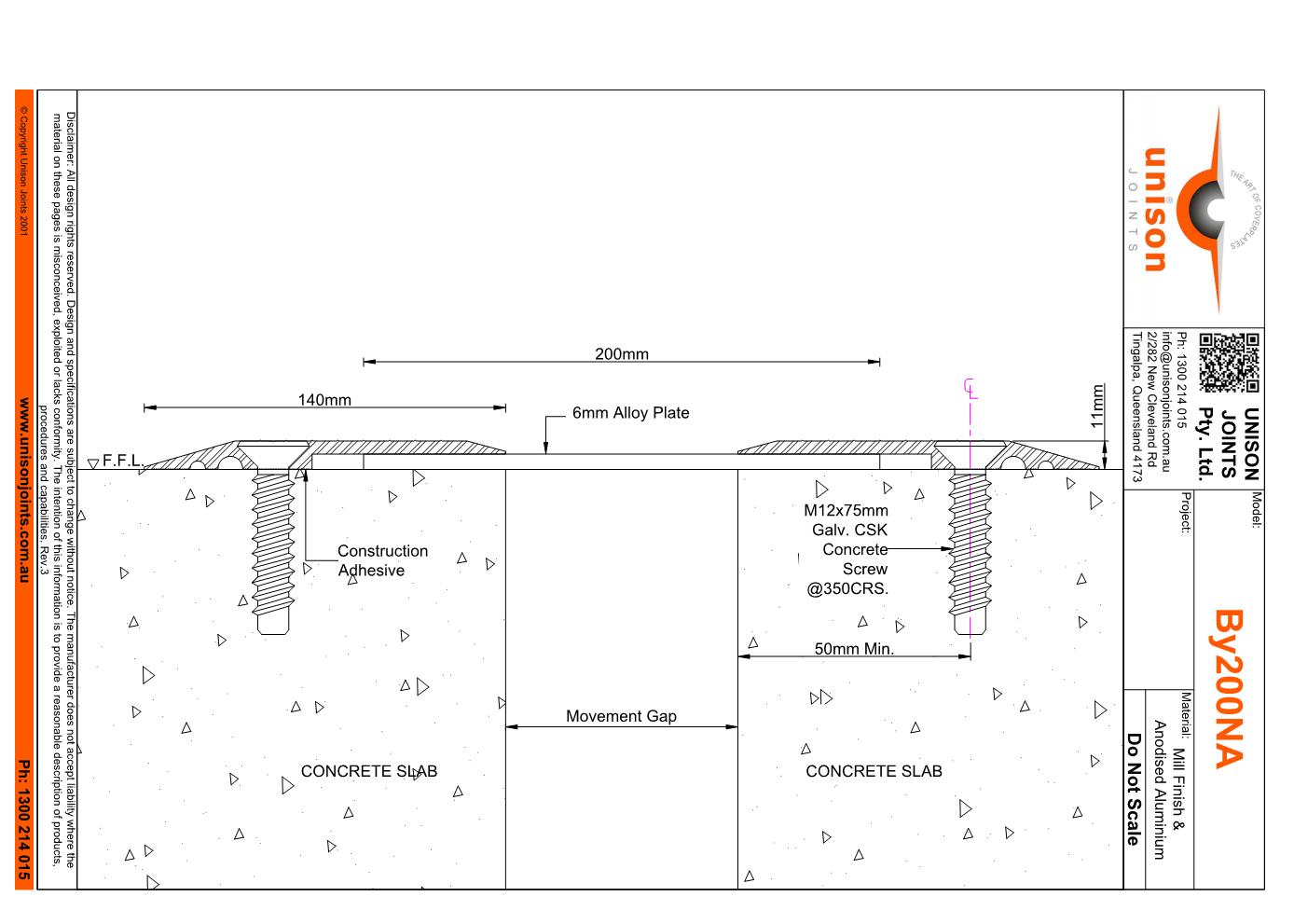

By200NA
