Dz D

Previous Model No: UADJ

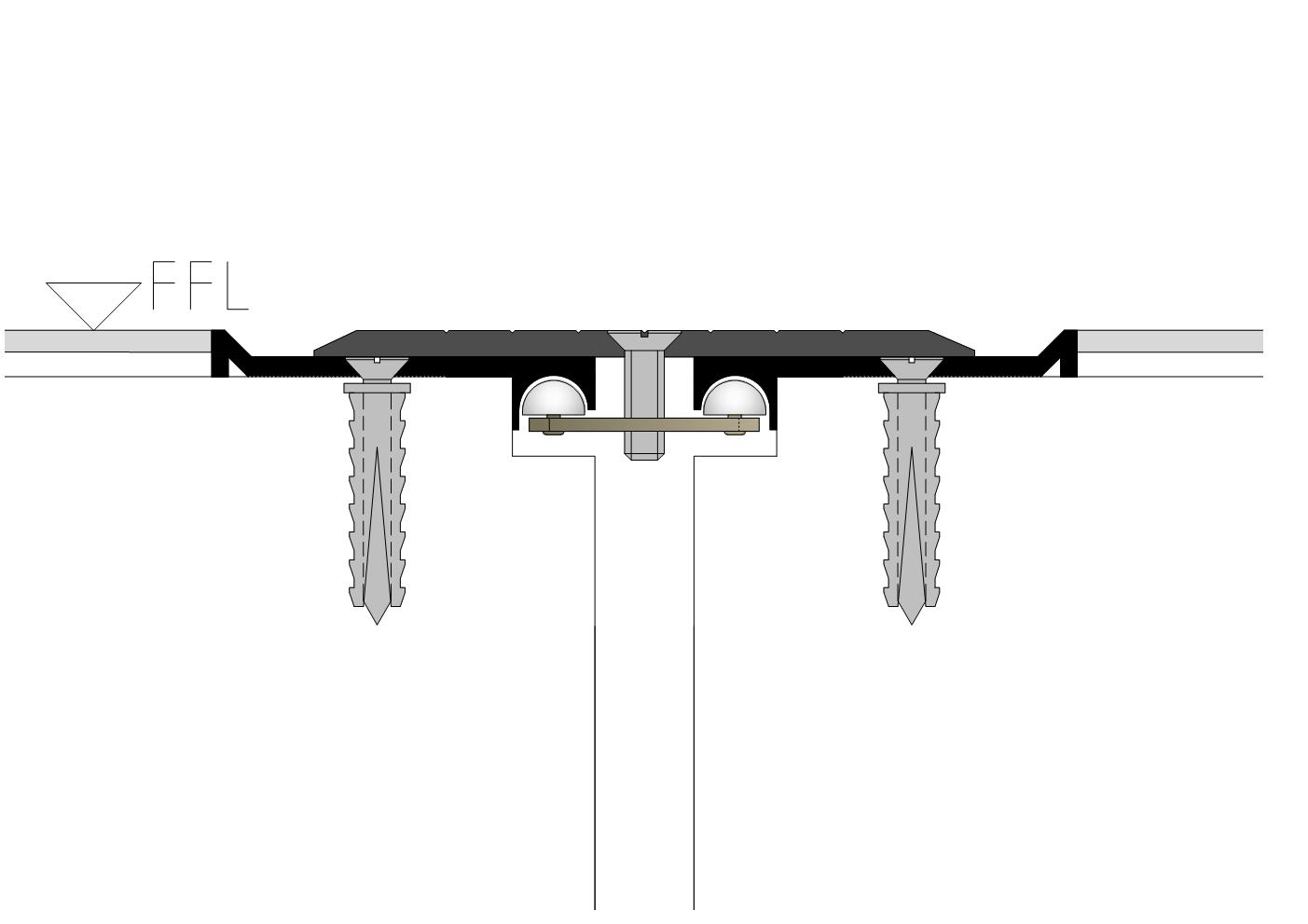

Revolutionary design combines slim visual width, low profile, and hidden fixings. This floor coverplate system is designed for use in polished concrete, roll-coat epoxy, tiles, vinyl and other floor finishes. Low profile and slender width allows for minimal substrate rebating. Leaves no visual grout line when applied to polish or trowel-finished concrete. Suitable for high-end retail/commercial fit-outs with rebating constraints. Stadiums, transit-centres and other buildings with suspended-slab or slab-on-ground concrete.



  • Concealed Fixings
  • Thermally Dynamic
  • High Capacity Low Maintenance
  • Bead blasted cover plate slip resistance classification V tested to AS4586 2013

Compatible Finishes

  • Tiles
  • Vinyl
  • Carpet
  • Epoxy
  • Exposed Concrete

Standard Finish




Cover Plates

Cover Plate Options


Aluminium Coverplate

Stainless Steel Coverplate

Dz100D Dz100DS
Dz130D Dz130DS
Dz165D Dz165DS
Dz180D Dz180DS

No Bump Coverplate

Floor to Wall System

Dz115D NB Dz DW
Dz115DS NB
Dz128D NB/EQ
