Fx CH

Previous Model No: UAC HD

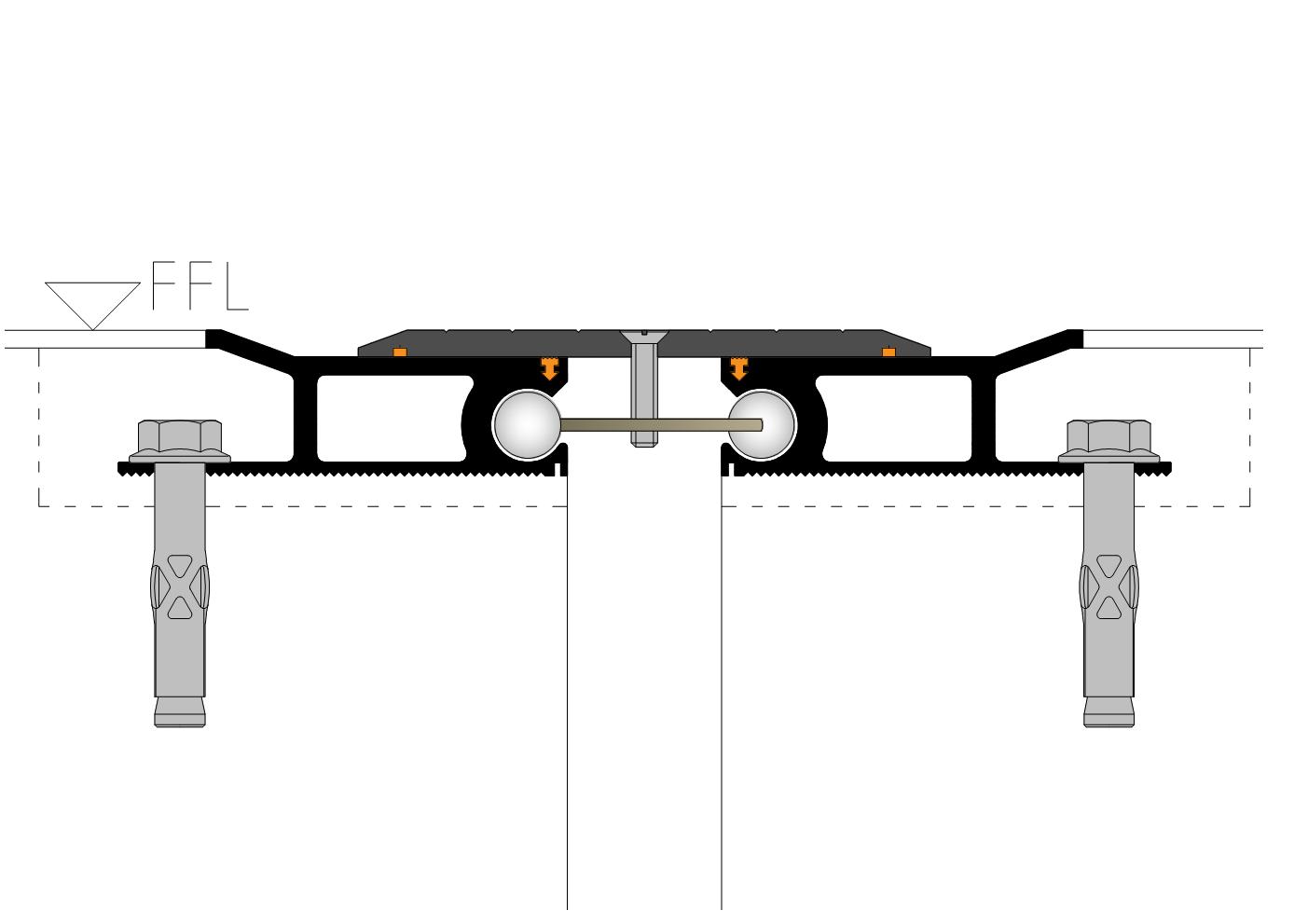

A heavy duty architectural floor coverplate system designed for use with heavy pedestrian, and infrequent service-equipment traffic. Suitable for use in concourse areas such as stadiums, convention centres, airport terminals. FxCH can be supplied with coverplates finished in natural and colour anodised aluminium, or bead-blasted. There is also an optional “T” bracket modification, for use in exposed agg, terrazzo, stone or paving.

Multi-directional Fire Rating Water Proof

Performance

  • Heavy duty
  • Concealed Fixings0
  • High Capacity
  • Bead blasted cover plate
  • Slip resistance Class V
  • Tested to AS4586 2013

Compatible Finishes

  • Tiles
  • Vinyl
  • Epoxy
  • Exposed Concrete

Standard Finish

Anodised

Length

4.8m

Cover Plates

Cover Plate Options

Aluminium Coverplate

High Profile System

Fx130CH Fx130CHT
Fx165CH Fx165CHT
Fx220CH Fx220CHT
Fx300CH Fx300CHT

Floor to Wall

Fx CHW
