By C

Previous Model No: UAC EHD

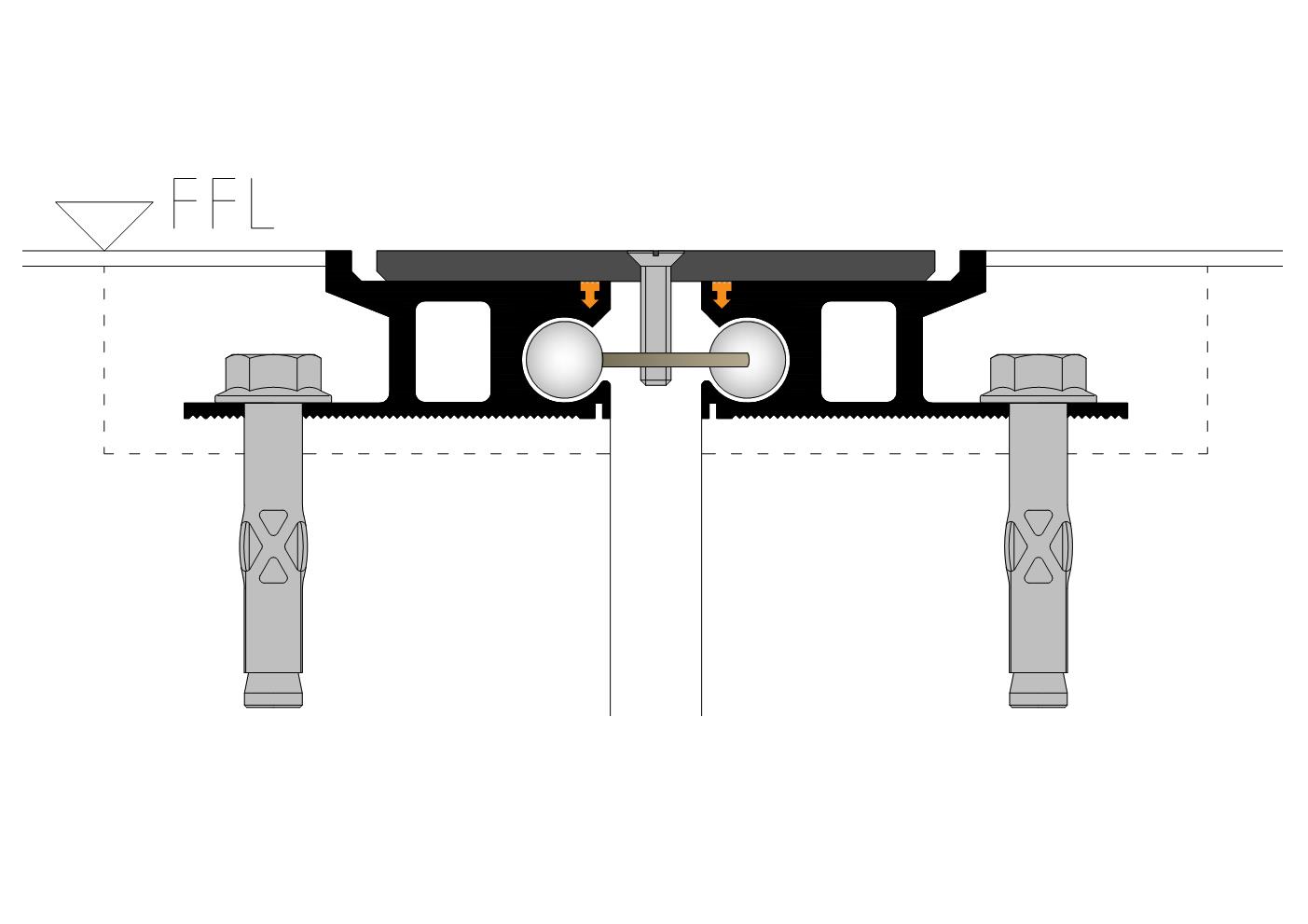

An Extra Heavy Duty floor coverplate system designed for use with heavy rolling traffic such as forklifts, pallet trolleys, scissor-lifts. Suitable for use in loading docks, back of house areas, bulky-goods retail trading-floors. Unique square-edge design minimises wheel impact, which promotes longevity. Accommodates multi-directional movement. ByC is normally supplied with high grade mill-finish alloy coverplates. But can be supplied with stainless steel, natural and colour-anodised aluminium, or bead-blasted coverplate. There is also an optional “T” bracket modification, for use in exposed agg, terrazzo, stone or paving.

Multi-directional Fire Rating Water Proof

Performance

  • Extra heavy duty
  • Concealed Fixings
  • Retrofit option
  • High Capacity\Bead blasted cover plate
  • Slip resistance Class V
  • Tested to AS4586 2013

Compatible Finishes

  • Tiles
  • Vinyl
  • Epoxy
  • Exposed Concrete

Standard Finish

Anodised

Length

4.8m

Cover Plates

Mill Finish Aluminium

Cover Plate Options

No Bump Bead Blasted

https://unisonjoints.com.au/wp-admin/post.php?post=421&action=edit#

Aluminium Coverplate

Stainless Steel Coverplate

By110-140C By110-140CS

High Profile System

Floor to Wall System

By110CT By CW
By140CT
